Here you will find all available parts and drawings of the 'Bosch 3601JE6000 (GSR14,4-2-LIPlus)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

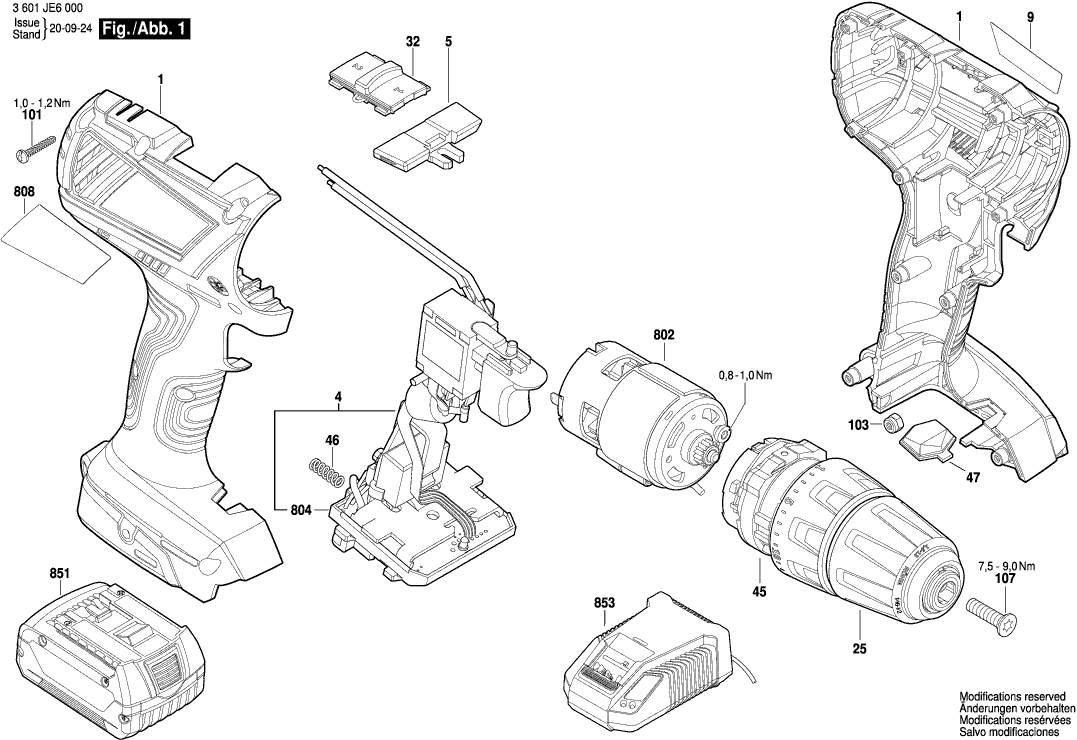

Technical drawing of model Bosch 3601JE6000 (GSR14,4-2-LIPlus)
Spare parts list of model Bosch 3601JE6000 (GSR14,4-2-LIPlus)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 2609101483 | 27.81 | 33.65 | |
| No information available, not orderable | ||||
| 4 | 160723359W | |||
| Adjusting lever | ||||
| 5 | 2609101484 | 2.08 | 2.52 | |
| Manufacturer's nameplate GSR 14,4-LI-2 Plus | ||||
| 9 | 2609136295 | 2.86 | 3.46 | |
| Keyless Chuck | ||||
| 25 | 2609111940 | 31.42 | 38.02 | |
| Switchover Unit | ||||
| 32 | 2609199812 | 2.40 | 2.90 | |
| Gear Box | ||||
| 45 | 1600A01VY4 | 21.30 | 25.77 | |
| Compression Spring | ||||
| 46 | 1609280477 | 1.49 | 1.80 | |
| Lens | ||||
| 47 | 2609101486 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 101 | 2609110353 | 2.08 | 2.52 | |
| Nut | ||||
| 103 | 2609110835 | 1.49 | 1.80 | |
| Countersunk-Head Screw | ||||
| 107 | 2603421229 | 1.49 | 1.80 | |
| DC motor | ||||
| 802 | 2609199840 | 50.23 | 60.78 | |
| Contact retainer | ||||
| 804 | 1609280474 | 13.13 | 15.89 | |
| Nameplate | ||||
| 808 | 2609138286 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 851 | 1607A350B9 | |||
| Fast Charger | ||||
| 853 | 2607226281 | 64.67 | 78.25 | |
