Here you will find all available parts and drawings of the 'Bosch 0601912520 ( GSR12VE-2 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

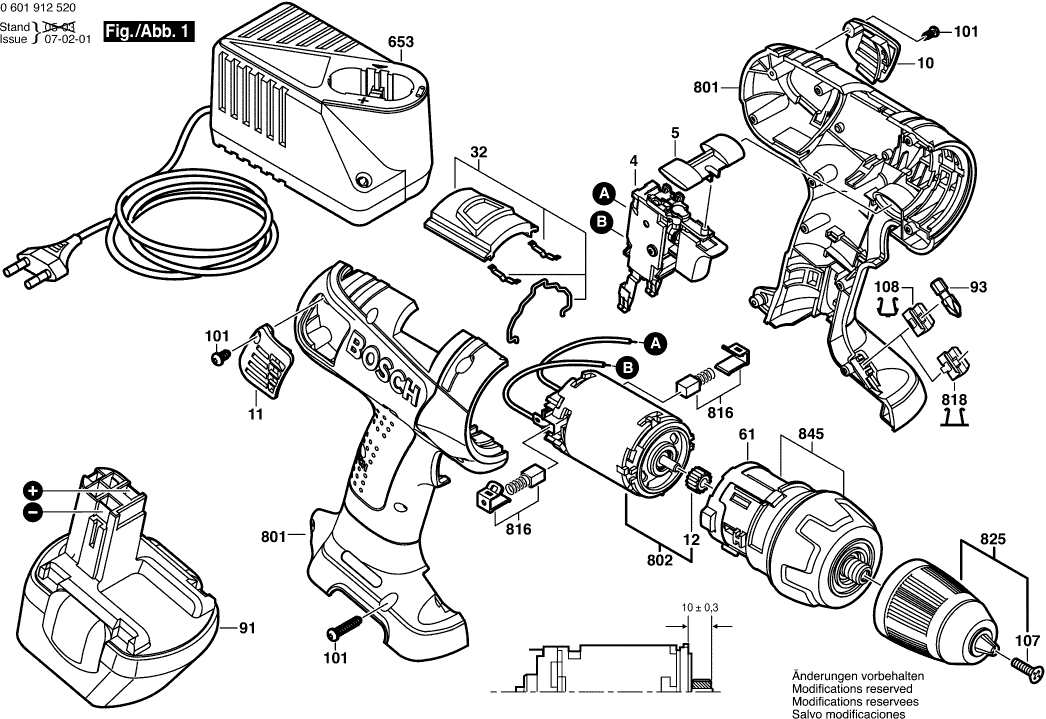

Technical drawing of model Bosch 0601912520 ( GSR12VE-2 )
Spare parts list of model Bosch 0601912520 ( GSR12VE-2 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| On-Off Switch | ||||
| 4 | 2607200456 | 55.25 | 66.85 | |
| Adjusting Slide RED | ||||
| 5 | 2601099112 | 1.94 | 2.35 | |
| Cover BLACK | ||||
| 10 | 2600508051 | 2.24 | 2.71 | |
| Cover BLACK | ||||
| 11 | 2600508052 | 2.24 | 2.71 | |
| Pinion | ||||
| 12 | 2606316222 | 5.33 | 6.45 | |
| Adjusting Slide | ||||
| 32 | 2601099127 | 3.31 | 4.01 | |
| Support | ||||
| 61 | 2608040190 | 7.58 | 9.17 | |
| Slide-In Battery Pack 12V,3,0Ah, NiMh | ||||
| 91 | 2607335691 | 271.34 | 328.32 | |
| Slide-In Accu Package 12V,2,6Ah,NiMh | ||||
| 91 | 2607335683 | 168.86 | 204.32 | |
| No longer available, no replacement | ||||
| 93 | 2607000366 | |||
| Torx Oval-Head Screw 3x18 | ||||
| 101 | 2603490018 | 0.83 | 1.00 | |
| Countersunk-Head Screw M6x23 LEFTHAND THREADS | ||||
| 107 | 2603421229 | 1.18 | 1.43 | |
| Spring Element | ||||
| 108 | 2604690035 | 0.83 | 1.00 | |
| Fast Charger EU 230/7,2-24V, 1h | ||||
| 653 | 2607224425 | 130.32 | 157.69 | |
| Fast Charger USA 120/7,2-24V, 1h | ||||
| 653 | 2607224431 | 130.32 | 157.69 | |
| Fast Charger ROK 220/7.2-24V, 1h | ||||
| 653 | 2607224437 | 101.94 | 123.35 | |
| Fast Charger EU 230/7,2-14,4V, 30 MIN. | ||||
| 653 | 2607224701 | 101.94 | 123.35 | |
| Fast Charger GB 230/7,2-14,4V, 30 MIN. | ||||
| 653 | 2607224703 | 101.94 | 123.35 | |
| Fast Charger GB 230/7,2-24V, 1h | ||||
| 653 | 2607224427 | 91.56 | 110.79 | |
| Fast Charger AUS 240/7,2-14,4V, 1h | ||||
| 653 | 2607224443 | 81.47 | 98.58 | |
| Housing Section BLUE | ||||
| 801 | 2605105907 | 40.61 | 49.14 | |
| DC motor 12V | ||||
| 802 | 2607022863 | 73.72 | 89.20 | |
| No longer available, no replacement | ||||
| 816 | 2607034904 | |||
| Spring Element | ||||
| 818 | 2604690026 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 825 | 2608572900 | |||
| Planetary Gear Train | ||||
| 845 | 2606200931 | 91.56 | 110.79 | |
