Here you will find all available parts and drawings of the 'Bosch 3601JE2000 ( GSR1080-2-LI )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

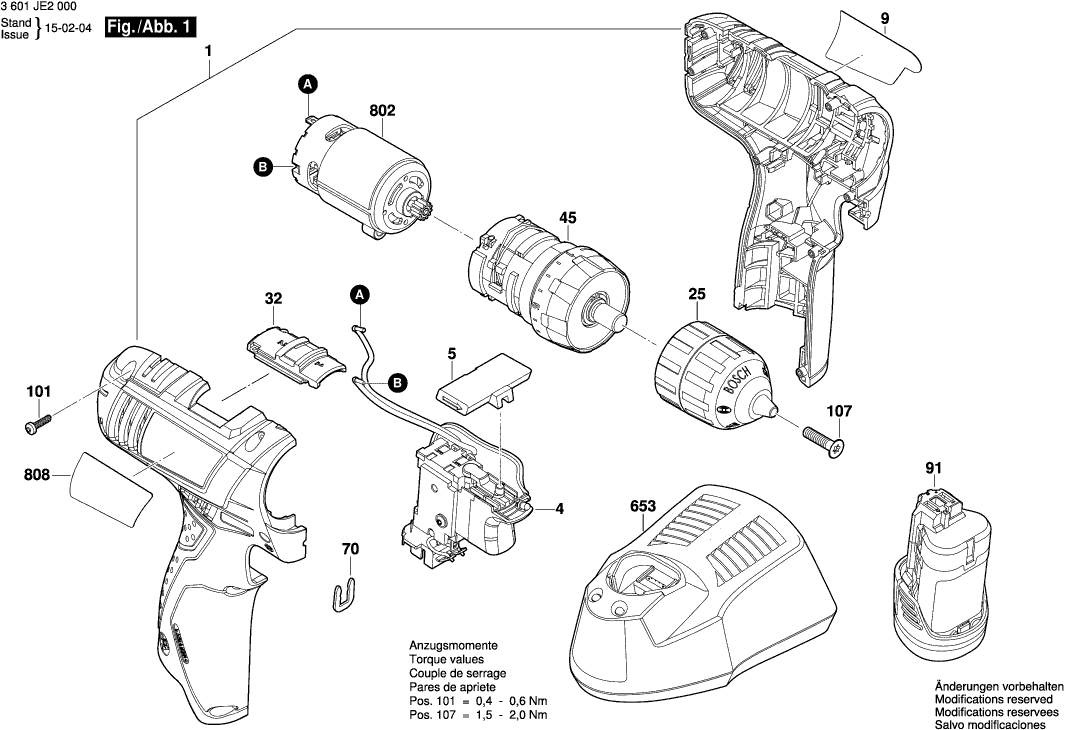

Technical drawing of model Bosch 3601JE2000 ( GSR1080-2-LI )
Spare parts list of model Bosch 3601JE2000 ( GSR1080-2-LI )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 2609101637 | 13.93 | 16.86 | |
| Electronics Module | ||||
| 4 | 2609199958 | 44.82 | 54.23 | |
| Adjusting lever | ||||
| 5 | 2609101391 | 0.83 | 1.00 | |
| Manufacturer's nameplate GSR 1080-2 LI | ||||
| 9 | 2609135324 | 1.94 | 2.35 | |
| Keyless Chuck Ø1,0-10 MM, 3/8 | ||||
| 25 | 2609110495 | 36.85 | 44.59 | |
| Switchover Unit | ||||
| 32 | 2609199754 | 1.18 | 1.43 | |
| Gear Box | ||||
| 45 | 2609199660 | 33.45 | 40.47 | |
| Clip | ||||
| 70 | 2609110838 | 0.83 | 1.00 | |
| Battery Pack GBA 12V 2.0Ah Li SCM | ||||
| 91 | 1607A350C5 | 55.25 | 66.85 | |
| Battery Pack | ||||
| 91 | 1607A350DY | 34.69 | 41.97 | |
| Screw | ||||
| 101 | 2609110883 | 1.70 | 2.06 | |
| Countersunk-Head Screw | ||||
| 107 | 2609111314 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 653 | 1600A00M6P | |||
| Motor Spare Parts Set 10,8V | ||||
| 802 | 2609199724 | 18.19 | 22.01 | |
| Nameplate | ||||
| 808 | 1600A00Z3E | 1.94 | 2.35 | |
| Nameplate | ||||
| 808 | 2609136347 | 1.84 | 2.23 | |
