Here you will find all available parts and drawings of the 'Bosch 3601JD4100 ( GSR10,8V-ECHX )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

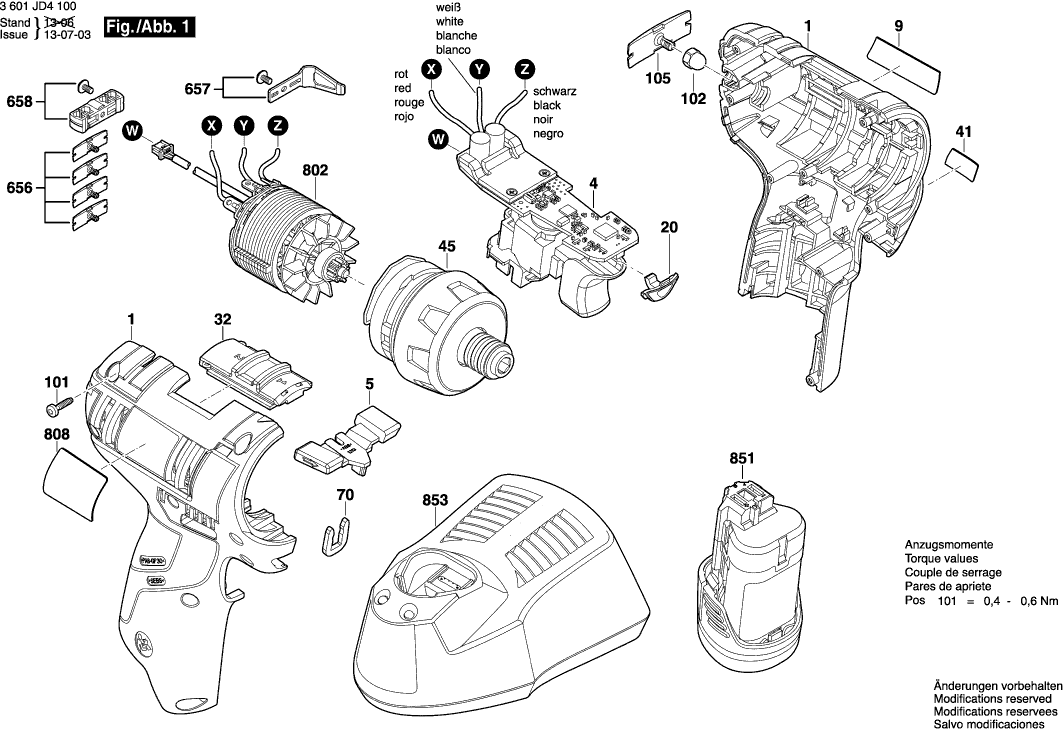

Technical drawing of model Bosch 3601JD4100 ( GSR10,8V-ECHX )
Spare parts list of model Bosch 3601JD4100 ( GSR10,8V-ECHX )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 2609101216 | 18.19 | 22.01 | |
| Electronic Module | ||||
| 4 | 16072335A0 | 81.47 | 98.58 | |
| Changeover Lever | ||||
| 5 | 2609101213 | 1.18 | 1.43 | |
| Manufacturer's nameplate GSR 10,8 V-EC HX | ||||
| 9 | 2609134565 | 1.94 | 2.35 | |
| Lens | ||||
| 20 | 2609101035 | 1.70 | 2.06 | |
| Switchover Unit | ||||
| 32 | 2609199279 | 0.83 | 1.00 | |
| Sticker | ||||
| 41 | 2609134053 | 1.94 | 2.35 | |
| Gear Box | ||||
| 45 | 2606200259 | 40.61 | 49.14 | |
| Clip | ||||
| 70 | 2609110537 | 1.18 | 1.43 | |
| Screw | ||||
| 101 | 2609110883 | 1.70 | 2.06 | |
| Cap Nut | ||||
| 102 | 2609111575 | 1.18 | 1.43 | |
| Color clip | ||||
| 105 | 2609101368 | 1.94 | 2.35 | |
| Color clip | ||||
| 656 | 2609199669 | 4.10 | 4.96 | |
| Clip | ||||
| 657 | 2609199670 | 6.54 | 7.91 | |
| Bit holder | ||||
| 658 | 2609199748 | 1.70 | 2.06 | |
| Brushless DC motor 10,8V | ||||
| 802 | 2609199654 | 44.82 | 54.23 | |
| Nameplate | ||||
| 808 | 2609135981 | 1.94 | 2.35 | |
| Battery Pack GBA 12V 3,0 Ah Li | ||||
| 851 | 1607A3506A | 73.72 | 89.20 | |
| Battery Pack GBA 12V 2.0Ah Li SCM | ||||
| 851 | 1607A350C5 | 55.25 | 66.85 | |
| Fast Charger UK AL1130CV 230V/12V/3A | ||||
| 853 | 2607225135 | 67.25 | 81.37 | |
| Fast Charger EU GAL 12V-40 | ||||
| 853 | 2607226219 | 46.67 | 56.47 | |
