Here you will find all available parts and drawings of the 'Bosch 3601J92200 ( GSR10,8V-LIQ )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

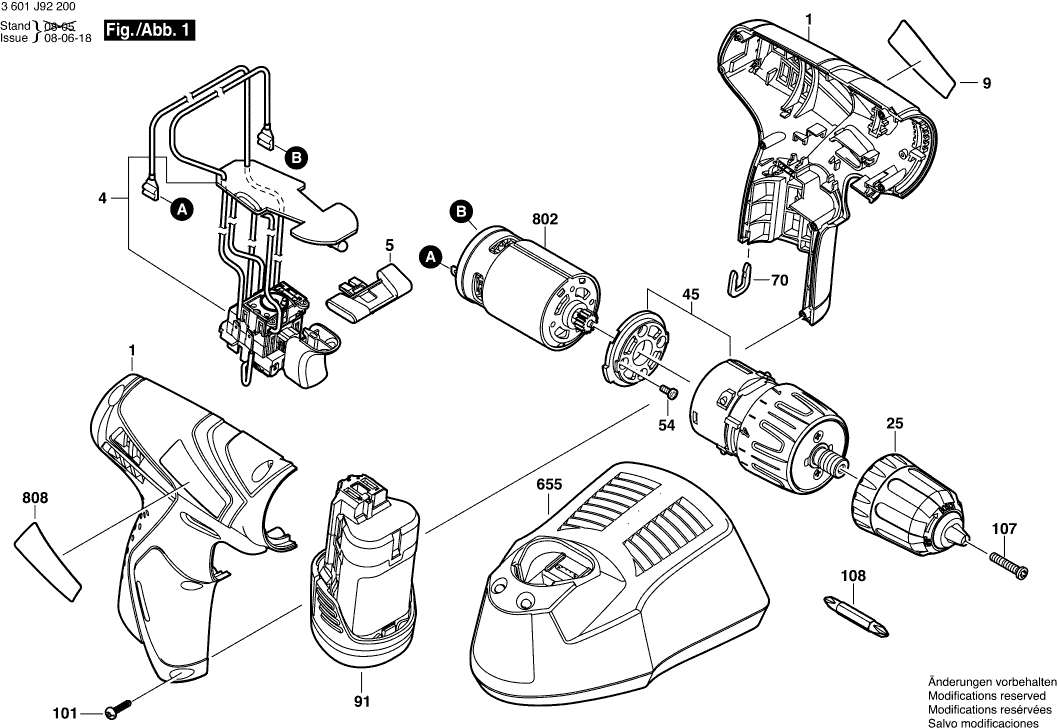

Technical drawing of model Bosch 3601J92200 ( GSR10,8V-LIQ )
Spare parts list of model Bosch 3601J92200 ( GSR10,8V-LIQ )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing BLUE | ||||
| 1 | 2609100564 | 15.71 | 19.01 | |
| Electronic Module | ||||
| 4 | 1607233352 | 49.56 | 59.97 | |
| Adjusting Slide RED | ||||
| 5 | 2601099153 | 1.18 | 1.43 | |
| Manufacturer's nameplate GSR 10,8V-LIQ | ||||
| 9 | 2609131670 | 1.94 | 2.35 | |
| Keyless Chuck | ||||
| 25 | 2609110798 | 36.85 | 44.59 | |
| Gear Box | ||||
| 45 | 2606200242 | 33.45 | 40.47 | |
| Torx SH cap screw M3x5-8.8-Z | ||||
| 54 | 2603414048 | 0.83 | 1.00 | |
| Clip | ||||
| 70 | 2609110537 | 1.18 | 1.43 | |
| Battery Pack GBA 12V 2.0Ah Li SCM | ||||
| 91 | 1607A350C5 | 55.25 | 66.85 | |
| Battery Pack ROK GBA 10,8V 2.0Ah O-B | ||||
| 91 | 1607A350C7 | 55.25 | 66.85 | |
| Battery Pack | ||||
| 91 | 1607A350DY | 34.69 | 41.97 | |
| Torx Oval-Head Screw | ||||
| 101 | 2603415206 | 0.83 | 1.00 | |
| Countersunk-Head Screw | ||||
| 107 | 2609110804 | 1.18 | 1.43 | |
| Screwdriver Bit | ||||
| 108 | 2609160063 | 2.71 | 3.28 | |
| Fast Charger UK AL1130CV 230V/12V/3A | ||||
| 655 | 2607225135 | 67.25 | 81.37 | |
| Fast Charger AUS 240/10,8V | ||||
| 655 | 2607225137 | 55.25 | 66.85 | |
| Fast Charger SAM 115/10,8V, 30 MIN. | ||||
| 655 | 2607225141 | 55.25 | 66.85 | |
| Fast Charger ROK 230/10,8V, 30 MIN. | ||||
| 655 | 2607225145 | 55.25 | 66.85 | |
| Fast Charger EU GAL 12V-40 | ||||
| 655 | 2607226219 | 46.67 | 56.47 | |
| DC motor 10,8V | ||||
| 802 | 2607022838 | 26.84 | 32.48 | |
| Nameplate | ||||
| 808 | 1600A00YC0 | 1.94 | 2.35 | |
| Nameplate | ||||
| 808 | 2609131672 | 1.84 | 2.23 | |
