Here you will find all available parts and drawings of the 'Bosch 3601H68000 ( GSR10,8V-LI-2 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

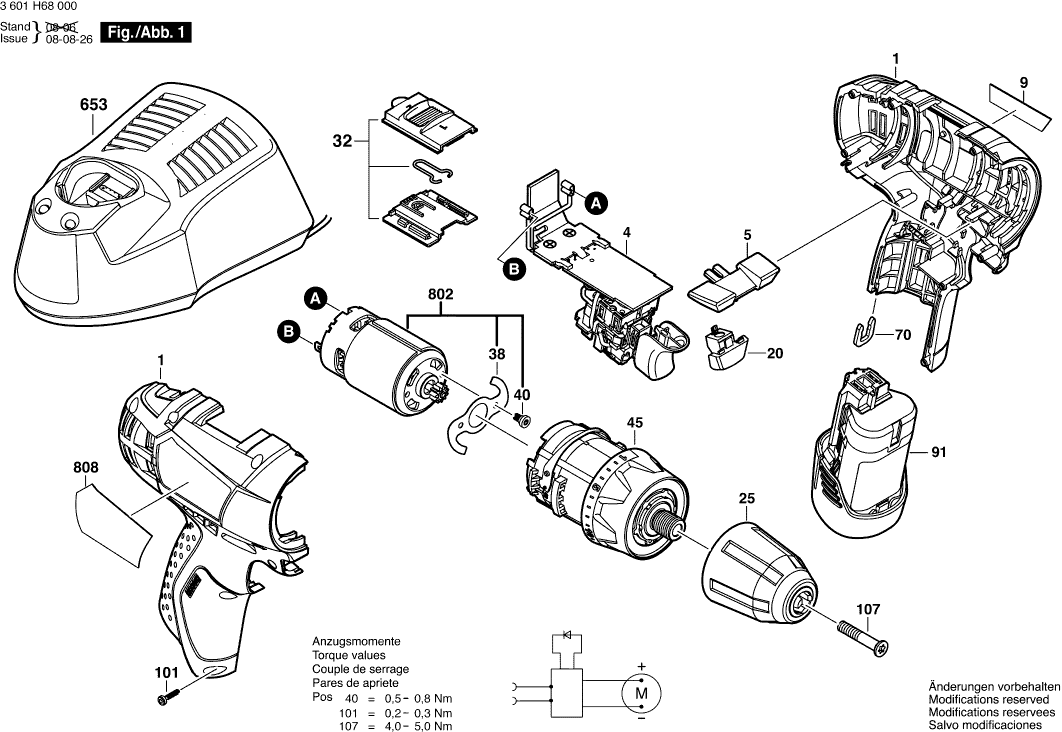

Technical drawing of model Bosch 3601H68000 ( GSR10,8V-LI-2 )
Spare parts list of model Bosch 3601H68000 ( GSR10,8V-LI-2 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing BLUE | ||||
| 1 | 2609100666 | 15.71 | 19.01 | |
| Electronics Module | ||||
| 4 | 1607233508 | 49.56 | 59.97 | |
| Button | ||||
| 5 | 2609100665 | 1.70 | 2.06 | |
| Manufacturer's nameplate GSR 10,8 V-LI-2 | ||||
| 9 | 2609131731 | 1.94 | 2.35 | |
| Light Guide | ||||
| 20 | 2609100664 | 1.70 | 2.06 | |
| Keyless Chuck 10 MM | ||||
| 25 | 2609110799 | 23.75 | 28.74 | |
| Slide Switch | ||||
| 32 | 2609199119 | 2.24 | 2.71 | |
| Tab Washer | ||||
| 38 | 2609110801 | 1.70 | 2.06 | |
| Screw | ||||
| 40 | 2609110802 | 0.83 | 1.00 | |
| Gear Box | ||||
| 45 | 2609199298 | 55.25 | 66.85 | |
| Clip | ||||
| 70 | 2609110537 | 1.18 | 1.43 | |
| Battery Pack GBA 12V 2.0Ah Li SCM | ||||
| 91 | 1607A350C5 | 55.25 | 66.85 | |
| Battery Pack | ||||
| 91 | 1607A350DY | 34.69 | 41.97 | |
| Screw | ||||
| 101 | 2609110883 | 1.70 | 2.06 | |
| Pan head screw M 6x30 | ||||
| 107 | 2609110635 | 1.18 | 1.43 | |
| Fast Charger UK AL1130CV 230V/12V/3A | ||||
| 653 | 2607225135 | 67.25 | 81.37 | |
| Fast Charger EU GAL 12V-40 | ||||
| 653 | 2607226219 | 46.67 | 56.47 | |
| Fast Charger GB AL 1115 CV 230/3,6-12V, 1h | ||||
| 653 | 2607225515 | 44.82 | 54.23 | |
| Fast Charger EU GAL 12V-20 230/3,6-12V 2A | ||||
| 653 | 2607226187 | 26.84 | 32.48 | |
| DC motor 10,8V | ||||
| 802 | 2609199177 | 36.85 | 44.59 | |
| Nameplate | ||||
| 808 | 2609135727 | 1.94 | 2.35 | |
