Here you will find all available parts and drawings of the 'Bosch 3601D91000 ( GSN90-21RK )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

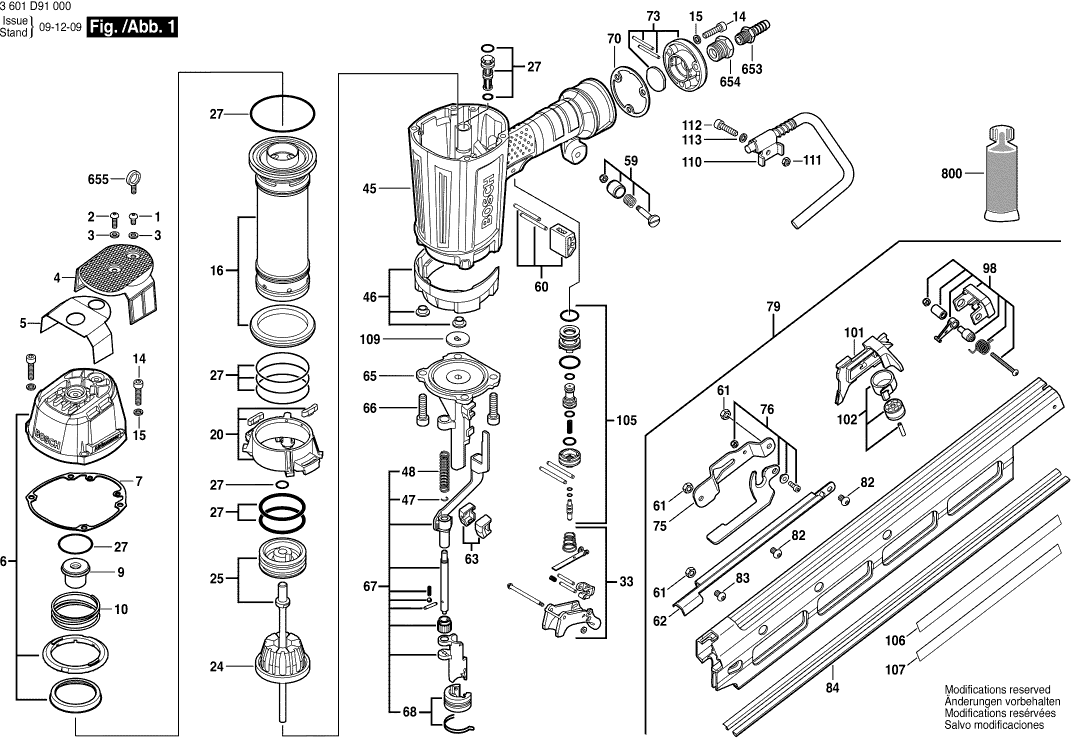

Technical drawing of model Bosch 3601D91000 ( GSN90-21RK )
Spare parts list of model Bosch 3601D91000 ( GSN90-21RK )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Screw | ||||
| 1 | 2610001663 | 1.18 | 1.43 | |
| Screw | ||||
| 2 | 2610001664 | 0.83 | 1.00 | |
| Washer | ||||
| 3 | 2610001665 | 0.83 | 1.00 | |
| Cover Plate | ||||
| 4 | 2610001666 | 23.75 | 28.74 | |
| mat seal | ||||
| 5 | 2610001667 | 5.33 | 6.45 | |
| Cylinder Cover | ||||
| 6 | 2610001668 | 67.25 | 81.37 | |
| mat seal | ||||
| 7 | 2610001669 | 12.41 | 15.02 | |
| Bumper | ||||
| 9 | 2610001670 | 5.83 | 7.05 | |
| Compression Spring | ||||
| 10 | 2610001671 | 4.10 | 4.96 | |
| Screw | ||||
| 14 | 2610001673 | 1.94 | 2.35 | |
| Washer | ||||
| 15 | 2610001674 | 1.70 | 2.06 | |
| Piston Cylinder | ||||
| 16 | 2610001675 | 101.94 | 123.35 | |
| Cylinder Support | ||||
| 20 | 2610001676 | 15.71 | 19.01 | |
| Bumper | ||||
| 24 | 2610001677 | 49.56 | 59.97 | |
| Piston | ||||
| 25 | 2610001678 | 130.32 | 157.69 | |
| O-Ring | ||||
| 27 | 2610001679 | 15.71 | 19.01 | |
| Trigger | ||||
| 33 | 2610001680 | 15.71 | 19.01 | |
| Housing | ||||
| 45 | 2610001682 | 148.65 | 179.87 | |
| Cover | ||||
| 46 | 2610001683 | 20.42 | 24.71 | |
| Spring Clip | ||||
| 47 | 2610001684 | 0.83 | 1.00 | |
| Coil Spring | ||||
| 48 | 2610001685 | 1.70 | 2.06 | |
| Hub | ||||
| 59 | 2610001686 | 13.93 | 16.86 | |
| Guide Block | ||||
| 60 | 2610001687 | 5.33 | 6.45 | |
| Lock Nut | ||||
| 61 | 2610001688 | 0.83 | 1.00 | |
| magazine cover | ||||
| 62 | 2610001689 | 12.41 | 15.02 | |
| Rubber Pad | ||||
| 63 | 2610001690 | 5.33 | 6.45 | |
| Nose | ||||
| 65 | 2610001691 | 130.32 | 157.69 | |
| Screw | ||||
| 66 | 2610001692 | 1.94 | 2.35 | |
| Safety Lever | ||||
| 67 | 2610001693 | 67.25 | 81.37 | |
| Protective Guard | ||||
| 68 | 2610001694 | 5.33 | 6.45 | |
| mat seal | ||||
| 70 | 2610001695 | 3.31 | 4.01 | |
| End cap | ||||
| 73 | 2610001696 | 20.42 | 24.71 | |
| Mounting Bracket | ||||
| 75 | 2610001697 | 6.54 | 7.91 | |
| Release Lever | ||||
| 76 | 2610001698 | 13.93 | 16.86 | |
| Assembly | ||||
| 79 | 2610001699 | 271.34 | 328.32 | |
| Screw | ||||
| 82 | 2610001700 | 0.83 | 1.00 | |
| Safety Lever | ||||
| 83 | 2610001701 | 1.18 | 1.43 | |
| Wearing Strip | ||||
| 84 | 2610001702 | 15.71 | 19.01 | |
| Screw | ||||
| 98 | 2610001703 | 23.75 | 28.74 | |
| Screw | ||||
| 101 | 2610001704 | 29.75 | 36.00 | |
| Follower Spring | ||||
| 102 | 2610001705 | 13.93 | 16.86 | |
| Trigger | ||||
| 105 | 2610001706 | 12.41 | 15.02 | |
| Warning Label | ||||
| 106 | 1601118S43 | 1.94 | 2.35 | |
| Nameplate | ||||
| 107 | 1601118S57 | 1.94 | 2.35 | |
| Lead-Seal Plate | ||||
| 109 | 2610004499 | 1.94 | 2.35 | |
| Hook | ||||
| 110 | 2610008549 | 13.93 | 16.86 | |
| Lock Nut | ||||
| 111 | 2610005245 | 0.83 | 1.00 | |
| Screw | ||||
| 112 | 2610006326 | 0.83 | 1.00 | |
| Washer | ||||
| 113 | 2610005312 | 0.83 | 1.00 | |
| Fitting | ||||
| 653 | 1600A00080 | 6.54 | 7.91 | |
| Eye Bolt | ||||
| 655 | 2610011088 | 4.70 | 5.69 | |
| Grease | ||||
| 800 | 2610005257 | 5.83 | 7.05 | |
