Here you will find all available parts and drawings of the 'Bosch 0601277103 (GSM200)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

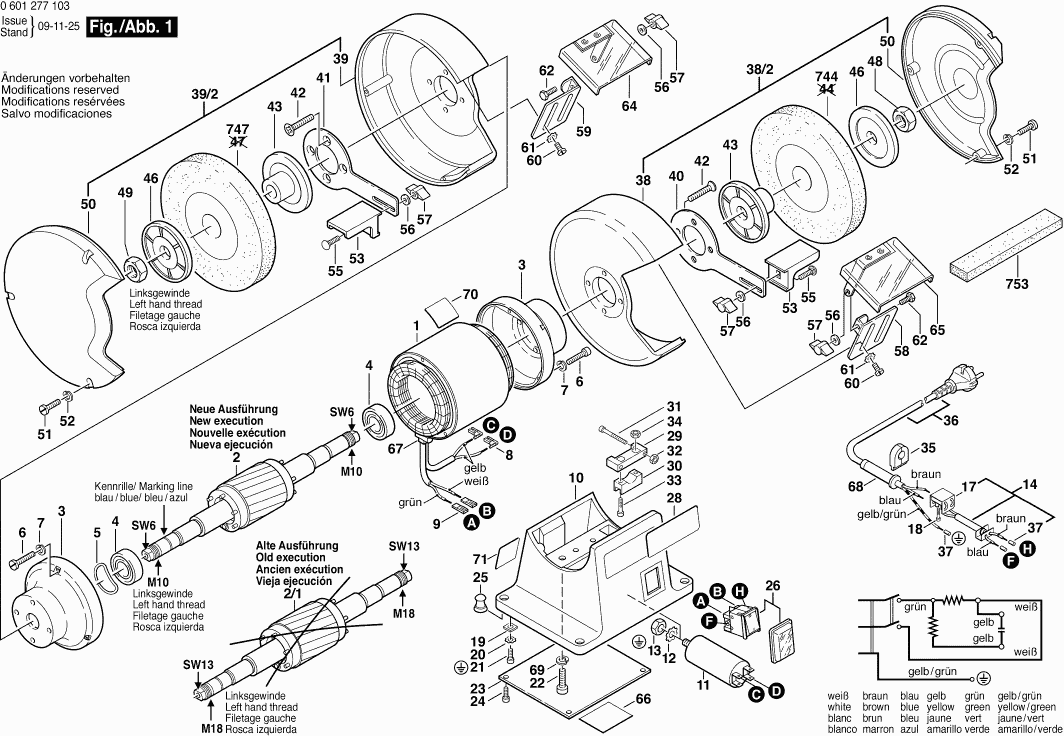

Technical drawing of model Bosch 0601277103 (GSM200)
Spare parts list of model Bosch 0601277103 (GSM200)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Stator | ||||
| 1 | 1609203305 | 114.26 | 138.25 | |
| Rotor | ||||
| 2 | 1609203620 | 65.16 | 78.84 | |
| End Shield | ||||
| 3 | 1609203298 | 20.39 | 24.67 | |
| groove ball bearing | ||||
| 4 | 1900905124 | 64.67 | 78.25 | |
| Corrugated Washer | ||||
| 5 | 1609203230 | 1.32 | 1.60 | |
| Socket head cap screw | ||||
| 6 | 2910011166 | 1.00 | 1.21 | |
| Spring Lock Washer | ||||
| 7 | 2916690004 | 1.50 | 1.82 | |
| Insulating Sleeve | ||||
| 8 | 1609203231 | 1.32 | 1.60 | |
| End Splice | ||||
| 9 | 1609203247 | 1.24 | 1.50 | |
| Base Plate | ||||
| 10 | 1609203226 | 33.33 | 40.33 | |
| Motor Capacitor | ||||
| 11 | 1609203277 | 12.21 | 14.77 | |
| Toothed lock washer | ||||
| 12 | 2916040008 | 0.83 | 1.00 | |
| Hex Nut | ||||
| 13 | 2915011009 | 2.40 | 2.90 | |
| Connecting Cable | ||||
| 14 | 1609203235 | 2.52 | 3.05 | |
| Socket-Terminal Strip | ||||
| 17 | 1901091001 | 1.24 | 1.50 | |
| Socket head cap screw | ||||
| 18 | 2910011058 | 0.83 | 1.00 | |
| Clamping Plate | ||||
| 19 | 1609203238 | 1.32 | 1.60 | |
| Toothed lock washer | ||||
| 20 | 2916030006 | 1.00 | 1.21 | |
| Socket head cap screw | ||||
| 21 | 2910001118 | 0.83 | 1.00 | |
| Hex Socket Head Cap Screw | ||||
| 22 | 2910141197 | 1.44 | 1.74 | |
| Base Plate | ||||
| 23 | 1609203239 | 4.58 | 5.54 | |
| Socket head cap screw | ||||
| 24 | 2910011120 | 1.00 | 1.21 | |
| Rubber Base | ||||
| 25 | 1609203240 | 1.32 | 1.60 | |
| No longer available, no replacement | ||||
| 26 | 1609203241 | |||
| Manufacturer's nameplate | ||||
| 28 | 1601118395 | 2.18 | 2.64 | |
| Clamping Plate | ||||
| 29 | 1609203243 | 1.32 | 1.60 | |
| Clamping Plate | ||||
| 30 | 1609203244 | 1.24 | 1.50 | |
| Socket head cap screw | ||||
| 31 | 2910011064 | 1.24 | 1.50 | |
| Hex Nut | ||||
| 32 | 2915011003 | 1.00 | 1.21 | |
| Socket head cap screw | ||||
| 33 | 2910021130 | 1.00 | 1.21 | |
| Hex Nut | ||||
| 34 | 2915011005 | 1.00 | 1.21 | |
| Cable Passage | ||||
| 35 | 1609203245 | 1.32 | 1.60 | |
| Power supply cord | ||||
| 36 | 1609203246 | 17.60 | 21.30 | |
| End Splice | ||||
| 37 | 1609203247 | 1.24 | 1.50 | |
| Protective Cover | ||||
| 38 | 1609203642 | 55.56 | 67.23 | |
| Protective Cover | ||||
| 38 | 1609203278 | 41.30 | 49.97 | |
| Protective Cover | ||||
| 38/2 | 1609203643 | 45.52 | 55.08 | |
| Protective Cover | ||||
| 39 | 1609203644 | 55.56 | 67.23 | |
| Protective Cover | ||||
| 39 | 1609203279 | 41.30 | 49.97 | |
| Protective Cover | ||||
| 39/2 | 1609203645 | 55.56 | 67.23 | |
| Connecting Carrier | ||||
| 40 | 1609203280 | 3.04 | 3.68 | |
| Connecting Carrier | ||||
| 41 | 1609203281 | 4.58 | 5.54 | |
| Countersunk-Head Screw | ||||
| 42 | 2912341203 | 1.00 | 1.21 | |
| Clamping Flange | ||||
| 43 | 1609203252 | 6.53 | 7.90 | |
| Counterflange | ||||
| 46 | 1609203640 | 5.96 | 7.21 | |
| Counterflange | ||||
| 46 | 1609203253 | 5.27 | 6.38 | |
| Hex Nut | ||||
| 48 | 2915011010 | 1.49 | 1.80 | |
| Hex Nut | ||||
| 48 | 2915011014 | 1.00 | 1.21 | |
| Hex Nut | ||||
| 49 | 1609203621 | 1.32 | 1.60 | |
| Hex Nut | ||||
| 49 | 1609203299 | 1.32 | 1.60 | |
| Lateral Guard | ||||
| 50 | 1609203647 | 61.93 | 74.94 | |
| Lateral Guard | ||||
| 50 | 1609203282 | 25.28 | 30.59 | |
| Socket head cap screw | ||||
| 51 | 2910021126 | 1.00 | 1.21 | |
| Spring Lock Washer | ||||
| 52 | 2916681005 | 1.00 | 1.21 | |
| Support Plate | ||||
| 53 | 1609203300 | 6.53 | 7.90 | |
| Round-Head Bolt | ||||
| 55 | 2910281201 | 1.00 | 1.21 | |
| Plain Washer | ||||
| 56 | 2916011013 | 1.00 | 1.21 | |
| Wing Nut | ||||
| 57 | 1609203258 | 2.52 | 3.05 | |
| Guard Plate | ||||
| 58 | 1609203259 | 5.96 | 7.21 | |
| Guard Plate | ||||
| 59 | 1609203260 | 1.90 | 2.30 | |
| No longer available, no replacement | ||||
| 60 | 2910021152 | |||
| No longer available, no replacement | ||||
| 61 | 2916060006 | |||
| Hex Screw | ||||
| 62 | 2911051195 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 64 | 1609203261 | |||
| No longer available, no replacement | ||||
| 65 | 1609203295 | |||
| Reference Plate | ||||
| 66 | 1601118386 | 3.04 | 3.68 | |
| Seal | ||||
| 67 | 1609203293 | 1.24 | 1.50 | |
| Grommet | ||||
| 68 | 1609203296 | 1.32 | 1.60 | |
| No longer available, no replacement | ||||
| 69 | 2916690005 | |||
| Reference Plate | ||||
| 70 | 1601118388 | 3.04 | 3.68 | |
| Nameplate | ||||
| 71 | 1601118392 | 2.18 | 2.64 | |
| Grinding Wheel | ||||
| 744 | 2608600106 | 0.83 | 1.00 | |
| Grinding Wheel | ||||
| 744 | 2608600111 | 0.83 | 1.00 | |
| Grinding Wheel | ||||
| 747 | 2608600112 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 753 | 1607929000 | |||
