Here you will find all available parts and drawings of the 'Bosch 3601D91902 ( GSK64-34 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

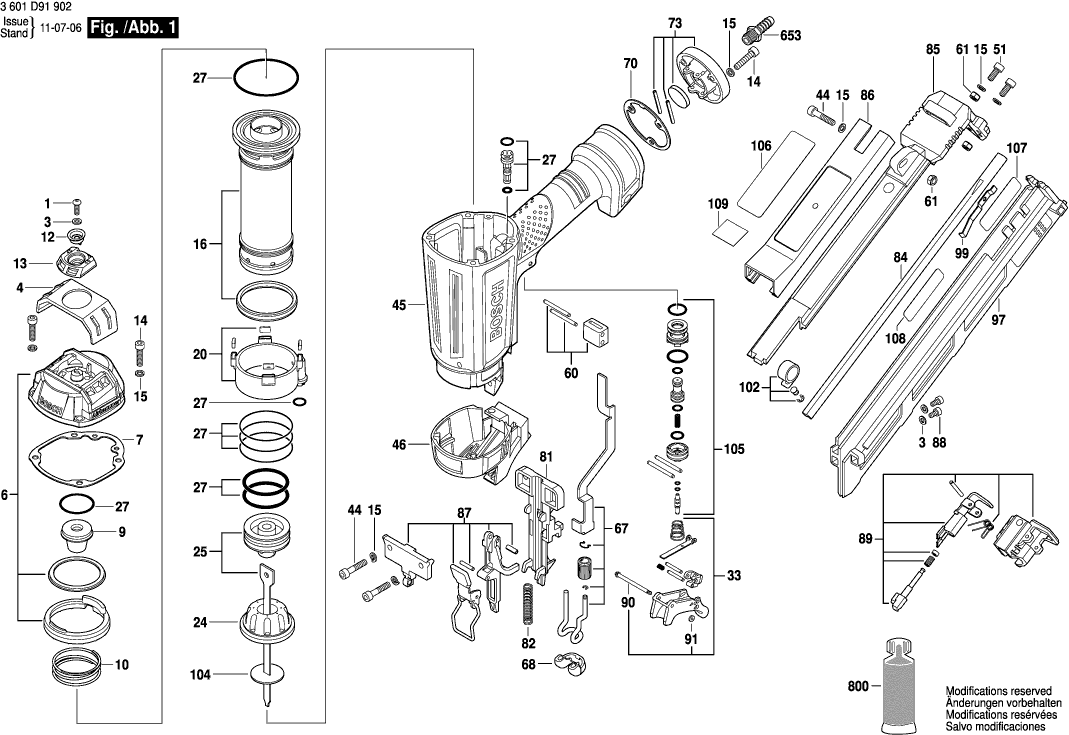

Technical drawing of model Bosch 3601D91902 ( GSK64-34 )
Spare parts list of model Bosch 3601D91902 ( GSK64-34 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Screw | ||||
| 1 | 2610005299 | 0.83 | 1.00 | |
| Washer | ||||
| 3 | 2610005300 | 0.83 | 1.00 | |
| Cover Plate | ||||
| 4 | 2610005301 | 4.70 | 5.69 | |
| Cylinder Cover | ||||
| 6 | 2610005303 | 49.56 | 59.97 | |
| mat seal | ||||
| 7 | 2610005305 | 7.58 | 9.17 | |
| Shock Absorber | ||||
| 9 | 2610005307 | 7.58 | 9.17 | |
| Coil Spring | ||||
| 10 | 2610005308 | 5.33 | 6.45 | |
| Spacer Bushing | ||||
| 12 | 2610005309 | 6.54 | 7.91 | |
| Cover | ||||
| 13 | 2610005310 | 4.10 | 4.96 | |
| Screw | ||||
| 14 | 2610005311 | 0.83 | 1.00 | |
| Washer | ||||
| 15 | 2610005312 | 0.83 | 1.00 | |
| Piston Cylinder | ||||
| 16 | 2610005313 | 73.72 | 89.20 | |
| Cylinder Support | ||||
| 20 | 2610005314 | 13.93 | 16.86 | |
| Shock Absorber | ||||
| 24 | 2610005315 | 33.45 | 40.47 | |
| Piston | ||||
| 25 | 2610005316 | 40.61 | 49.14 | |
| O-Ring | ||||
| 27 | 2610005317 | 20.42 | 24.71 | |
| Triggering Rod | ||||
| 33 | 2610005318 | 11.88 | 14.37 | |
| Screw | ||||
| 44 | 2610005319 | 0.83 | 1.00 | |
| Housing | ||||
| 45 | 2610005320 | 113.29 | 137.08 | |
| Cover | ||||
| 46 | 2610005321 | 10.73 | 12.98 | |
| Screw | ||||
| 51 | 2610005322 | 0.83 | 1.00 | |
| Guide Block | ||||
| 60 | 2610005323 | 3.31 | 4.01 | |
| Lock Nut | ||||
| 61 | 2610005245 | 0.83 | 1.00 | |
| Safety Lever | ||||
| 67 | 2610005324 | 49.56 | 59.97 | |
| Protective Guard | ||||
| 68 | 2610005325 | 2.24 | 2.71 | |
| mat seal | ||||
| 70 | 2610005326 | 1.70 | 2.06 | |
| End cap | ||||
| 73 | 2610005327 | 23.75 | 28.74 | |
| Nose | ||||
| 81 | 2610005328 | 91.56 | 110.79 | |
| Coil Spring | ||||
| 82 | 2610005330 | 1.70 | 2.06 | |
| Wearing Strip | ||||
| 84 | 2610005331 | 12.41 | 15.02 | |
| nail cartridge | ||||
| 85 | 2610005332 | 20.42 | 24.71 | |
| nail cartridge | ||||
| 86 | 2610005333 | 12.41 | 15.02 | |
| Nose | ||||
| 87 | 2610005334 | 81.47 | 98.58 | |
| Screw | ||||
| 88 | 2610005335 | 1.18 | 1.43 | |
| Feeder Block | ||||
| 89 | 2610005336 | 40.61 | 49.14 | |
| Pin | ||||
| 90 | 2610005337 | 1.70 | 2.06 | |
| O-Ring | ||||
| 91 | 2610005338 | 0.83 | 1.00 | |
| nail cartridge | ||||
| 97 | 2610005339 | 20.42 | 24.71 | |
| Coil Spring | ||||
| 99 | 2610005340 | 1.70 | 2.06 | |
| Coil Spring | ||||
| 102 | 2610005341 | 5.33 | 6.45 | |
| Lead-Seal Plate | ||||
| 104 | 2610005342 | 1.70 | 2.06 | |
| Compression Spring | ||||
| 105 | 2610005343 | 11.88 | 14.37 | |
| Nameplate | ||||
| 106 | 2610015522 | 1.94 | 2.35 | |
| Warning Label | ||||
| 107 | 2610015523 | 1.94 | 2.35 | |
| Warning Label | ||||
| 108 | 2610005346 | 2.71 | 3.28 | |
| Shuttle Valve | ||||
| 109 | 2610005264 | 1.94 | 2.35 | |
| Fitting | ||||
| 653 | 1600A00079 | 5.83 | 7.05 | |
| Grease | ||||
| 800 | 2610005257 | 5.83 | 7.05 | |
