Here you will find all available parts and drawings of the 'Bosch 3601D80300 ( GSK18V-LI )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

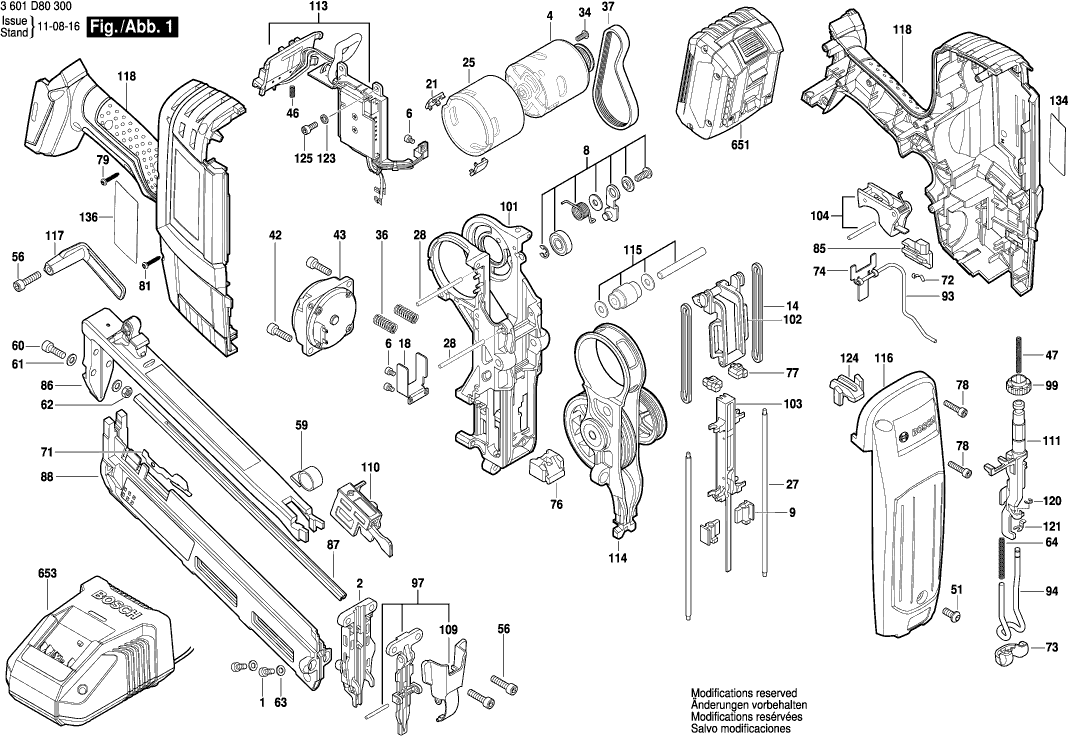

Technical drawing of model Bosch 3601D80300 ( GSK18V-LI )
Spare parts list of model Bosch 3601D80300 ( GSK18V-LI )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Screw | ||||
| 1 | 2610006628 | 0.83 | 1.00 | |
| Nose | ||||
| 2 | 2610009742 | 44.82 | 54.23 | |
| DC motor | ||||
| 4 | 2610009780 | 67.25 | 81.37 | |
| Screw | ||||
| 6 | 2610009743 | 0.83 | 1.00 | |
| Belt Tightening Roller | ||||
| 8 | 2610009782 | 23.75 | 28.74 | |
| Guide Sleeve | ||||
| 9 | 2610009752 | 1.94 | 2.35 | |
| Rubber band | ||||
| 14 | 2610009744 | 3.31 | 4.01 | |
| Wear Plate | ||||
| 18 | 2610009745 | 4.70 | 5.69 | |
| Brush-Cover | ||||
| 21 | 2610009746 | 1.94 | 2.35 | |
| Sleeve | ||||
| 25 | 2610009747 | 12.41 | 15.02 | |
| Guide Rail | ||||
| 27 | 2610009783 | 3.31 | 4.01 | |
| Pin | ||||
| 28 | 2610009789 | 1.94 | 2.35 | |
| Screw | ||||
| 34 | 2610009748 | 0.83 | 1.00 | |
| Compression Spring | ||||
| 36 | 2610009749 | 1.70 | 2.06 | |
| Toothed Belt | ||||
| 37 | 2610009750 | 20.42 | 24.71 | |
| Screw | ||||
| 42 | 2610009751 | 0.83 | 1.00 | |
| Solenoid | ||||
| 43 | 2610009740 | 73.72 | 89.20 | |
| Compression Spring | ||||
| 46 | 2610009753 | 1.70 | 2.06 | |
| Compression Spring | ||||
| 47 | 2610009754 | 1.70 | 2.06 | |
| Screw | ||||
| 51 | 2610005252 | 0.83 | 1.00 | |
| Screw | ||||
| 56 | 2610005311 | 0.83 | 1.00 | |
| Coiled Spring | ||||
| 59 | 2610009755 | 2.24 | 2.71 | |
| Screw | ||||
| 60 | 2610005357 | 0.83 | 1.00 | |
| Washer | ||||
| 61 | 2610009756 | 0.83 | 1.00 | |
| Lock Nut | ||||
| 62 | 2610005245 | 0.83 | 1.00 | |
| Washer | ||||
| 63 | 2610005300 | 0.83 | 1.00 | |
| Compression Spring | ||||
| 64 | 2610009757 | 1.18 | 1.43 | |
| Coil Spring | ||||
| 71 | 2610005340 | 1.70 | 2.06 | |
| Leaf Spring | ||||
| 72 | 2610009758 | 3.31 | 4.01 | |
| Protective Guard | ||||
| 73 | 2610005325 | 2.24 | 2.71 | |
| Slide Plate | ||||
| 74 | 2610009759 | 4.10 | 4.96 | |
| Shock Absorber | ||||
| 76 | 2610009760 | 2.71 | 3.28 | |
| Shock Absorber | ||||
| 77 | 2610009761 | 1.70 | 2.06 | |
| Screw | ||||
| 78 | 2610009762 | 0.83 | 1.00 | |
| Screw | ||||
| 79 | 2610009778 | 1.18 | 1.43 | |
| Screw | ||||
| 81 | 2610009763 | 0.83 | 1.00 | |
| Locking Lever | ||||
| 85 | 2610009764 | 8.45 | 10.22 | |
| nail cartridge | ||||
| 86 | 2610009765 | 11.88 | 14.37 | |
| Rail | ||||
| 87 | 2610009802 | 8.45 | 10.22 | |
| nail cartridge | ||||
| 88 | 2610009766 | 20.42 | 24.71 | |
| Lever | ||||
| 93 | 2610009767 | 5.83 | 7.05 | |
| Safety Lever | ||||
| 94 | 2610009768 | 8.45 | 10.22 | |
| Nose | ||||
| 97 | 2610009787 | 40.61 | 49.14 | |
| Thumbwheel | ||||
| 99 | 2610009769 | 3.31 | 4.01 | |
| Frame | ||||
| 101 | 2610009781 | 60.65 | 73.39 | |
| Support Frame | ||||
| 102 | 2610009790 | 3.31 | 4.01 | |
| Contact Block | ||||
| 103 | 2610009770 | 168.86 | 204.32 | |
| Triggering Rod | ||||
| 104 | 2610009785 | 12.41 | 15.02 | |
| Nose | ||||
| 109 | 2610009786 | 12.41 | 15.02 | |
| Feeder Block | ||||
| 110 | 2610009771 | 15.71 | 19.01 | |
| Adjusting lever | ||||
| 111 | 2610009772 | 44.82 | 54.23 | |
| No longer available, no replacement | ||||
| 113 | 2610009739 | |||
| Lever Arm | ||||
| 114 | 2610009773 | 101.94 | 123.35 | |
| Needle-Roller Assembly | ||||
| 115 | 2610009784 | 36.85 | 44.59 | |
| Metal Cap | ||||
| 116 | 2610009774 | 44.82 | 54.23 | |
| Belt holder clip | ||||
| 117 | 2610009775 | 4.10 | 4.96 | |
| Housing Set | ||||
| 118 | 2610009788 | 73.72 | 89.20 | |
| Retaining ring | ||||
| 120 | 2610009776 | 0.83 | 1.00 | |
| Retaining ring | ||||
| 121 | 2610009777 | 3.31 | 4.01 | |
| Washer | ||||
| 123 | 2610009803 | 1.18 | 1.43 | |
| Shock Absorber | ||||
| 124 | 2610009805 | 1.94 | 2.35 | |
| Screw | ||||
| 125 | 2610009804 | 0.83 | 1.00 | |
| Content Label | ||||
| 134 | 2610009792 | 1.94 | 2.35 | |
| Nameplate | ||||
| 136 | 2610009796 | 1.94 | 2.35 | |
| Battery Pack 18V 3.0Ah Li SCM | ||||
| 651 | 1607A350B2 | 91.56 | 110.79 | |
| Charger GB 230/10,8-18V, 30 42 S | ||||
| 653 | 2607225923 | 113.29 | 137.08 | |
| Charger EU 230/14,4-18V, 30 40 S | ||||
| 653 | 2607225321 | 55.25 | 66.85 | |
