Here you will find all available parts and drawings of the 'Bosch 3601HB1000 ( GSI14-CE )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

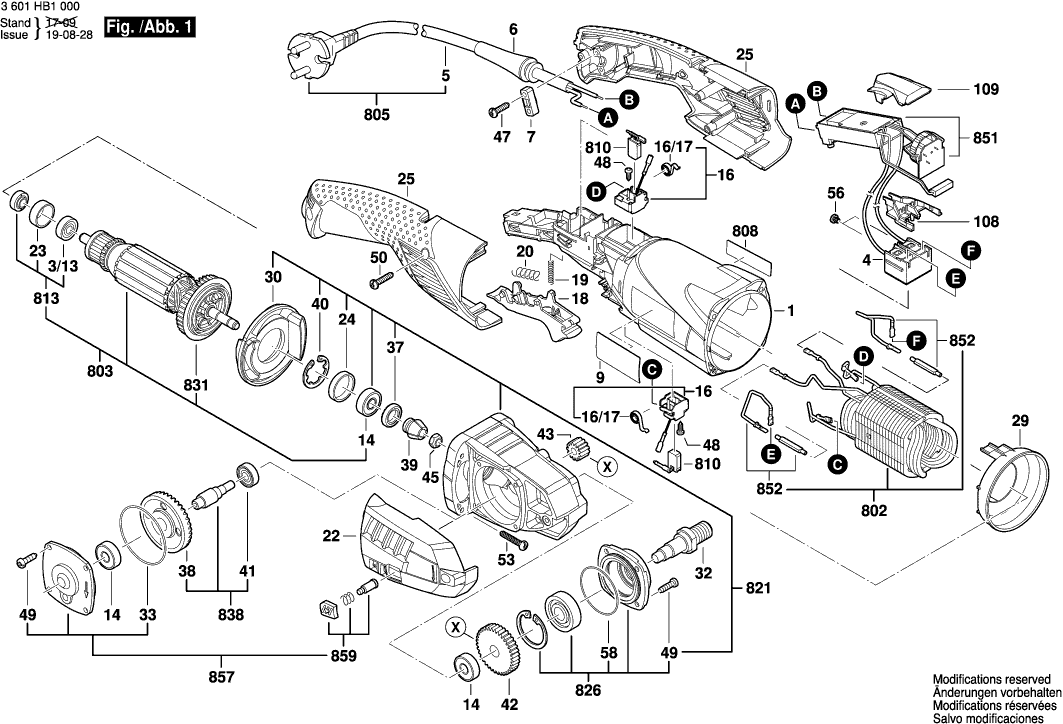

Technical drawing of model Bosch 3601HB1000 ( GSI14-CE )
Spare parts list of model Bosch 3601HB1000 ( GSI14-CE )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing BLUE | ||||
| 1 | 1605108255 | 12.41 | 15.02 | |
| Ball Bearing 7x19x6 | ||||
| 3/13 | 2600905032 | 4.10 | 4.96 | |
| Switch | ||||
| 4 | 1607200155 | 11.88 | 14.37 | |
| Grommet Ø7,3-Ø8,6x67 MM | ||||
| 6 | 1600703031 | 1.94 | 2.35 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.18 | 1.43 | |
| Manufacturer's nameplate GSI 14-CE | ||||
| 9 | 3601110570 | 2.24 | 2.71 | |
| groove ball bearing 8x22x7 | ||||
| 14 | 1600905032 | 4.70 | 5.69 | |
| Brush Holder | ||||
| 16 | 1601323025 | 2.71 | 3.28 | |
| Spiral Spring | ||||
| 16/17 | 1604652013 | 1.18 | 1.43 | |
| Adjusting Slide | ||||
| 18 | 1602319024 | 1.70 | 2.06 | |
| Compression Spring | ||||
| 19 | 1604611041 | 1.18 | 1.43 | |
| Compression Spring | ||||
| 20 | 3604611039 | 1.18 | 1.43 | |
| Cover | ||||
| 22 | 1605500281 | 4.70 | 5.69 | |
| Rubber Ring | ||||
| 23 | 1600206036 | 1.18 | 1.43 | |
| Rubber Ring | ||||
| 24 | 1600206025 | 1.70 | 2.06 | |
| Handle | ||||
| 25 | 1600A01N0J | 10.73 | 12.98 | |
| Air-Deflector Ring | ||||
| 29 | 1600591025 | 1.94 | 2.35 | |
| Air-Deflector Ring | ||||
| 30 | 1600591014 | 1.94 | 2.35 | |
| Grinding Spindle | ||||
| 32 | 1619P07906 | 13.93 | 16.86 | |
| O-Ring 46,0x1,1 MM | ||||
| 33 | 1600210035 | 1.18 | 1.43 | |
| Rotary shaft lip seal | ||||
| 37 | 1600290016 | 1.94 | 2.35 | |
| Crown Gear | ||||
| 38 | 1619P07918 | 33.45 | 40.47 | |
| Bevel Gear | ||||
| 39 | 1619P07919 | 23.75 | 28.74 | |
| Retaining clip | ||||
| 40 | 1600119011 | 1.70 | 2.06 | |
| groove ball bearing 7x19x6 | ||||
| 41 | 2600905072 | 5.33 | 6.45 | |
| Ball Bearing 7x19x6 | ||||
| 41 | 2600905032 | 4.10 | 4.96 | |
| Cylindrical Gear | ||||
| 42 | 1619P07911 | 20.42 | 24.71 | |
| Cylindrical Gear | ||||
| 43 | 1619P07912 | 20.42 | 24.71 | |
| Hex Nut M7, SW10 | ||||
| 45 | 1603300016 | 1.18 | 1.43 | |
| Screw 4x16 | ||||
| 47 | 2603490022 | 0.83 | 1.00 | |
| Lens Head Screw 3x10 ST | ||||
| 48 | 1613435034 | 0.83 | 1.00 | |
| Thread-forming tap. Screw M4x16 | ||||
| 49 | 2914491410 | 0.83 | 1.00 | |
| Torx Oval-Head Screw 4x20 | ||||
| 50 | 2603490023 | 0.83 | 1.00 | |
| Torx Oval-Head Screw | ||||
| 53 | 1603435078 | 0.83 | 1.00 | |
| Lens Head Screw | ||||
| 56 | 1603415004 | 1.18 | 1.43 | |
| O-Ring 39,0x1,1 MM | ||||
| 58 | 1619P07915 | 0.83 | 1.00 | |
| Cover | ||||
| 108 | 1600A00XC4 | 1.18 | 1.43 | |
| Cover BLACK | ||||
| 109 | 1605500263 | 3.31 | 4.01 | |
| Auxiliary Handle | ||||
| 640 | 16020250A1 | 11.88 | 14.37 | |
| fixation | ||||
| 650/1 | 1600A000Z1 | 15.71 | 19.01 | |
| Parallel Key | ||||
| 650/3 | 1902300297 | 1.18 | 1.43 | |
| Hex Screw Driver 4x95 | ||||
| 650/6 | 1619P01598 | 1.94 | 2.35 | |
| Key Holder | ||||
| 650/7 | 3602311050 | 1.70 | 2.06 | |
| Protective Cover | ||||
| 651 | 1605500283 | 49.56 | 59.97 | |
| Field 220-240V | ||||
| 802 | 1604220417 | 26.84 | 32.48 | |
| Armature With Fan 230V | ||||
| 803 | 1604010A23 | 60.65 | 73.39 | |
| Power supply cord | ||||
| 805 | 1607000391 | 13.93 | 16.86 | |
| Nameplate | ||||
| 808 | 160111A3H3 | 1.94 | 2.35 | |
| Carbon-Brush Set | ||||
| 810 | 1607014176 | 10.73 | 12.98 | |
| Parts Set | ||||
| 813 | 1607000378 | 5.33 | 6.45 | |
| Gear Housing | ||||
| 821 | 3607031742 | 113.29 | 137.08 | |
| Bearing Flange | ||||
| 826 | 3607031743 | 55.25 | 66.85 | |
| Fan | ||||
| 831 | 1606610132 | 1.70 | 2.06 | |
| Crown Gear | ||||
| 838 | 1619P09080 | 49.56 | 59.97 | |
| Speed governor | ||||
| 851 | 1607233256 | 91.56 | 110.79 | |
| Connecting Cable | ||||
| 852 | 1604448025 | 1.70 | 2.06 | |
| Gear Cover | ||||
| 857 | 1619P09079 | 13.93 | 16.86 | |
| Push button set | ||||
| 859 | 1619P09082 | 1.70 | 2.06 | |
| Guide Roller | ||||
| 864 | 3607031745 | 55.25 | 66.85 | |
| Spindle | ||||
| 866 | 3607031737 | 67.25 | 81.37 | |
