Here you will find all available parts and drawings of the 'Bosch 3611C22000 ( GSH7VC )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

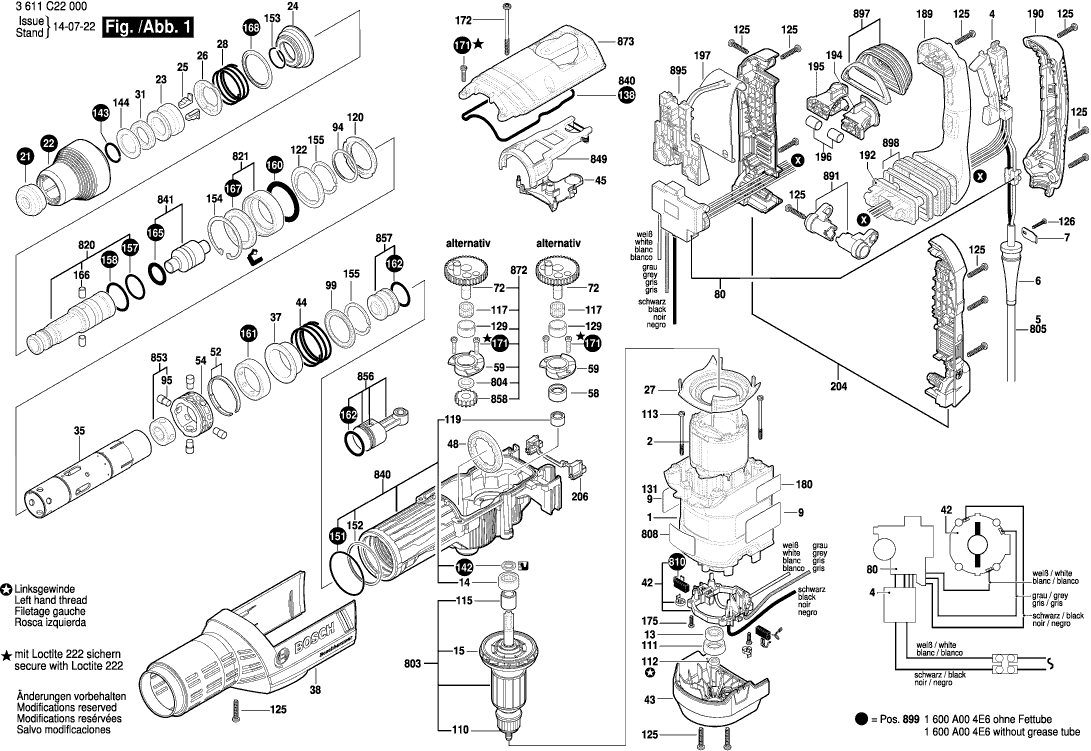

Technical drawing of model Bosch 3611C22000 ( GSH7VC )
Spare parts list of model Bosch 3611C22000 ( GSH7VC )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 1615108165 | 31.42 | 38.02 | |
| Field | ||||
| 2 | 1614220124 | 31.42 | 38.02 | |
| Switch | ||||
| 4 | 1617200130 | 43.12 | 52.18 | |
| Grommet | ||||
| 6 | 1610703053 | 2.40 | 2.90 | |
| Fastening Clamp | ||||
| 7 | 1601302018 | 1.49 | 1.80 | |
| Manufacturer's nameplate | ||||
| 9 | 160111A48C | 3.44 | 4.16 | |
| groove ball bearing | ||||
| 13 | 1610900026 | 11.37 | 13.76 | |
| Needle-Roller Bearing | ||||
| 14 | 1610910096 | 21.30 | 25.77 | |
| Fan | ||||
| 15 | 1616610109 | 14.94 | 18.08 | |
| Protective Cap | ||||
| 21 | 1610508038 | 8.35 | 10.10 | |
| Protection Sleeve | ||||
| 22 | 1610591051 | 10.68 | 12.92 | |
| Stop Sleeve | ||||
| 23 | 1610520006 | 16.79 | 20.32 | |
| Headed Bush | ||||
| 24 | 1610500025 | 9.67 | 11.70 | |
| Stopping Device | ||||
| 25 | 1612300027 | 10.90 | 13.19 | |
| Indexing Disk | ||||
| 26 | 1600A019WL | 2.86 | 3.46 | |
| No longer available, no replacement | ||||
| 27 | 160059105C | |||
| Compression Spring | ||||
| 28 | 1614621010 | 4.18 | 5.06 | |
| Damping Ring | ||||
| 31 | 1610290129 | 5.96 | 7.21 | |
| Hammer Pipe | ||||
| 35 | 1615806249 | 91.33 | 110.51 | |
| Hammer Pipe | ||||
| 35 | 1617S02A20 | 64.67 | 78.25 | |
| Control Bushing | ||||
| 37 | 1610322018 | 7.46 | 9.03 | |
| Covering hood | ||||
| 38 | 1615190177 | 31.42 | 38.02 | |
| Brush Holder | ||||
| 42 | 1614336090 | 47.53 | 57.51 | |
| Brush-Cover | ||||
| 43 | 1615500435 | 10.90 | 13.19 | |
| Compression Spring | ||||
| 44 | 1614621020 | 2.40 | 2.90 | |
| Holding-Down-Appliance | ||||
| 45 | 1610591052 | 2.08 | 2.52 | |
| Clutch Sleeve | ||||
| 48 | 1619990186 | 7.46 | 9.03 | |
| Retaining snap ring | ||||
| 52 | 1610224015 | 1.00 | 1.21 | |
| Spacer Tube | ||||
| 54 | 1600A019Z4 | 2.86 | 3.46 | |
| Locking Bush | ||||
| 58 | 1600A0014J | 5.81 | 7.03 | |
| Bearing Pedestal | ||||
| 59 | 1615805074 | 9.67 | 11.70 | |
| Eccentric Cog Wheel | ||||
| 72 | 1616317090 | 75.38 | 91.21 | |
| Speed governor | ||||
| 80 | 16072335R4 | 71.68 | 86.73 | |
| Auxiliary Handle | ||||
| 84 | 1602025081 | 18.94 | 22.92 | |
| Clamping Piece | ||||
| 85 | 1600A008BL | 2.40 | 2.90 | |
| Hex Screw | ||||
| 86 | 2911021267 | 3.44 | 4.16 | |
| No longer available, no replacement | ||||
| 88 | 1619P16922 | |||
| Supporting Disc | ||||
| 94 | 1610290111 | 2.08 | 2.52 | |
| Driving Pin | ||||
| 95 | 1613120023 | 4.18 | 5.06 | |
| Backup ring | ||||
| 99 | 1600220029 | 2.86 | 3.46 | |
| Seal Ring | ||||
| 110 | 1610190073 | 1.00 | 1.21 | |
| Bushing | ||||
| 111 | 1610290046 | 2.86 | 3.46 | |
| Hex Nut | ||||
| 112 | 1613300007 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 113 | 1613412001 | 1.49 | 1.80 | |
| Bushing | ||||
| 115 | 1610300086 | 5.81 | 7.03 | |
| Needle-Roller Assembly | ||||
| 117 | 1610913023 | 16.79 | 20.32 | |
| Needle-Roller Bearing | ||||
| 119 | 1610910081 | 13.13 | 15.89 | |
| Spacer Tube | ||||
| 120 | 1610190080 | 11.37 | 13.76 | |
| Spacer Ring | ||||
| 122 | 1610290128 | 7.46 | 9.03 | |
| Torx Oval-Head Screw | ||||
| 125 | 1613435040 | 2.08 | 2.52 | |
| Torx Oval-Head Screw | ||||
| 126 | 2603490023 | 1.00 | 1.21 | |
| Bushing | ||||
| 129 | 1610300080 | 4.18 | 5.06 | |
| Reference Plate | ||||
| 131 | 161111A082 | 2.40 | 2.90 | |
| Sealing Frame | ||||
| 138 | 1611015064 | 6.73 | 8.14 | |
| Rotary shaft lip seal | ||||
| 142 | 1610290112 | 4.18 | 5.06 | |
| Retaining ring | ||||
| 143 | 1614601072 | 2.40 | 2.90 | |
| Supporting Disc | ||||
| 144 | 1610103025 | 3.44 | 4.16 | |
| O-Ring | ||||
| 151 | 1610210222 | 1.00 | 1.21 | |
| Retaining ring | ||||
| 152 | 1614601073 | 1.49 | 1.80 | |
| Retaining ring | ||||
| 153 | 2916540017 | 1.90 | 2.30 | |
| Spring retaining ring | ||||
| 154 | 2916660027 | 4.18 | 5.06 | |
| Retaining ring | ||||
| 155 | 1614601074 | 1.49 | 1.80 | |
| O-Ring | ||||
| 157 | 1610210103 | 2.40 | 2.90 | |
| O-Ring | ||||
| 158 | 1610210224 | 1.00 | 1.21 | |
| O-Ring | ||||
| 160 | 1610210246 | 1.49 | 1.80 | |
| Damping Ring | ||||
| 161 | 1610210227 | 8.35 | 10.10 | |
| O-Ring | ||||
| 162 | 1600210080 | 2.18 | 2.64 | |
| Seal Ring | ||||
| 165 | 1610290125 | 9.67 | 11.70 | |
| Cylindrical Roller | ||||
| 166 | 1613200020 | 2.86 | 3.46 | |
| Rotary shaft lip seal | ||||
| 167 | 161029012A | 4.18 | 5.06 | |
| Packing Washer | ||||
| 168 | 1610206027 | 2.40 | 2.90 | |
| Torx socket button screw | ||||
| 171 | 1613414026 | 2.18 | 2.64 | |
| Torx Oval-Head Screw | ||||
| 172 | 1613435041 | 1.49 | 1.80 | |
| Torx Oval-Head Screw | ||||
| 175 | 2603490021 | 1.00 | 1.21 | |
| Handle | ||||
| 189 | 1615133038 | 13.13 | 15.89 | |
| Handle Cover | ||||
| 190 | 1615500438 | 14.94 | 18.08 | |
| Rocker Foot | ||||
| 192 | 1614611028 | 5.81 | 7.03 | |
| Screw Plate | ||||
| 194 | 1610099018 | 2.08 | 2.52 | |
| Screw Plate | ||||
| 195 | 1610099019 | 2.08 | 2.52 | |
| Damping rubber | ||||
| 196 | 1610026004 | 1.00 | 1.21 | |
| Leaf Spring | ||||
| 197 | 1616232000 | 10.90 | 13.19 | |
| Rear Housing Section | ||||
| 204 | 1615102162 | 18.94 | 22.92 | |
| Holding strip | ||||
| 206 | 1612386006 | 1.00 | 1.21 | |
| Grease Tube | ||||
| 661 | 1615430010 | 5.96 | 7.21 | |
| Carrying Case | ||||
| 691 | 161543851A | 47.53 | 57.51 | |
| Armature | ||||
| 803 | 1614010267 | 197.62 | 239.12 | |
| Stop Disc | ||||
| 804 | 1610190027 | 5.81 | 7.03 | |
| Power supply cord | ||||
| 805 | 1617000723 | 27.81 | 33.65 | |
| Nameplate | ||||
| 808 | 160111A3H5 | 2.40 | 2.90 | |
| Carbon-Brush Set | ||||
| 810 | 1617000A50 | 26.62 | 32.21 | |
| Toolholder | ||||
| 820 | 1618597102 | 136.48 | 165.14 | |
| Plain bearing | ||||
| 821 | 1610508058 | 27.81 | 33.65 | |
| Impact Mechanism Housing | ||||
| 840 | 1607000C38 | 197.62 | 239.12 | |
| Striker Pin | ||||
| 841 | 1617000A4R | 55.56 | 67.23 | |
| Control Fork | ||||
| 849 | 1617000A31 | 7.46 | 9.03 | |
| Guide Bushing | ||||
| 853 | 1610231004 | 27.81 | 33.65 | |
| Hammer Piston | ||||
| 856 | 1617000A32 | 50.23 | 60.78 | |
| Striker | ||||
| 857 | 1617000A33 | 27.81 | 33.65 | |
| Cylindrical Gear | ||||
| 858 | 1616317620 | 12.82 | 15.51 | |
| Eccentric | ||||
| 872 | 1617000A35 | 98.18 | 118.80 | |
| Housing Cover | ||||
| 873 | 1617000A4S | 80.26 | 97.11 | |
| Hex Screw | ||||
| 883 | 1613490019 | 2.40 | 2.90 | |
| Auxiliary Handle | ||||
| 884 | 160202508T | 39.14 | 47.36 | |
| Auxiliary Handle | ||||
| 885 | 160202508J | 58.03 | 70.22 | |
| Clamping Band | ||||
| 887 | 1600A01BH0 | 10.90 | 13.19 | |
| Rocker Arm | ||||
| 891 | 1612099005 | 10.90 | 13.19 | |
| Diaphragm | ||||
| 895 | 1613120024 | 31.42 | 38.02 | |
| Bellows | ||||
| 897 | 1610415005 | 9.67 | 11.70 | |
| Bellows | ||||
| 898 | 1610415004 | 9.67 | 11.70 | |
| Service package | ||||
| 899 | 1600A004E6 | 64.67 | 78.25 | |
