Here you will find all available parts and drawings of the 'Bosch 0611304103 (GSH27)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

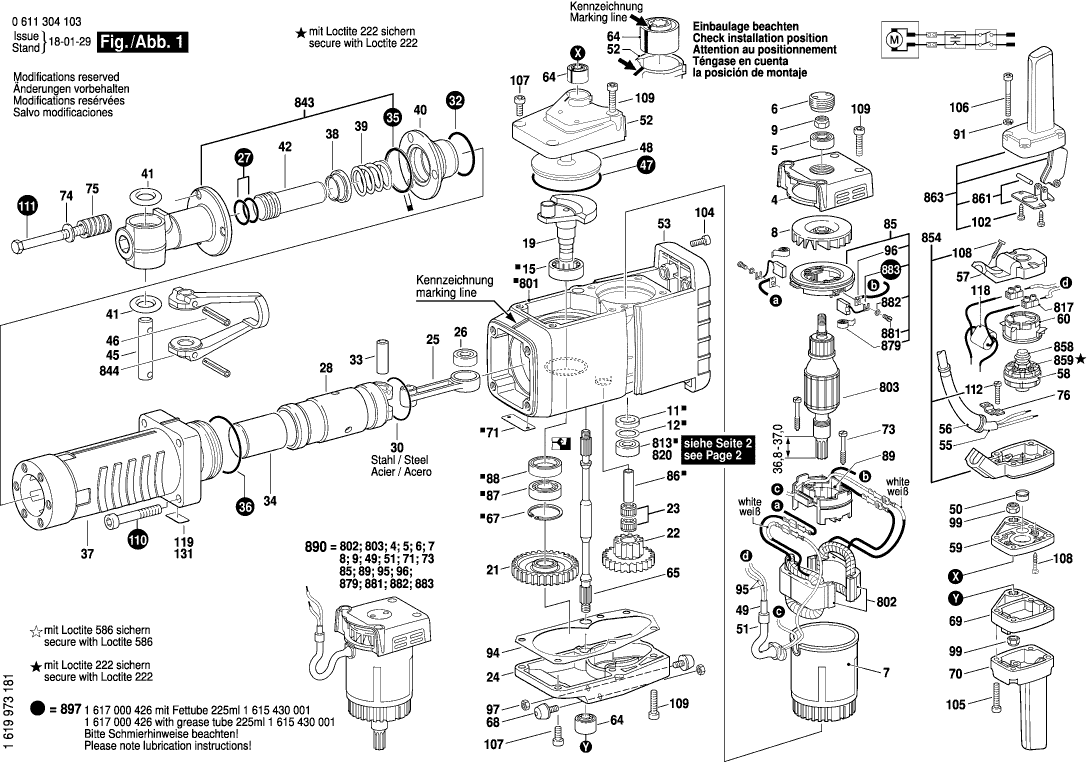

Technical drawing of model Bosch 0611304103 (GSH27)
Spare parts list of model Bosch 0611304103 (GSH27)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Bearing cover | ||||
| 4 | 1615805068 | 91.33 | 110.51 | |
| groove ball bearing | ||||
| 5 | 1610900015 | 23.90 | 28.92 | |
| Screw Plug | ||||
| 6 | 1615500214 | 21.30 | 25.77 | |
| Insulating Housing | ||||
| 7 | 1615108104 | 31.42 | 38.02 | |
| Fan | ||||
| 8 | 1616610089 | 16.79 | 20.32 | |
| Hex Nut | ||||
| 9 | 1613313000 | 2.86 | 3.46 | |
| Felt Washer | ||||
| 11 | 1610108013 | 2.08 | 2.52 | |
| Supporting Disc | ||||
| 12 | 1610102616 | 2.86 | 3.46 | |
| Needle-Roller Bearing | ||||
| 15 | 1610910091 | 33.33 | 40.33 | |
| No longer available, no replacement | ||||
| 19 | 1616110033 | |||
| Cylindrical Gear | ||||
| 21 | 1616318009 | 155.51 | 188.17 | |
| Cylindrical Gear | ||||
| 22 | 1616328036 | 219.55 | 265.66 | |
| Needle-Roller Assembly | ||||
| 23 | 1610913005 | 8.35 | 10.10 | |
| Gear Cover | ||||
| 24 | 1615500323 | 141.37 | 171.06 | |
| Connecting Rod | ||||
| 25 | 1612001040 | 82.63 | 99.98 | |
| Needle-Roller Bearing | ||||
| 26 | 1610910092 | 31.42 | 38.02 | |
| O-Ring | ||||
| 27 | 1610210033 | 2.18 | 2.64 | |
| Hammer Piston | ||||
| 28 | 1618700043 | 383.36 | 463.87 | |
| Retaining ring | ||||
| 30 | 1614601039 | 1.90 | 2.30 | |
| O-Ring | ||||
| 32 | 1900210156 | 7.32 | 8.86 | |
| Piston Pin | ||||
| 33 | 3613101500 | 6.53 | 7.90 | |
| Striker | ||||
| 34 | 1618710039 | 67.98 | 82.26 | |
| Seal Ring | ||||
| 35 | 1610209007 | 7.32 | 8.86 | |
| O-Ring | ||||
| 36 | 1900210166 | 4.58 | 5.54 | |
| Guide Tube | ||||
| 37 | 1615806029 | 360.29 | 435.95 | |
| Guide Bushing | ||||
| 38 | 1610220009 | 20.39 | 24.67 | |
| Compression Spring | ||||
| 39 | 1614619005 | 5.96 | 7.21 | |
| Intermediate Flange | ||||
| 40 | 1615700017 | 146.07 | 176.74 | |
| O-Ring | ||||
| 41 | 1610210008 | 5.81 | 7.03 | |
| Striker Pin | ||||
| 42 | 1613123003 | 126.98 | 153.65 | |
| Locking Bolt | ||||
| 45 | 1613103004 | 55.56 | 67.23 | |
| Slotted Spring Pin | ||||
| 46 | 2917760187 | 2.52 | 3.05 | |
| O-Ring | ||||
| 47 | 1900210172 | 9.67 | 11.70 | |
| Sealing cap | ||||
| 48 | 1610516007 | 11.94 | 14.45 | |
| Insulation Tubing | ||||
| 49 | 1610707000 | 1.24 | 1.50 | |
| Protection Sleeve | ||||
| 50 | 3600421500 | 2.40 | 2.90 | |
| Cord guard | ||||
| 51 | 1610703019 | 4.12 | 4.99 | |
| Fan Cover | ||||
| 52 | 1615500324 | 67.98 | 82.26 | |
| Covering hood | ||||
| 53 | 1600A00C0N | 82.63 | 99.98 | |
| Power supply cord | ||||
| 55 | 1617000723 | 27.81 | 33.65 | |
| Cord guard | ||||
| 56 | 1610703055 | 9.67 | 11.70 | |
| Switch Cover | ||||
| 57 | 1615500212 | 9.47 | 11.46 | |
| Switch | ||||
| 58 | 1617200108 | 61.93 | 74.94 | |
| Intermediate Plate | ||||
| 59 | 1615700041 | 102.63 | 124.18 | |
| Insulating Cap | ||||
| 60 | 1615500330 | 3.71 | 4.49 | |
| Rubber Torsion-Bar | ||||
| 64 | 1616334000 | 26.62 | 32.21 | |
| Toothed Shaft | ||||
| 65 | 1613060005 | 58.03 | 70.22 | |
| Spring retaining ring | ||||
| 67 | 2916660023 | 4.94 | 5.98 | |
| Rubber Buffer | ||||
| 68 | 1613465001 | 5.81 | 7.03 | |
| Intermediate Plate | ||||
| 69 | 1615700042 | 114.26 | 138.25 | |
| Handle | ||||
| 70 | 1615132011 | 37.50 | 45.38 | |
| Nameplate | ||||
| 71 | 160111A3H3 | 2.40 | 2.90 | |
| Tapping Screw | ||||
| 73 | 1603435036 | 1.80 | 2.18 | |
| Disc Spring | ||||
| 74 | 2916160009 | 3.04 | 3.68 | |
| Compression Spring | ||||
| 75 | 3614640501 | 8.48 | 10.26 | |
| Fastening Clamp | ||||
| 76 | 1611302011 | 5.96 | 7.21 | |
| Brush Holder | ||||
| 85 | 1614336045 | 34.82 | 42.13 | |
| Bearing bolt | ||||
| 86 | 1610300033 | 18.94 | 22.92 | |
| groove ball bearing | ||||
| 87 | 1610900027 | 27.81 | 33.65 | |
| Rotary shaft lip seal | ||||
| 88 | 1610283016 | 9.67 | 11.70 | |
| Spacer | ||||
| 89 | 1610009008 | 3.44 | 4.16 | |
| Sealing Plate | ||||
| 94 | 1611015021 | 2.86 | 3.46 | |
| Connecting Cable | ||||
| 95 | 1614431030 | 5.96 | 7.21 | |
| Connecting Cable | ||||
| 96 | 1614448037 | 9.67 | 11.70 | |
| Hex Nut | ||||
| 97 | 2915011007 | 1.00 | 1.21 | |
| Hex Nut | ||||
| 99 | 3613313500 | 2.86 | 3.46 | |
| Tapping Screw | ||||
| 102 | 2910211025 | 1.49 | 1.80 | |
| Hex Socket Head Cap Screw | ||||
| 104 | 2910141201 | 2.40 | 2.90 | |
| Microencapsulated Screw | ||||
| 105 | 2914551188 | 2.86 | 3.46 | |
| Microencapsulated Screw | ||||
| 106 | 2914551189 | 1.00 | 1.21 | |
| Hex Socket Head Cap Screw | ||||
| 107 | 2910141242 | 1.49 | 1.80 | |
| Torx Oval-Head Screw | ||||
| 108 | 2603490023 | 1.00 | 1.21 | |
| Hex Socket Head Cap Screw | ||||
| 109 | 2910141248 | 1.49 | 1.80 | |
| Hex Socket Head Cap Screw | ||||
| 110 | 2910141356 | 2.40 | 2.90 | |
| Microencapsulated Screw | ||||
| 111 | 2914550034 | 3.04 | 3.68 | |
| Tapping Screw | ||||
| 112 | 2910211236 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 118 | 1617328029 | |||
| Reference Plate | ||||
| 135 | 3611119512 | 2.87 | 3.47 | |
| Modification Set | ||||
| 800 | 1617000852 | 738.05 | 893.04 | |
| Motor Housing | ||||
| 801 | 1617000851 | 847.77 | 1025.80 | |
| Field | ||||
| 802 | 1614220156 | 166.62 | 201.61 | |
| Armature | ||||
| 803 | 1614011091 | 495.00 | 598.95 | |
| Needle-Roller Bearing | ||||
| 813 | 1610910035 | 22.88 | 27.68 | |
| Strip Terminal | ||||
| 817 | 1901091110 | 1.49 | 1.80 | |
| Needle-Roller Bearing | ||||
| 820 | 1610910094 | 28.56 | 34.56 | |
| Toolholder | ||||
| 843 | 1617000428 | 495.00 | 598.95 | |
| Retaining Bracket | ||||
| 844 | 1618045026 | 197.62 | 239.12 | |
| Switch Housing | ||||
| 854 | 1617000858 | 33.33 | 40.33 | |
| Protective Cap | ||||
| 858 | 1610591001 | 17.60 | 21.30 | |
| Pan head screw | ||||
| 859 | 2910091118 | 1.00 | 1.21 | |
| fixing plate | ||||
| 861 | 1617000429 | 10.68 | 12.92 | |
| Parts Set | ||||
| 863 | 1617000A10 | 50.23 | 60.78 | |
| Spiral Spring | ||||
| 879 | 1614652001 | 3.44 | 4.16 | |
| Torx Oval-Head Screw | ||||
| 881 | 1613490005 | 2.40 | 2.90 | |
| Spring Lock Washer | ||||
| 882 | 1610151007 | 1.00 | 1.21 | |
| Carbon-Brush Set | ||||
| 883 | 1617000425 | 27.81 | 33.65 | |
| No longer available, no replacement | ||||
| 890 | 1617000849 | |||
| Grease | ||||
| 895 | 1615430007 | 75.38 | 91.21 | |
| Wear and Tear Part Set | ||||
| 897 | 1617000426 | 67.98 | 82.26 | |
| Grease Tube | ||||
| 898 | 1615430001 | 22.88 | 27.68 | |
