Here you will find all available parts and drawings of the 'Bosch 3611C35100 ( GSH16-30 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

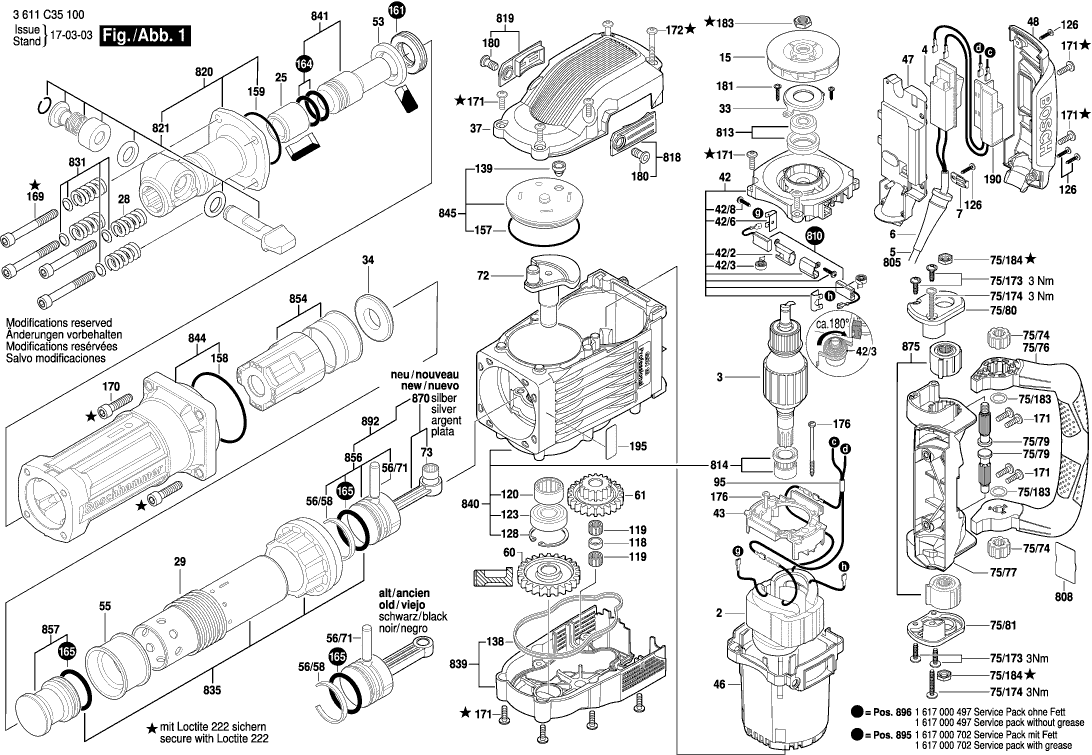

Technical drawing of model Bosch 3611C35100 ( GSH16-30 )
Spare parts list of model Bosch 3611C35100 ( GSH16-30 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Field | ||||
| 2 | 160422052M | 88.83 | 107.48 | |
| Armature | ||||
| 3 | 1614011117 | 136.48 | 165.14 | |
| Switch | ||||
| 4 | 1607200244 | 31.42 | 38.02 | |
| Grommet | ||||
| 6 | 1610703053 | 2.40 | 2.90 | |
| Fastening Clamp | ||||
| 7 | 1601302018 | 1.49 | 1.80 | |
| Fan | ||||
| 15 | 1616610102 | 16.79 | 20.32 | |
| Guide Ring | ||||
| 25 | 1610300070 | 23.90 | 28.92 | |
| Compression Spring | ||||
| 28 | 1614614006 | 6.73 | 8.14 | |
| Compression Spring | ||||
| 29 | 1614614007 | 6.73 | 8.14 | |
| Holding Plate | ||||
| 33 | 1611006008 | 9.67 | 11.70 | |
| Supporting Disc | ||||
| 34 | 1610102635 | 13.13 | 15.89 | |
| Fan Cover | ||||
| 37 | 1615500380 | 43.12 | 52.18 | |
| Brush Holder | ||||
| 42 | 1614336078 | 43.12 | 52.18 | |
| Brush Guide | ||||
| 42/2 | 1614336017 | 11.37 | 13.76 | |
| Spiral Spring | ||||
| 42/3 | 1614652007 | 3.44 | 4.16 | |
| Connector | ||||
| 42/6 | 1611390005 | 4.94 | 5.98 | |
| Tapping Screw | ||||
| 42/8 | 2912401412 | 1.00 | 1.21 | |
| Spacer | ||||
| 43 | 1610508054 | 2.86 | 3.46 | |
| Motor Housing | ||||
| 46 | 1615106053 | 23.90 | 28.92 | |
| Base Plate | ||||
| 47 | 1618000028 | 14.94 | 18.08 | |
| Housing Cover | ||||
| 48 | 1615500383 | 31.42 | 38.02 | |
| Stop Disc | ||||
| 53 | 1610190058 | 11.37 | 13.76 | |
| Control Bushing | ||||
| 55 | 1610506019 | 39.14 | 47.36 | |
| Retaining snap ring | ||||
| 56/58 | 1610500023 | 6.73 | 8.14 | |
| Piston Pin | ||||
| 56/71 | 1613101012 | 4.94 | 5.98 | |
| Cylindrical Gear | ||||
| 60 | 1616317086 | 80.26 | 97.11 | |
| Cylindrical Gear | ||||
| 61 | 1616317093 | 110.30 | 133.46 | |
| Eccentric Shaft | ||||
| 72 | 1600A014TW | 88.83 | 107.48 | |
| Needle bearing | ||||
| 73 | 1600A0014G | 4.18 | 5.06 | |
| Torx Oval-Head Screw | ||||
| 75/173 | 1613490008 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 75/174 | 1613490009 | 1.49 | 1.80 | |
| Supporting Disc | ||||
| 75/183 | 2916280013 | 1.49 | 1.80 | |
| Hex Nut | ||||
| 75/184 | 1613349021 | 2.08 | 2.52 | |
| Splined coupling | ||||
| 75/74 | 1613060049 | 10.90 | 13.19 | |
| Strap-Shaped Handle | ||||
| 75/76 | 1618045022 | 64.67 | 78.25 | |
| Bearing Pedestal | ||||
| 75/77 | 1615805069 | 27.81 | 33.65 | |
| Toothed Shaft | ||||
| 75/79 | 1613060050 | 11.37 | 13.76 | |
| Bearing cover | ||||
| 75/80 | 1615500376 | 8.35 | 10.10 | |
| Bearing cover | ||||
| 75/81 | 1615500377 | 9.67 | 11.70 | |
| Hex Screw | ||||
| 86 | 2911021267 | 3.44 | 4.16 | |
| Clamping Band | ||||
| 87 | 1600A00AR5 | 16.79 | 20.32 | |
| No longer available, no replacement | ||||
| 88 | 1613349017 | |||
| Connecting Cable | ||||
| 95 | 1614448038 | 8.35 | 10.10 | |
| Spacer Tube | ||||
| 118 | 1610520003 | 2.86 | 3.46 | |
| Needle-Roller Assembly | ||||
| 119 | 1610913020 | 2.40 | 2.90 | |
| Needle-Roller Bearing | ||||
| 120 | 1610910092 | 31.42 | 38.02 | |
| groove ball bearing | ||||
| 123 | 1610900030 | 18.94 | 22.92 | |
| Torx Oval-Head Screw | ||||
| 126 | 2603490023 | 1.00 | 1.21 | |
| Spring retaining ring | ||||
| 128 | 2916660021 | 4.18 | 5.06 | |
| Sealing Frame | ||||
| 138 | 1611015059 | 3.44 | 4.16 | |
| Plug | ||||
| 139 | 1610508050 | 2.40 | 2.90 | |
| O-Ring | ||||
| 157 | 1610210192 | 2.86 | 3.46 | |
| O-Ring | ||||
| 158 | 1610210191 | 2.86 | 3.46 | |
| O-Ring | ||||
| 159 | 1600210005 | 2.86 | 3.46 | |
| Damping Ring | ||||
| 161 | 1610290118 | 3.44 | 4.16 | |
| O-Ring | ||||
| 164 | 1610210194 | 2.86 | 3.46 | |
| O-Ring | ||||
| 165 | 1610210195 | 10.90 | 13.19 | |
| Hex Socket Head Cap Screw | ||||
| 169 | 1613414022 | 3.44 | 4.16 | |
| Hex Socket Head Cap Screw | ||||
| 170 | 1613414023 | 1.49 | 1.80 | |
| Torx Oval-Head Screw | ||||
| 171 | 1613490010 | 2.40 | 2.90 | |
| Torx Oval-Head Screw | ||||
| 172 | 1613490011 | 2.08 | 2.52 | |
| Tapping Screw | ||||
| 176 | 1603435036 | 1.80 | 2.18 | |
| Clamp Screw | ||||
| 180 | 1613490007 | 2.86 | 3.46 | |
| Screw | ||||
| 181 | 2603490022 | 1.00 | 1.21 | |
| Hex Nut | ||||
| 183 | 1613349020 | 2.08 | 2.52 | |
| Suppression Filter | ||||
| 190 | 1614503007 | 39.14 | 47.36 | |
| No longer available, no replacement | ||||
| 195 | 1611110D43 | |||
| Grease Tube | ||||
| 661 | 1615430010 | 5.96 | 7.21 | |
| Power supply cord | ||||
| 805 | 1617000723 | 27.81 | 33.65 | |
| Nameplate | ||||
| 808 | 160111A3H3 | 2.40 | 2.90 | |
| Carbon-Brush Set | ||||
| 810 | 1617014143 | 21.30 | 25.77 | |
| Bearing | ||||
| 813 | 1617000480 | 14.94 | 18.08 | |
| Bearing | ||||
| 814 | 1617000481 | 31.42 | 38.02 | |
| Brush-Cover | ||||
| 818 | 1617000482 | 4.18 | 5.06 | |
| Brush-Cover | ||||
| 819 | 1617000483 | 4.18 | 5.06 | |
| Toolholder | ||||
| 820 | 1617000722 | 396.32 | 479.55 | |
| Locking Bolt Set | ||||
| 821 | 1617000721 | 80.26 | 97.11 | |
| Plain Washer | ||||
| 831 | 1617000A4Z | 13.13 | 15.89 | |
| Guide Tube | ||||
| 835 | 1617000709 | 219.55 | 265.66 | |
| Gear Cover | ||||
| 839 | 1617000489 | 71.68 | 86.73 | |
| Gear Housing | ||||
| 840 | 1617000490 | 396.32 | 479.55 | |
| Striker Pin | ||||
| 841 | 1617000491 | 98.18 | 118.80 | |
| Hammer Pipe | ||||
| 844 | 1617000492 | 244.89 | 296.32 | |
| Sealing cap | ||||
| 845 | 1617000710 | 16.79 | 20.32 | |
| Spacer Tube | ||||
| 854 | 1617000740 | 23.90 | 28.92 | |
| Hammer Piston | ||||
| 856 | 1607000C3N | 18.94 | 22.92 | |
| Striker | ||||
| 857 | 1617000495 | 71.68 | 86.73 | |
| Connecting Rod | ||||
| 870 | 1607000C3P | 21.30 | 25.77 | |
| Rubber Torsion-Bar | ||||
| 875 | 1617000496 | 52.45 | 63.46 | |
| Auxiliary Handle | ||||
| 884 | 160202508K | 58.03 | 70.22 | |
| Handle | ||||
| 885 | 1605132163 | 13.13 | 15.89 | |
| Hex Screw | ||||
| 886 | 2911011270 | 4.18 | 5.06 | |
| Wheel Set | ||||
| 890 | 1617000716 | 34.82 | 42.13 | |
| Lock | ||||
| 891 | 1617000715 | 7.46 | 9.03 | |
| Hammer Piston | ||||
| 892 | 1607000C3M | 43.12 | 52.18 | |
| Wear and Tear Part Set | ||||
| 895 | 1617000702 | 71.68 | 86.73 | |
| Wear and Tear Part Set | ||||
| 896 | 1617000497 | 39.14 | 47.36 | |
| Lubricating Grease | ||||
| 897 | 1615430016 | 102.63 | 124.18 | |
| Grease Tube | ||||
| 898 | 1615430015 | 39.14 | 47.36 | |
