Here you will find all available parts and drawings of the 'Bosch 3611C36000 (GSH11VC)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

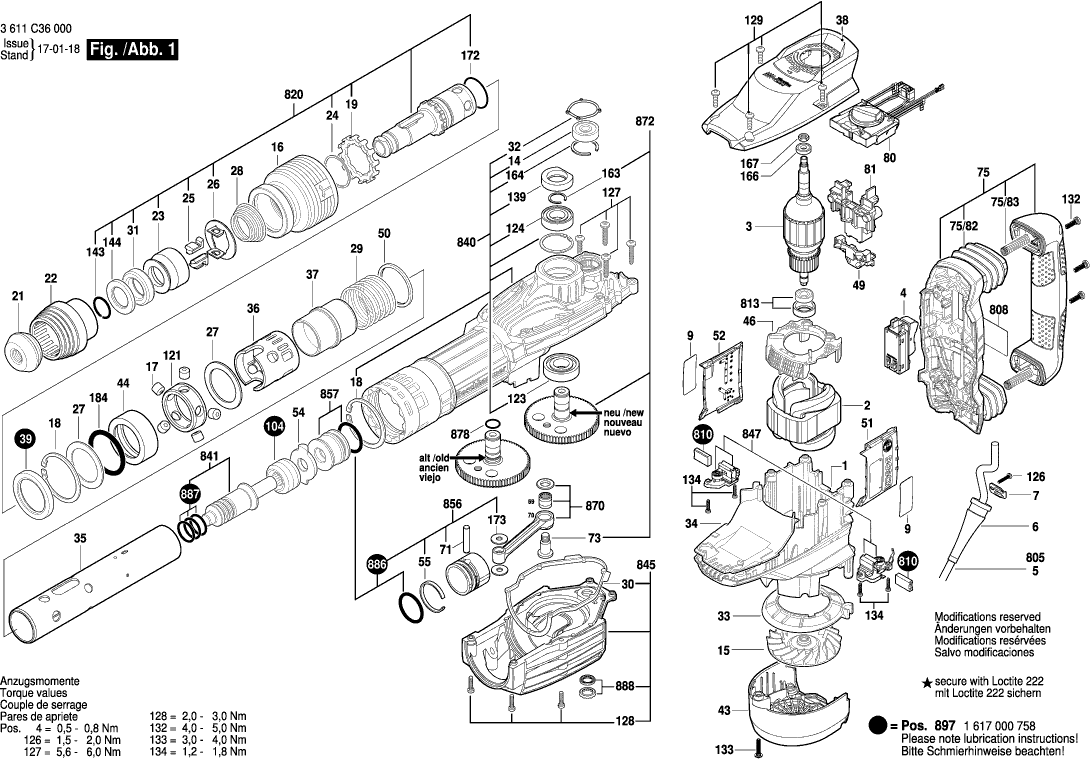

Technical drawing of model Bosch 3611C36000 (GSH11VC)
Spare parts list of model Bosch 3611C36000 (GSH11VC)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 1615108157 | 23.90 | 28.92 | |
| Field | ||||
| 2 | 160422052F | 88.83 | 107.48 | |
| Armature | ||||
| 3 | 1614011120 | 155.51 | 188.17 | |
| Switch | ||||
| 4 | 1607200244 | 31.42 | 38.02 | |
| Grommet | ||||
| 6 | 1610703053 | 2.40 | 2.90 | |
| Fastening Clamp | ||||
| 7 | 1601302018 | 1.49 | 1.80 | |
| Manufacturer's nameplate | ||||
| 9 | 160111C0U4 | 2.40 | 2.90 | |
| groove ball bearing | ||||
| 14 | 1600905028 | 12.09 | 14.63 | |
| Fan | ||||
| 15 | 1616610106 | 12.82 | 15.51 | |
| Guide Sleeve | ||||
| 16 | 1610499076 | 10.90 | 13.19 | |
| Locking Bolt | ||||
| 17 | 1613103012 | 2.40 | 2.90 | |
| Spring retaining ring | ||||
| 18 | 1610224011 | 2.40 | 2.90 | |
| Carrier | ||||
| 19 | 1616490071 | 4.18 | 5.06 | |
| Protective Cap | ||||
| 21 | 1610508025 | 4.18 | 5.06 | |
| Protection Sleeve | ||||
| 22 | 1610499078 | 4.94 | 5.98 | |
| Stop Sleeve | ||||
| 23 | 1610520005 | 11.37 | 13.76 | |
| Retaining ring | ||||
| 24 | 1614601020 | 1.49 | 1.80 | |
| Stopping Device | ||||
| 25 | 1612300025 | 8.35 | 10.10 | |
| Indexing Disk | ||||
| 26 | 1610290105 | 3.44 | 4.16 | |
| Stop Disc | ||||
| 27 | 1610101024 | 2.08 | 2.52 | |
| Conical helical spring | ||||
| 28 | 1614621014 | 2.40 | 2.90 | |
| Compression Spring | ||||
| 29 | 1614621015 | 4.94 | 5.98 | |
| Sealing Frame | ||||
| 30 | 1611015063 | 6.73 | 8.14 | |
| Damping Ring | ||||
| 31 | 1610290106 | 3.44 | 4.16 | |
| Sealing Frame | ||||
| 32 | 1610210214 | 1.49 | 1.80 | |
| Air-Deflector Ring | ||||
| 33 | 1610591047 | 3.44 | 4.16 | |
| Air Path | ||||
| 34 | 1610591048 | 2.86 | 3.46 | |
| Hammer Pipe | ||||
| 35 | 1615806243 | 146.07 | 176.74 | |
| Perforated Ring | ||||
| 36 | 1610190066 | 4.94 | 5.98 | |
| Control Bushing | ||||
| 37 | 1610420006 | 27.81 | 33.65 | |
| Covering hood | ||||
| 38 | 1615190173 | 18.94 | 22.92 | |
| Rotary shaft lip seal | ||||
| 39 | 1610283052 | 5.81 | 7.03 | |
| Brush-Cover | ||||
| 43 | 1615500426 | 8.35 | 10.10 | |
| Guide Sleeve | ||||
| 44 | 1610322017 | 31.42 | 38.02 | |
| Holding-Down-Appliance | ||||
| 46 | 1615500427 | 4.18 | 5.06 | |
| Plug Holder | ||||
| 49 | 1604477020 | 2.86 | 3.46 | |
| Stop Ring | ||||
| 50 | 1610206028 | 4.94 | 5.98 | |
| Housing Cover | ||||
| 51 | 1615500424 | 4.94 | 5.98 | |
| Housing Cover | ||||
| 52 | 1615500425 | 4.94 | 5.98 | |
| Control Disc | ||||
| 54 | 1610190069 | 23.90 | 28.92 | |
| Retaining snap ring | ||||
| 55 | 1610500024 | 1.49 | 1.80 | |
| Straight Pin | ||||
| 71 | 1613101014 | 2.08 | 2.52 | |
| Eccentric Bolt | ||||
| 73 | 1610320015 | 13.13 | 15.89 | |
| Handle | ||||
| 75 | 1615132132 | 52.45 | 63.46 | |
| Bellows | ||||
| 75/82 | 1610415003 | 13.13 | 15.89 | |
| Compression Spring | ||||
| 75/83 | 1614621009 | 8.35 | 10.10 | |
| Speed governor | ||||
| 80 | 1617233052 | 64.67 | 78.25 | |
| Inserted Part | ||||
| 81 | 1611038018 | 6.73 | 8.14 | |
| Auxiliary Handle | ||||
| 85 | 1602025081 | 18.94 | 22.92 | |
| Hex Screw | ||||
| 86 | 2911021267 | 3.44 | 4.16 | |
| Clamping Band | ||||
| 87 | 1600A01BH0 | 10.90 | 13.19 | |
| No longer available, no replacement | ||||
| 88 | 1613349017 | |||
| Clamping Piece | ||||
| 89 | 1600A008BL | 2.40 | 2.90 | |
| Damper | ||||
| 104 | 1610210219 | 47.53 | 57.51 | |
| Retaining snap ring | ||||
| 121 | 1610200032 | 34.82 | 42.13 | |
| groove ball bearing | ||||
| 123 | 1610900033 | 9.67 | 11.70 | |
| groove ball bearing | ||||
| 124 | 1610900034 | 10.90 | 13.19 | |
| Torx Oval-Head Screw | ||||
| 126 | 2603490023 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 127 | 1613490022 | 1.00 | 1.21 | |
| Torx socket button screw | ||||
| 128 | 1613414026 | 2.18 | 2.64 | |
| Torx Oval-Head Screw | ||||
| 129 | 1613490024 | 1.49 | 1.80 | |
| Torx Oval-Head Screw | ||||
| 132 | 1613490025 | 1.90 | 2.30 | |
| Torx Oval-Head Screw | ||||
| 133 | 1613490026 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 134 | 1613490027 | 1.00 | 1.21 | |
| Felt Washer | ||||
| 139 | 1610209017 | 2.08 | 2.52 | |
| Retaining ring | ||||
| 143 | 1614601071 | 2.08 | 2.52 | |
| Supporting Disc | ||||
| 144 | 1610101023 | 3.44 | 4.16 | |
| Spring retaining ring | ||||
| 163 | 1610224012 | 1.00 | 1.21 | |
| Spring retaining ring | ||||
| 164 | 1610224013 | 1.00 | 1.21 | |
| Solenoid Ring | ||||
| 166 | 1610209011 | 5.81 | 7.03 | |
| Hex Nut | ||||
| 167 | 2915050107 | 1.00 | 1.21 | |
| O-Ring | ||||
| 172 | 1610210216 | 2.08 | 2.52 | |
| Disc | ||||
| 173 | 1610100021 | 1.00 | 1.21 | |
| Damping Ring | ||||
| 184 | 1610210218 | 7.46 | 9.03 | |
| Carrying Case | ||||
| 650 | 1615438492 | 64.67 | 78.25 | |
| Power supply cord | ||||
| 805 | 1617000723 | 27.81 | 33.65 | |
| Nameplate | ||||
| 808 | 160111A3H5 | 2.40 | 2.90 | |
| Carbon Brush | ||||
| 810 | 1617000750 | 16.79 | 20.32 | |
| groove ball bearing | ||||
| 813 | 1617000744 | 12.82 | 15.51 | |
| Toolholder | ||||
| 820 | 1617000745 | 136.48 | 165.14 | |
| Impact Mechanism Housing | ||||
| 840 | 1617000746 | 314.42 | 380.45 | |
| Striker Pin | ||||
| 841 | 1617000747 | 64.67 | 78.25 | |
| Gear Cover | ||||
| 845 | 1617000748 | 71.68 | 86.73 | |
| Brush Holder | ||||
| 847 | 1617000749 | 27.81 | 33.65 | |
| Hammer Piston | ||||
| 856 | 1617000751 | 14.94 | 18.08 | |
| Striker | ||||
| 857 | 1617000752 | 34.82 | 42.13 | |
| Connecting Rod | ||||
| 870 | 1617000753 | 34.82 | 42.13 | |
| Eccentric Cog Wheel | ||||
| 872 | 1600A005A4 | 88.83 | 107.48 | |
| O-Ring | ||||
| 878 | 1610210215 | 1.00 | 1.21 | |
| Hex Screw | ||||
| 883 | 1613490019 | 2.40 | 2.90 | |
| Auxiliary Handle | ||||
| 884 | 160202508T | 39.14 | 47.36 | |
| Auxiliary Handle | ||||
| 885 | 160202508J | 58.03 | 70.22 | |
| O-Ring | ||||
| 886 | 1617000755 | 16.79 | 20.32 | |
| O-Ring | ||||
| 887 | 1617000756 | 9.67 | 11.70 | |
| Parts Set | ||||
| 888 | 1617000757 | 8.35 | 10.10 | |
| Wear and Tear Part Set | ||||
| 897 | 1617000758 | 64.67 | 78.25 | |
