Here you will find all available parts and drawings of the 'Bosch 0611316708 (GSH11E)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

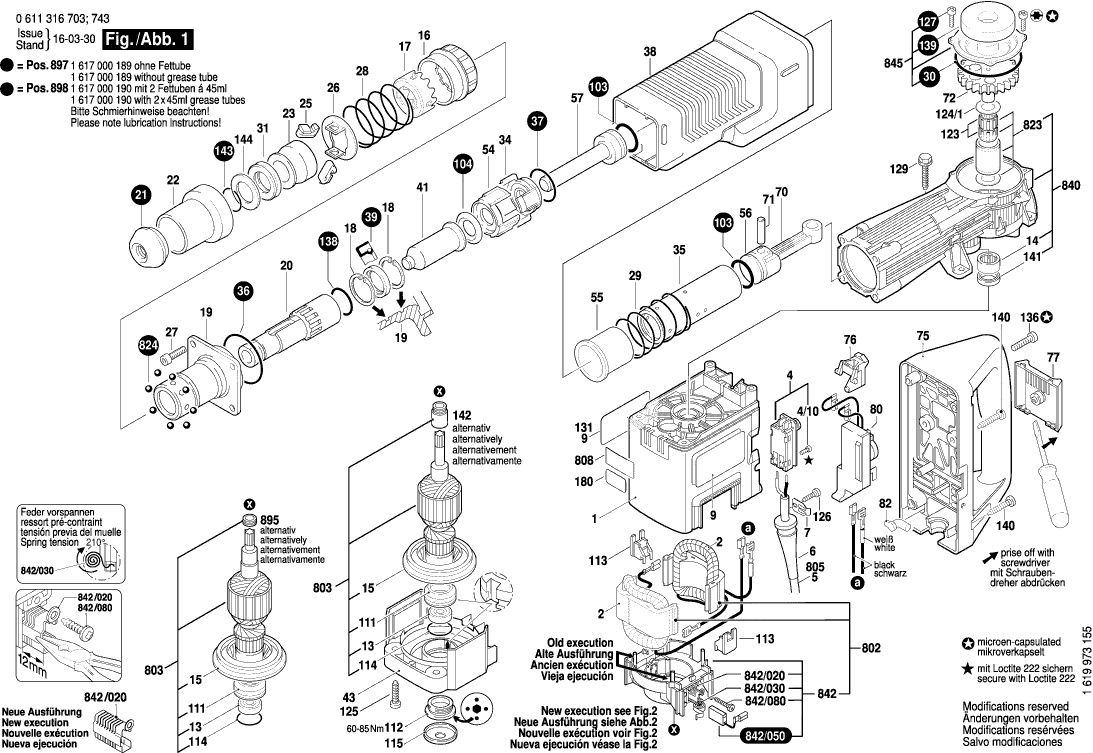

Technical drawing of model Bosch 0611316708 (GSH11E)
Spare parts list of model Bosch 0611316708 (GSH11E)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 1615108091 | 33.33 | 40.33 | |
| Field | ||||
| 2 | 160422052J | 80.26 | 97.11 | |
| Switch | ||||
| 4 | 1617200048 | 16.79 | 20.32 | |
| Socket head cap screw | ||||
| 4/10 | 2910011088 | 1.00 | 1.21 | |
| Grommet | ||||
| 6 | 1610703053 | 2.40 | 2.90 | |
| Fastening Clamp | ||||
| 7 | 1601302019 | 1.49 | 1.80 | |
| Manufacturer's nameplate | ||||
| 9 | 160111C0U1 | 2.18 | 2.64 | |
| groove ball bearing | ||||
| 13 | 2610909310 | 14.94 | 18.08 | |
| Needle-Roller Bearing | ||||
| 14 | 1610910096 | 21.30 | 25.77 | |
| Fan | ||||
| 15 | 1616610083 | 18.94 | 22.92 | |
| Ratchet Sleeve | ||||
| 16 | 1610499022 | 3.44 | 4.16 | |
| Retaining snap ring | ||||
| 17 | 1610590004 | 11.37 | 13.76 | |
| Spring retaining ring | ||||
| 18 | 1610119010 | 3.44 | 4.16 | |
| Clamping-Flange | ||||
| 19 | 1619P13963 | 52.45 | 63.46 | |
| Toolholder | ||||
| 20 | 1618597067 | 98.18 | 118.80 | |
| Protective Cap | ||||
| 21 | 1610508025 | 4.18 | 5.06 | |
| Protection Sleeve | ||||
| 22 | 1610499023 | 3.44 | 4.16 | |
| Stop Sleeve | ||||
| 23 | 1610521011 | 16.79 | 20.32 | |
| Stopping Device | ||||
| 25 | 1612300025 | 8.35 | 10.10 | |
| Indexing Disk | ||||
| 26 | 1610290027 | 3.44 | 4.16 | |
| Hex Socket Head Cap Screw | ||||
| 27 | 2910151246 | 2.40 | 2.90 | |
| Compression Spring | ||||
| 28 | 1614621002 | 2.08 | 2.52 | |
| Compression Spring | ||||
| 29 | 1614621003 | 2.86 | 3.46 | |
| O-Ring | ||||
| 30 | 1610210147 | 2.40 | 2.90 | |
| Damping Ring | ||||
| 31 | 1610290026 | 2.86 | 3.46 | |
| Spacer Tube | ||||
| 34 | 1610390029 | 16.79 | 20.32 | |
| Hammer Pipe | ||||
| 35 | 1615806108 | 64.67 | 78.25 | |
| O-Ring | ||||
| 36 | 1610210127 | 1.49 | 1.80 | |
| O-Ring | ||||
| 37 | 1610210128 | 2.08 | 2.52 | |
| Covering hood | ||||
| 38 | 1615190093 | 23.90 | 28.92 | |
| Rotary shaft lip seal | ||||
| 39 | 1610283030 | 11.37 | 13.76 | |
| Rotary shaft lip seal | ||||
| 39 | 1600A01MK9 | 8.35 | 10.10 | |
| Striker Pin | ||||
| 41 | 1618710071 | 21.30 | 25.77 | |
| Bearing cover | ||||
| 43 | 1615808083 | 23.90 | 28.92 | |
| Control Disc | ||||
| 54 | 1610190019 | 8.35 | 10.10 | |
| Control Bushing | ||||
| 55 | 1610420005 | 21.30 | 25.77 | |
| Hammer Piston | ||||
| 56 | 1618700064 | 11.37 | 13.76 | |
| Striker | ||||
| 57 | 1618710062 | 64.67 | 78.25 | |
| Connecting Rod | ||||
| 70 | 1612001033 | 11.37 | 13.76 | |
| Straight Pin | ||||
| 71 | 1613101006 | 2.86 | 3.46 | |
| Eccentric Cog Wheel | ||||
| 72 | 1600A027H7 | 23.90 | 28.92 | |
| Handle | ||||
| 75 | 1615132082 | 39.14 | 47.36 | |
| Control Lever | ||||
| 76 | 1612026049 | 2.52 | 3.05 | |
| Shift Plate | ||||
| 77 | 1612026048 | 7.46 | 9.03 | |
| Speed governor | ||||
| 80 | 16072335CR | 64.67 | 78.25 | |
| Light Conductor | ||||
| 82 | 1615510000 | 2.08 | 2.52 | |
| Auxiliary Handle | ||||
| 84 | 160202508D | 16.79 | 20.32 | |
| Hex Screw | ||||
| 86 | 2911021267 | 3.44 | 4.16 | |
| Tension strap | ||||
| 87 | 1619PS5393 | 12.00 | 14.52 | |
| No longer available, no replacement | ||||
| 88 | 1619P16922 | |||
| Clamping Piece | ||||
| 89 | 1600A00748 | 2.86 | 3.46 | |
| O-Ring | ||||
| 103 | 1610210122 | 6.73 | 8.14 | |
| O-Ring | ||||
| 104 | 1610210123 | 2.86 | 3.46 | |
| Bushing | ||||
| 111 | 3610501500 | 21.30 | 25.77 | |
| Threaded Ring | ||||
| 112 | 3613461500 | 11.37 | 13.76 | |
| Spacer | ||||
| 113 | 1610009007 | 2.08 | 2.52 | |
| O-Ring | ||||
| 114 | 1610210139 | 2.40 | 2.90 | |
| Protective Cap | ||||
| 115 | 1610508027 | 2.86 | 3.46 | |
| Needle-Roller Assembly | ||||
| 123 | 1610913013 | 8.35 | 10.10 | |
| Thrust Bearing Disc | ||||
| 124/1 | 1610101608 | 2.08 | 2.52 | |
| Torx Oval-Head Screw | ||||
| 125 | 1613435010 | 2.08 | 2.52 | |
| Screw | ||||
| 126 | 2603490022 | 1.00 | 1.21 | |
| Microencapsulated Screw | ||||
| 127 | 2914551117 | 1.49 | 1.80 | |
| Screw and washer assembly | ||||
| 129 | 1613433001 | 1.00 | 1.21 | |
| Manufacturer's nameplate | ||||
| 131 | 160111C1VG | 2.18 | 2.64 | |
| Torx Oval-Head Screw | ||||
| 136 | 1613490029 | 1.49 | 1.80 | |
| O-Ring | ||||
| 138 | 1610210130 | 7.46 | 9.03 | |
| Felt Washer | ||||
| 139 | 1610108020 | 7.46 | 9.03 | |
| Torx Oval-Head Screw | ||||
| 140 | 1613435010 | 2.08 | 2.52 | |
| Rotary shaft lip seal | ||||
| 141 | 1610290028 | 3.44 | 4.16 | |
| Bushing | ||||
| 142 | 1610300063 | 14.94 | 18.08 | |
| Retaining ring | ||||
| 143 | 2916540017 | 1.90 | 2.30 | |
| Supporting Disc | ||||
| 144 | 1610102029 | 3.44 | 4.16 | |
| Grease Tube | ||||
| 661 | 1615430010 | 5.96 | 7.21 | |
| Subassembly | ||||
| 802 | 1607000C3V | 110.30 | 133.46 | |
| Armature | ||||
| 803 | 1614011072 | 197.62 | 239.12 | |
| Nameplate | ||||
| 808 | 160111A3H3 | 2.40 | 2.90 | |
| Needle-Roller Assembly | ||||
| 823 | 1617000403 | 21.30 | 25.77 | |
| Ball | ||||
| 824 | 1617000240 | 3.44 | 4.16 | |
| Impact Mechanism Housing | ||||
| 840 | 1617000969 | 219.55 | 265.66 | |
| Brush Holder | ||||
| 842 | 1600A005AF | 43.12 | 52.18 | |
| Brush Guide | ||||
| 842/020 | 1614336017 | 11.37 | 13.76 | |
| Spiral Spring | ||||
| 842/030 | 1614652004 | 7.46 | 9.03 | |
| Carbon-Brush Set | ||||
| 842/050 | 1607000481 | 122.80 | 148.59 | |
| Carbon-Brush Set | ||||
| 842/050 | 1617014126 | 13.13 | 15.89 | |
| Tapping Screw | ||||
| 842/080 | 2910611012 | 2.08 | 2.52 | |
| Housing Cover | ||||
| 845 | 1617000418 | 11.37 | 13.76 | |
| Auxiliary Handle | ||||
| 884 | 160202508E | 43.12 | 52.18 | |
| Hex Screw | ||||
| 886 | 2911011270 | 4.18 | 5.06 | |
| Clamping Band | ||||
| 887 | 1617000188 | 9.67 | 11.70 | |
| Clamping Piece | ||||
| 889 | 1618040053 | 3.44 | 4.16 | |
| Catch Disk | ||||
| 890 | 1610190053 | 1.49 | 1.80 | |
| Grease Tube | ||||
| 892 | 1615430014 | 10.90 | 13.19 | |
| Oil Return Ring | ||||
| 895 | 3613344500 | 9.67 | 11.70 | |
| Wear and Tear Part Set | ||||
| 897 | 1617000189 | 39.14 | 47.36 | |
| Wear and Tear Part Set | ||||
| 898 | 1617000190 | 64.67 | 78.25 | |
