Here you will find all available parts and drawings of the 'Bosch 0601926027 ( GSC9,6V )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

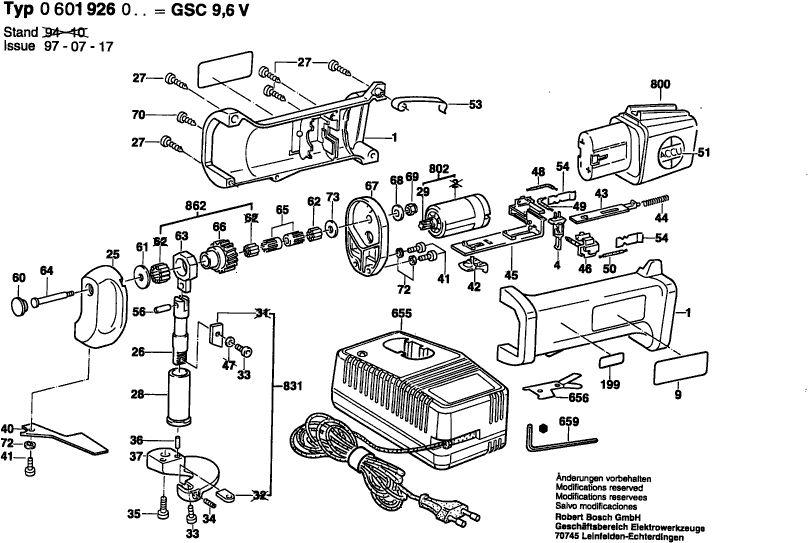

Technical drawing of model Bosch 0601926027 ( GSC9,6V )

Spare parts list of model Bosch 0601926027 ( GSC9,6V )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Housing Section BLUE
1 2605104300 18.19 22.01
On-Off Switch
4 2607200196 8.45 10.22
Nameplate
9 2601110801 2.24 2.71
Gear Housing
25 2605806400 101.94 123.35
Lifting Rod
26 2603070005 36.85 44.59
Screw 4x16
27 2603490022 0.83 1.00
Guide Sleeve
28 2600422000 20.42 24.71
Pinion Z=17
29 2606316117 7.58 9.17
Hex Socket Head Cap Screw DIN 912-M4x8-12.8
33 2910405118 0.83 1.00
Set screw DIN 551-M3,x12-5.8
34 2912031084 0.83 1.00
Socket head cap screw AM 5x16 DIN 84-5.8
35 2910011158 0.83 1.00
Needle Roller A 3x9,8G2DIN 5402
36 1903201041 1.18 1.43
Blade Holder
37 2608042000 168.86 204.32
Chip Deflector
40 2601335004 7.58 9.17
Socket head cap screw DIN 84-AM4x8-8.8
41 2910021118 0.83 1.00
Ratchet Cap
42 F016F05700 1.00 1.21
Adjusting Slide BLUE
43 2601099028 2.71 3.28
Compression Spring
44 1604611026 0.83 1.00
Contact retainer
45 2608018003 1.70 2.06
Contact retainer
46 2608018001 0.83 1.00
Connecting Cable
48 2604412019 1.18 1.43
Connecting Cable L = 52 MM WHITE
49 2604412021 1.70 2.06
Cable
50 2604412020 1.18 1.43
No longer available, no replacement
51 2601110461
No longer available, no replacement
53 2601251003
Contact Spring
54 2601324012 1.18 1.43
Straight Pin
56 2603100000 1.94 2.35
Plug
60 2600522012 1.94 2.35
Shim
61 2600100519 1.18 1.43
Connecting Rod
63 2602001000 36.85 44.59
Bearing bolt
64 2603151502 7.58 9.17
Needle-Roller Cage
65 2600913034 1.18 1.43
Eccentric Cog Wheel
66 2606316118 44.82 54.23
Intermediate Flange
67 2605700227 67.25 81.37
Shim DIN 9021-A4,3-ST
68 2916010882 1.18 1.43
Hex Nut DIN 985-M4-8
69 2915061002 0.83 1.00
Torx Oval-Head Screw 4x12
70 2603490021 0.83 1.00
Spring Lock Washer DIN 128-A4-FST
72 2916690003 0.83 1.00
Shim 0,5 MM
73 2600100628 1.18 1.43
Fast Charger EU 230/7,2-24V, 1h
655 2607224425 130.32 157.69
Fast Charger USA 120/7,2-24V, 1h
655 2607224431 130.32 157.69
Fast Charger J 100/7,2-24V, 1h
655 2607224435 113.29 137.08
Fast Charger EU 230/7,2-14,4V, 30 MIN.
655 2607224701 101.94 123.35
Fast Charger GB 230/7,2-14,4V, 30 MIN.
655 2607224703 101.94 123.35
Fast Charger GB 230/7,2-24V, 1h
655 2607224427 91.56 110.79
Fast Charger AUS 240/7,2-14,4V, 1h
655 2607224443 81.47 98.58
Feeler Gauge
656 2607970009 6.54 7.91
Offset Screwdriver DIN 911, SW3
659 1907950004 4.70 5.69
No longer available, no replacement
800 2607335176
DC motor
802 2607022834 60.65 73.39
No information available, not orderable
831 3607010028
Parts Set 44 PIECE
862 3607010031 6.54 7.91
