Here you will find all available parts and drawings of the 'Bosch 0601500403 ( GSC160 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

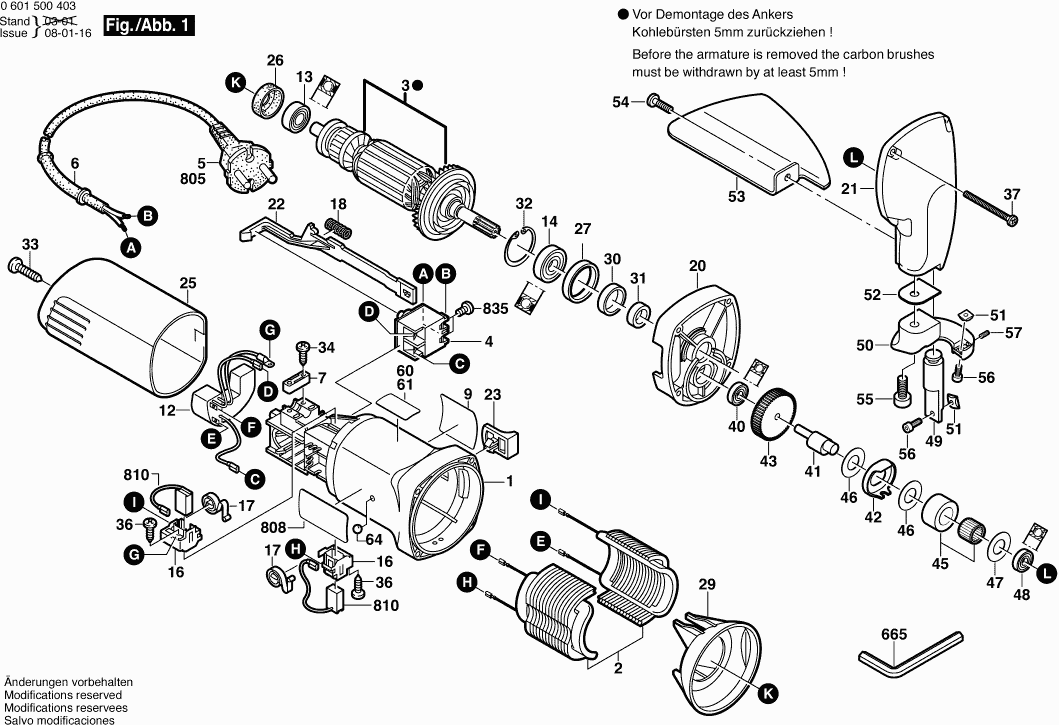

Technical drawing of model Bosch 0601500403 ( GSC160 )
Spare parts list of model Bosch 0601500403 ( GSC160 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 3605102090 | 11.88 | 14.37 | |
| Field 220-240V | ||||
| 2 | 2609160011 | 26.84 | 32.48 | |
| Armature 220-240V | ||||
| 3 | 2604011270 | 49.56 | 59.97 | |
| Switch | ||||
| 4 | 1607200146 | 7.58 | 9.17 | |
| Grommet Ø7,6-Ø8,2x95 MM | ||||
| 6 | 2600703013 | 1.94 | 2.35 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.18 | 1.43 | |
| Manufacturer's nameplate | ||||
| 9 | 3601119178 | 2.71 | 3.28 | |
| Suppression Filter | ||||
| 12 | 3607328016 | 10.73 | 12.98 | |
| Ball Bearing 7x19x6 | ||||
| 13 | 2600905032 | 4.10 | 4.96 | |
| groove ball bearing 9x24x7 | ||||
| 14 | 2600905021 | 6.54 | 7.91 | |
| Brush Holder | ||||
| 16 | 1619P01811 | 2.24 | 2.71 | |
| Spiral Spring | ||||
| 17 | 1604652013 | 1.18 | 1.43 | |
| Compression Spring | ||||
| 18 | 1604611031 | 2.24 | 2.71 | |
| Intermediate Flange | ||||
| 20 | 3605700162 | 44.82 | 54.23 | |
| Transmission Case | ||||
| 21 | 3605106105 | 55.25 | 66.85 | |
| Adjusting Slide | ||||
| 22 | 1602319009 | 1.94 | 2.35 | |
| Switch Handle BLACK | ||||
| 23 | 1602026068 | 1.94 | 2.35 | |
| Housing Cover | ||||
| 25 | 3605500163 | 7.58 | 9.17 | |
| Intermediate Ring | ||||
| 26 | 1600502024 | 1.70 | 2.06 | |
| Rubber Ring | ||||
| 27 | 3600206015 | 1.70 | 2.06 | |
| Air-Deflector Ring | ||||
| 29 | 1600591023 | 1.94 | 2.35 | |
| Rotary shaft lip seal | ||||
| 30 | 3600929037 | 4.70 | 5.69 | |
| Seal Bushing | ||||
| 31 | 2600300047 | 1.94 | 2.35 | |
| Spring retaining ring | ||||
| 32 | 3600283046 | 1.94 | 2.35 | |
| Torx Oval-Head Screw 4x12 | ||||
| 33 | 2603490021 | 0.83 | 1.00 | |
| Screw 4x16 | ||||
| 34 | 2603490022 | 0.83 | 1.00 | |
| Lens Head Screw 3x10 ST | ||||
| 36 | 1613435034 | 0.83 | 1.00 | |
| Lens Head Screw 4x32 | ||||
| 37 | 2603490026 | 0.83 | 1.00 | |
| groove ball bearing 5x16x5 | ||||
| 40 | 3600905141 | 4.10 | 4.96 | |
| Eccentric Shaft | ||||
| 41 | 3600109016 | 15.71 | 19.01 | |
| U-Sheet | ||||
| 42 | 3602311052 | 3.31 | 4.01 | |
| Cylindrical Gear | ||||
| 43 | 3606316096 | 7.58 | 9.17 | |
| Track-Supporting Roller | ||||
| 45 | 3600905158 | 18.19 | 22.01 | |
| Shim ring | ||||
| 46 | 3600102049 | 1.94 | 2.35 | |
| Shim ring | ||||
| 47 | 3600102050 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 48 | 1900900228 | |||
| Tappet | ||||
| 49 | 3602317041 | 20.42 | 24.71 | |
| Cutting Table | ||||
| 50 | 3606455042 | 67.25 | 81.37 | |
| Set of knives | ||||
| 51 | 3607031834 | 60.65 | 73.39 | |
| Plain Washer 0,2 mm | ||||
| 52 | 3602311047 | 1.94 | 2.35 | |
| Plain Washer 0,4mm | ||||
| 52 | 3602311048 | 1.18 | 1.43 | |
| Plain Washer 0,6mm | ||||
| 52 | 3602311049 | 1.18 | 1.43 | |
| Chip Deflector | ||||
| 53 | 3607233025 | 18.19 | 22.01 | |
| Thread-forming tap. Screw DIN 7500-UM5x10-ST | ||||
| 54 | 3603391007 | 1.94 | 2.35 | |
| Hex Socket Head Cap Screw DIN 912-M10x20-12.9 | ||||
| 55 | 2910401289 | 1.18 | 1.43 | |
| Hex Socket Head Cap Screw DIN 912-M4x8-12.9 | ||||
| 56 | 2910401118 | 1.94 | 2.35 | |
| Set screw | ||||
| 57 | 3603435056 | 3.31 | 4.01 | |
| Ball BLUE | ||||
| 64 | 2603230001 | 1.18 | 1.43 | |
| Offset Screwdriver DIN 911, SW3 | ||||
| 665 | 1907950004 | 4.70 | 5.69 | |
| Power supply cord | ||||
| 805 | 1607000391 | 13.93 | 16.86 | |
| Nameplate | ||||
| 808 | 3601110451 | 3.31 | 4.01 | |
| Carbon-Brush Set | ||||
| 810 | 3604321039 | 13.93 | 16.86 | |
| Oval-Head Screw | ||||
| 835 | 2910641082 | 0.83 | 1.00 | |
