Here you will find all available parts and drawings of the 'Bosch 0601500103 ( GSC1,6 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

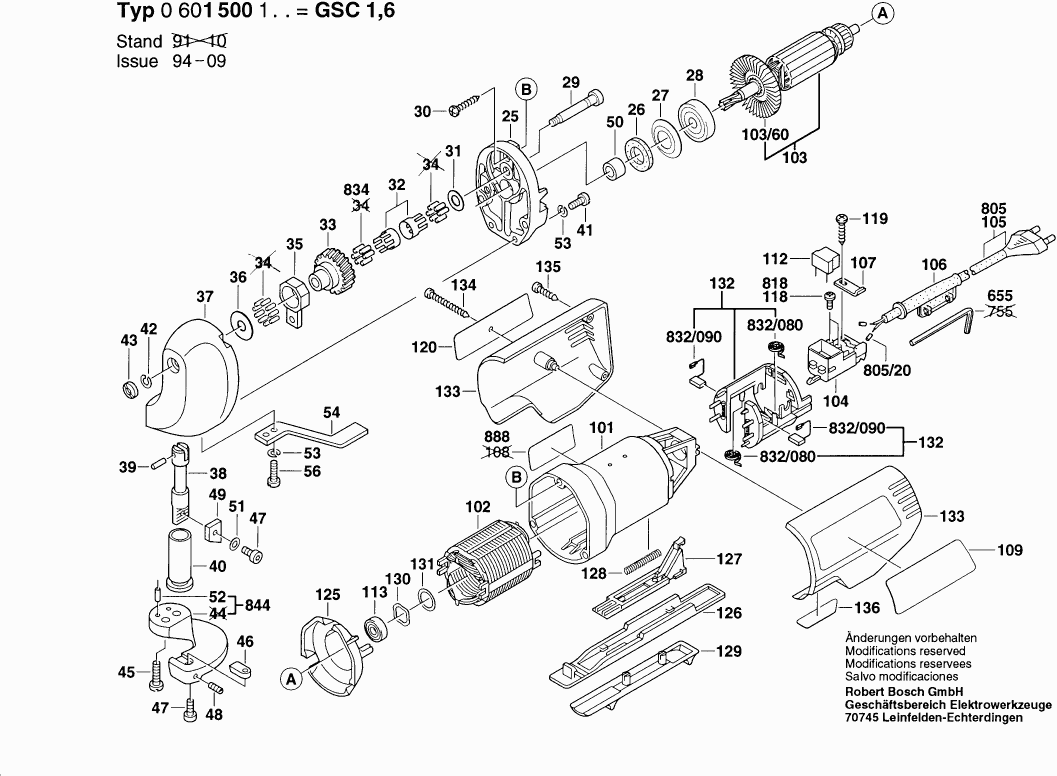

Technical drawing of model Bosch 0601500103 ( GSC1,6 )

Spare parts list of model Bosch 0601500103 ( GSC1,6 )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Bearing Flange
25 2605700077 60.65 73.39
Felt Washer
26 2600108026 1.18 1.43
Cupped Washer
27 2600500017 0.83 1.00
groove ball bearing 9x24x7 MM
28 3600905039 9.53 11.53
Bearing bolt
29 2603520001 11.88 14.37
Tapping Screw DIN 7971-B 3,9x19
30 2910211220 1.18 1.43
Shim 0,5 MM
31 2600100628 1.18 1.43
Needle-Roller Cage
32 2600913034 1.18 1.43
Eccentric Cog Wheel Z=43
33 2606319040 44.82 54.23
Connecting Rod
35 2602001000 36.85 44.59
Shim
36 2600100519 1.18 1.43
Gear Housing
37 3605806161 73.72 89.20
Lifting Rod
38 2603070005 36.85 44.59
Straight Pin
39 2603100000 1.94 2.35
Guide Sleeve
40 2600422000 20.42 24.71
Socket head cap screw DIN 84-AM4x10-5.8
41 2910011120 0.83 1.00
Spring Lock Washer DIN 128-A5-FST
42 2916690004 1.18 1.43
Round Nut
43 2603341002 1.70 2.06
Socket head cap screw AM 5x14 DIN-84-5.8
45 2910011156 1.18 1.43
No information available, not orderable
46 3607010028
Hex Socket Head Cap Screw DIN 912-M4x8-12.8
47 2910405118 0.83 1.00
Set screw DIN 551-M3,x12-5.8
48 2912031084 0.83 1.00
No information available, not orderable
49 3607010028
Seal Bushing
50 2600300047 1.94 2.35
Plain Washer DIN 125-A4,3-ST
51 2916011010 0.83 1.00
Needle Roller A 3x7,8G2DIN 5402
52 1903201040 0.83 1.00
Spring Lock Washer DIN 128-A4-FST
53 2916690003 0.83 1.00
Chip Deflector
54 2601335004 7.58 9.17
Socket head cap screw DIN 84-AM4x8-8.8
56 2910021118 0.83 1.00
Motor Housing BLUE
101 2605108060 11.88 14.37
Field 220-230V
102 2604220502 29.75 36.00
Armature 220-230V
103 2604010846 49.56 59.97
Fan
103/60 2606610064 2.24 2.71
Switch
104 2607200286 11.88 14.37
Grommet Ø8,3-Ø9,4x95 MM
106 2600703011 2.24 2.71
Fastening Clamp
107 1601302017 0.83 1.00
Sticker SUNNY SIDE
109 3601110348 1.70 2.06
Switch
112 2607200286 11.88 14.37
Ball Bearing 7x19x6
113 2600905032 4.10 4.96
Socket head cap screw M3,5x7 MM
118 1603429002 0.83 1.00
Tapping Screw DIN 7971-BZ3,5x13
119 2910211011 0.83 1.00
Sticker SHADOW SIDE
120 3601110351 2.24 2.71
Cover Disc
125 2601328002 2.24 2.71
Switch Rocker BLUE
126 2608001005 2.24 2.71
Switch Slide
127 2608001008 1.70 2.06
Compression Spring
128 2604611033 1.70 2.06
Switch Handle BLACK
129 2608001010 2.24 2.71
Shim
130 2600150003 1.70 2.06
Shim 0,3 MM
131 2600101617 1.18 1.43
Brush Holder
132 3604336010 49.56 59.97
Housing Cover BLUE
133 2605104339 11.88 14.37
Tapping Screw DIN 7971-B3,9x45
134 2910211283 1.94 2.35
Tapping Screw DIN 7971-BZ2,9x16
135 2910211007 1.18 1.43
Sticker
136 3601110206 2.24 2.71
Offset Screwdriver DIN 911, SW3
755 1907950004 4.70 5.69
Feeler Gauge
756 2607970009 6.54 7.91
Power supply cord EU 4,15m 2 x 1,0mm H07 RN-F
805 1607000227 20.42 24.71
Socket head cap screw M 3,5x7 MM
818 3607030229 4.70 5.69
Spiral Spring
832/080 1604652013 1.18 1.43
Carbon-Brush Set
832/090 160701417J 7.58 9.17
Parts Set 44 PIECE
834 3607010031 6.54 7.91
Blade Holder
844 2608042000 168.86 204.32
Nameplate
888 160111A3H3 1.94 2.35
