Here you will find all available parts and drawings of the 'Bosch 3601JS0180 ( GSB18V-52 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

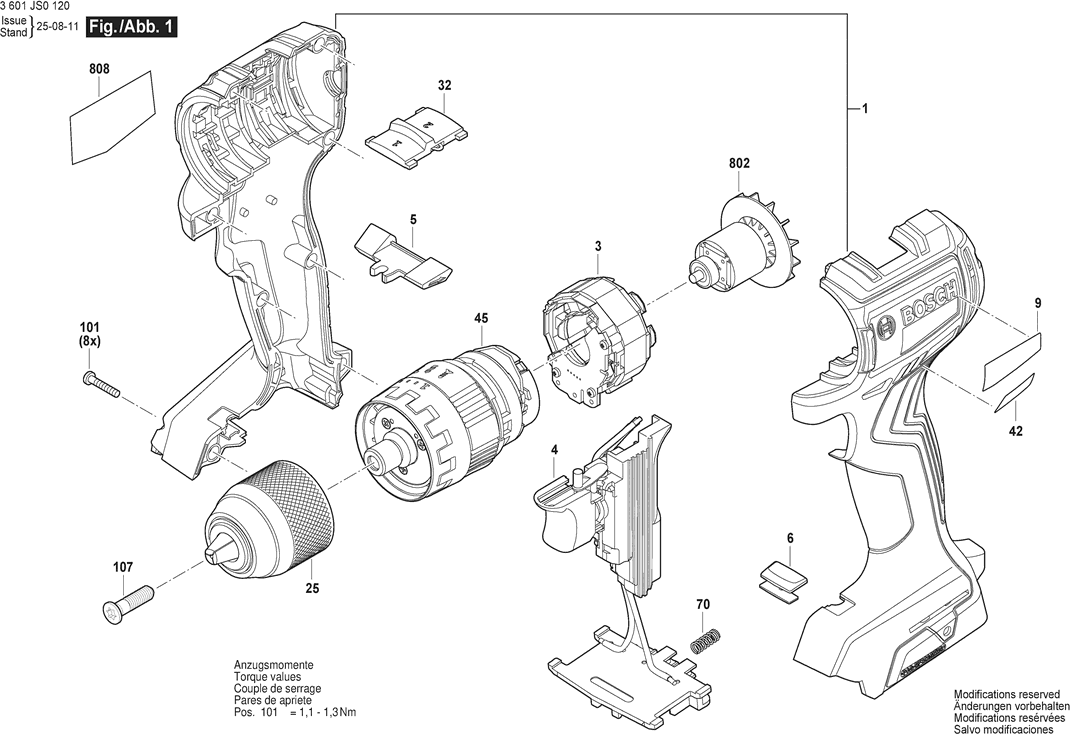

Technical drawing of model Bosch 3601JS0180 ( GSB18V-52 )
Spare parts list of model Bosch 3601JS0180 ( GSB18V-52 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 1605806754 | 16.79 | 20.32 | |
| Stator | ||||
| 3 | 1600A03MG4 | 16.79 | 20.32 | |
| Electronics Module | ||||
| 4 | 1600A03MG5 | 47.53 | 57.51 | |
| Changeover Lever | ||||
| 5 | 1619PS1174 | 2.08 | 2.52 | |
| Lens | ||||
| 6 | 2609100858 | 1.49 | 1.80 | |
| Manufacturer's nameplate | ||||
| 9 | 160111C6Z6 | 5.81 | 7.03 | |
| Keyless Chuck | ||||
| 25 | 1619PS1119 | 12.82 | 15.51 | |
| Switchover Unit | ||||
| 32 | 1600A0291C | 1.49 | 1.80 | |
| Sticker | ||||
| 42 | 160111C6Z7 | 4.18 | 5.06 | |
| Gear Box | ||||
| 45 | 1600A03MG7 | 27.81 | 33.65 | |
| Compression Spring | ||||
| 70 | 1609280477 | 1.49 | 1.80 | |
| Torx Flat-Head Screw | ||||
| 101 | 2609110201 | 2.08 | 2.52 | |
| Countersunk-Head Screw | ||||
| 107 | 2603421229 | 1.49 | 1.80 | |
| Motor Spare Parts Set | ||||
| 802 | 1600A03NS0 | 23.90 | 28.92 | |
| Nameplate | ||||
| 808 | 160111AF0G | 8.35 | 10.10 | |
