Here you will find all available parts and drawings of the 'Bosch 0601937703 ( GSB9,6VES-2 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

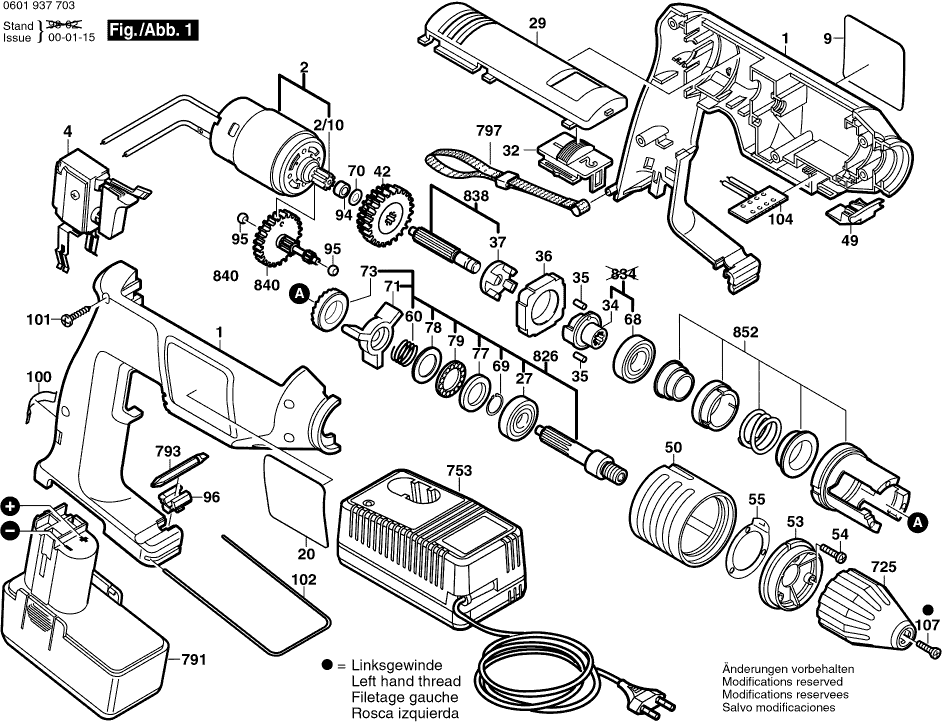

Technical drawing of model Bosch 0601937703 ( GSB9,6VES-2 )
Spare parts list of model Bosch 0601937703 ( GSB9,6VES-2 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section BLUE | ||||
| 1 | 2605104424 | 12.41 | 15.02 | |
| DC motor 9,6V | ||||
| 2 | 2607022929 | 33.45 | 40.47 | |
| Pinion Z=14 | ||||
| 2/10 | 2606316144 | 4.70 | 5.69 | |
| No longer available, no replacement | ||||
| 4 | 2607200309 | |||
| Sticker SUNNY SIDE | ||||
| 9 | 2601118538 | 2.24 | 2.71 | |
| Sticker SHADOW SIDE | ||||
| 20 | 2601118539 | 2.24 | 2.71 | |
| groove ball bearing | ||||
| 27 | 1900905127 | 22.36 | 27.06 | |
| Insert Piece BLACK | ||||
| 29 | 2605510136 | 2.24 | 2.71 | |
| Adjusting Slide BLACK | ||||
| 32 | 2601099056 | 1.18 | 1.43 | |
| Eccentric | ||||
| 34 | 2602210014 | 9.53 | 11.53 | |
| Roller Body | ||||
| 35 | 2602329024 | 1.18 | 1.43 | |
| Retaining snap ring | ||||
| 36 | 2600202025 | 4.70 | 5.69 | |
| Carrier | ||||
| 37 | 2606440003 | 2.71 | 3.28 | |
| Cylindrical Gear Z=58/67 | ||||
| 42 | 1609340007 | 11.88 | 14.37 | |
| Insert Piece BLACK | ||||
| 49 | 2605510117 | 1.18 | 1.43 | |
| Setting Ring | ||||
| 50 | 2605190037 | 2.71 | 3.28 | |
| Cover Disc | ||||
| 53 | 2608005046 | 1.94 | 2.35 | |
| Thread-forming tap. Screw M4x12 MM | ||||
| 54 | 2603490008 | 1.18 | 1.43 | |
| Catch Disk | ||||
| 55 | 2600190056 | 1.18 | 1.43 | |
| Compression Spring | ||||
| 60 | 2604618001 | 1.18 | 1.43 | |
| groove ball bearing 15x32x9 | ||||
| 68 | 1900905122 | 7.58 | 9.17 | |
| Spring retaining ring DIN 471-10x1MM-FSt | ||||
| 69 | 2916650001 | 1.94 | 2.35 | |
| Shim 1,0 MM | ||||
| 70 | 2600100569 | 1.18 | 1.43 | |
| Backup ring | ||||
| 71 | 2600290023 | 2.71 | 3.28 | |
| Catch Disk | ||||
| 73 | 2606490060 | 2.24 | 2.71 | |
| Corrugated Washer | ||||
| 77 | 2600190064 | 8.45 | 10.22 | |
| Thrust Bearing Disc | ||||
| 78 | 2600101516 | 1.94 | 2.35 | |
| Ball Cage | ||||
| 79 | 2600923003 | 2.71 | 3.28 | |
| Sintered-Metal Bushing | ||||
| 94 | 2600301011 | 1.18 | 1.43 | |
| Sintered-Metal Bushing | ||||
| 95 | 2600302013 | 2.24 | 2.71 | |
| Support | ||||
| 96 | 2608040131 | 1.70 | 2.06 | |
| Clamp Spring | ||||
| 100 | 2601322016 | 1.70 | 2.06 | |
| Screw 4x16 | ||||
| 101 | 2603490022 | 0.83 | 1.00 | |
| Retaining Bracket | ||||
| 102 | 2601329041 | 1.18 | 1.43 | |
| Contact retainer | ||||
| 104 | 2608018004 | 4.70 | 5.69 | |
| Countersunk-Head Screw | ||||
| 107 | 2603421008 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 725 | 2608572053 | |||
| Fast Charger EU 230/7,2-24V, 1h | ||||
| 753 | 2607224425 | 130.32 | 157.69 | |
| Fast Charger EU 230/7,2-14,4V, 30 MIN. | ||||
| 753 | 2607224701 | 101.94 | 123.35 | |
| Slide-In Accu Package 9,6V, 1,5 Ah, NiCd | ||||
| 791 | 2607336143 | 101.94 | 123.35 | |
| Screwdriver Blade | ||||
| 793 | 2608521018 | 3.31 | 4.01 | |
| No information available, not orderable | ||||
| 794 | 2607233012 | |||
| No longer available, no replacement | ||||
| 797 | 2601398009 | |||
| No longer available, no replacement | ||||
| 826 | 2606309928 | |||
| Splined Shaft | ||||
| 838 | 2606309918 | 7.58 | 9.17 | |
| Toothed Shaft Z= 10/19/63 | ||||
| 840 | 2606308914 | 15.71 | 19.01 | |
| Guide Sleeve | ||||
| 852 | 2600499903 | 20.42 | 24.71 | |
| No information available, not orderable | ||||
| 899 | 0601937727 | |||
