Here you will find all available parts and drawings of the 'Bosch 3601A9C801 ( GSB24-2 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

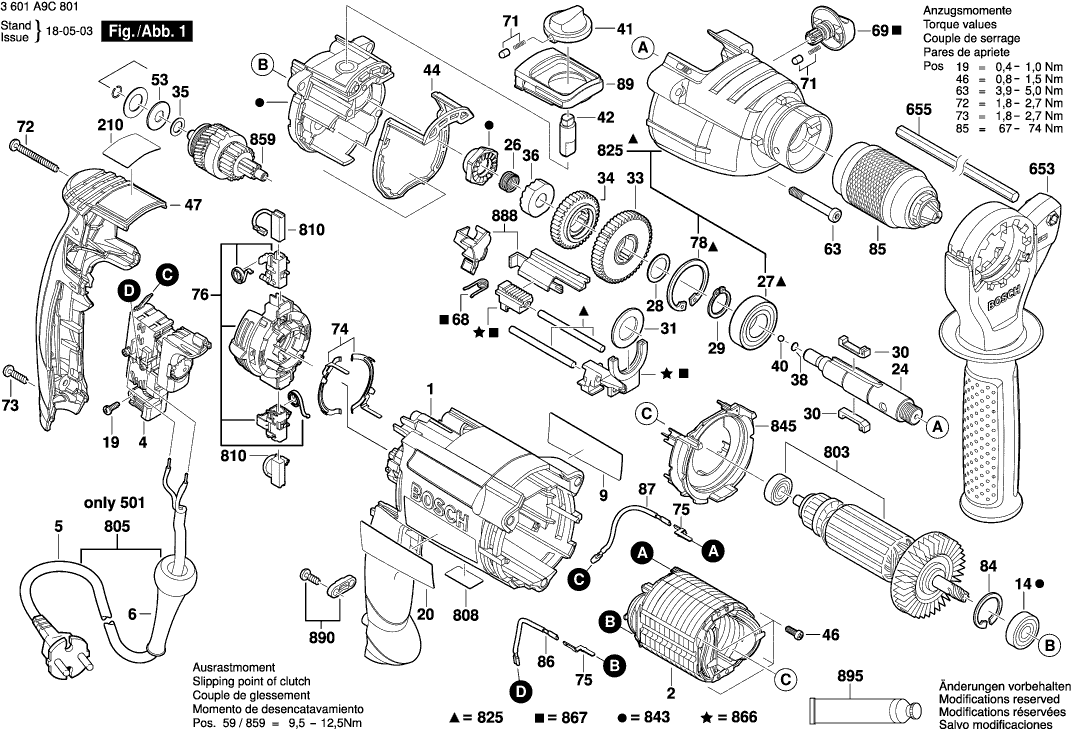

Technical drawing of model Bosch 3601A9C801 ( GSB24-2 )

Spare parts list of model Bosch 3601A9C801 ( GSB24-2 )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Motor Housing DARK BLUE
1 2605105141 20.42 24.71
Field 230-240V
2 2604220727 20.42 24.71
Switch
4 160720038B 33.45 40.47
Switch
4 160720032L 31.49 38.10
Grommet
6 2600707078 2.24 2.71
Manufacturer's nameplate GSB 24-2
9 160111C2KG 1.94 2.35
Ball Bearing 9x24x7
14 2600905095 9.53 11.53
Torx Oval-Head Screw 3x10
19 2603490017 1.70 2.06
Reference Plate
20 2601115903 1.94 2.35
Drilling Spindle
24 2606135148 20.42 24.71
Compression Spring
26 2604616013 1.94 2.35
groove ball bearing 17x35x10
27 1900905163 8.45 10.22
Shim 0,5 MM
28 2600100695 1.18 1.43
Spring retaining ring DIN 471 17x1 MM
29 2916650008 1.18 1.43
Flat Key
30 2602300032 2.71 3.28
Retaining Washer
31 2600101671 1.18 1.43
Cylindrical Gear
33 2606317086 6.54 7.91
Cylindrical Gear
34 2606317098 9.53 11.53
Shim 0,3 MM
35 2600101047 1.18 1.43
Catch Disk
36 2600190105 1.94 2.35
Shim washer 1,0 MM
38 2600000021 1.18 1.43
Shim washer 1,35 MM
38 2600000030 1.18 1.43
Shim washer 1,7 MM
38 2600000031 1.18 1.43
Ball DIN 5401-5 G28
40 1903230009 0.83 1.00
Ball DIN 5401-5,5MM-III-ST
40 1903230010 0.83 1.00
Ball 5,25 MM
40 2603230007 0.83 1.00
Rotary Knob BLACK
41 2602026168 1.70 2.06
Control Shaft
42 2603120064 2.24 2.71
Seal
44 2601015091 2.71 3.28
Tapping Screw
46 2603435086 1.18 1.43
Housing Cover DARK BLUE
47 2605132070 10.73 12.98
Disc Spring
53 2600550008 1.18 1.43
Headless Screw
63 2603435085 0.83 1.00
Compression Spring
68 2604616014 0.83 1.00
Rotary Knob BLACK
69 2602026117 1.70 2.06
Ratchet Cap
71 2600590006 1.18 1.43
Torx Oval-Head Screw 4x40
72 2603490027 0.83 1.00
Screw 4x16
73 2603490022 0.83 1.00
Switch Contact
74 2601324062 1.18 1.43
Contact
75 2601099260 1.70 2.06
Brush Plate
76 1614336086 13.93 16.86
Spring retaining ring DIN 472 35x1,5 MM
78 2916660014 1.18 1.43
Spring retaining ring DIN 472-24x1,2 MM
84 2916660008 1.70 2.06
Keyless Chuck HSB 4
85 2608572143 60.65 73.39
Key Chuck
85 2608571060 49.56 59.97
Connecting Cable L=80 MM
86 1614448014 1.94 2.35
Connecting Cable L=170
87 1600A014ZP 1.70 2.06
Lens BLACK
89 2605510206 1.94 2.35
Sticker KickBack Control
210 160111C0YY 1.70 2.06
Auxiliary Handle BLACK
653 2602025184 20.42 24.71
Depth-Gauge SW 6x210 MM
655 1613001009 2.71 3.28
Armature 230-240V
803 2604011401 55.25 66.85
Power supply cord EU 230V 4,15m 2 x 1,0mm H05 RN-
805 1607000386 15.71 19.01
Nameplate
808 160111A5RK 1.94 2.35
Carbon-Brush Set 220 V / 127 V
810 1617000525 8.45 10.22
Gear Housing
825 2605806882 44.82 54.23
Bearing Bracket
843 2605700946 36.85 44.59
Air-Deflector Ring
845 2600148016 2.24 2.71
Transmission
859 2606309941 40.61 49.14
Adjusting Slide
866 2602033018 3.31 4.01
Toothed rack
867 2606308925 4.70 5.69
Holding Plate BLACK
888 2601328900 2.24 2.71
Fastening parts kit
890 2607001305 3.31 4.01
Grease Tube Albida
895 3605430003 23.75 28.74
