Here you will find all available parts and drawings of the 'Bosch 0601146503 ( GSB22-2RE )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

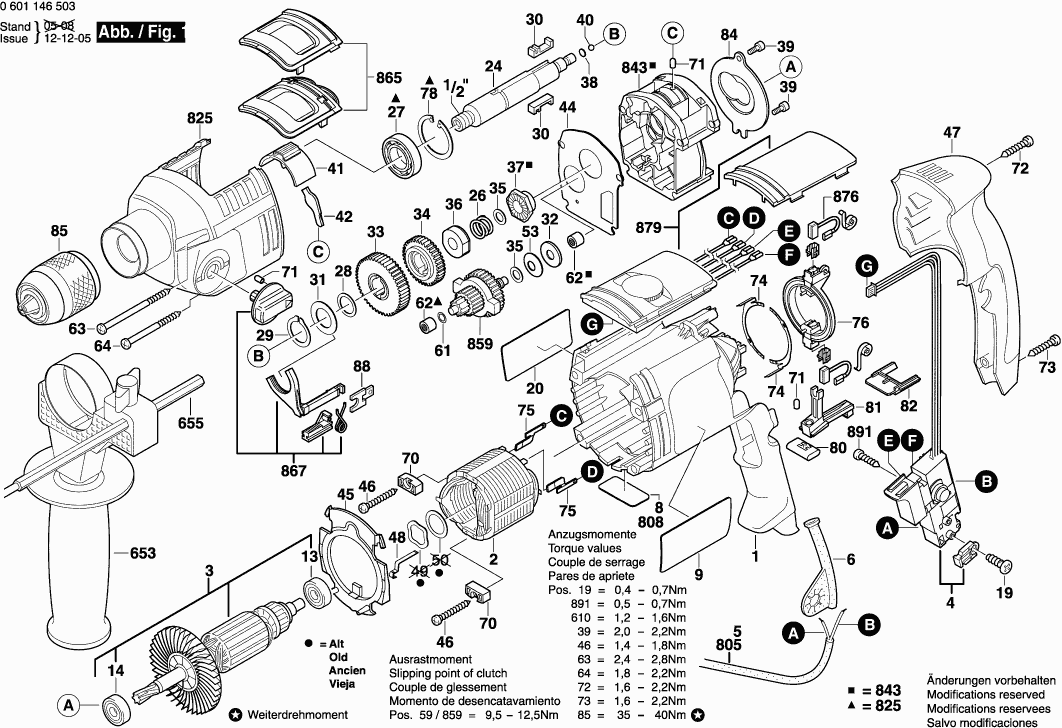

Technical drawing of model Bosch 0601146503 ( GSB22-2RE )

Spare parts list of model Bosch 0601146503 ( GSB22-2RE )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Motor Housing DARK BLUE
1 2605104784 20.42 24.71
No longer available, no replacement
2 1614220136
No longer available, no replacement
3 2604011242
No longer available, no replacement
4 2607200544
No longer available, no replacement
6 2600707066
Manufacturer's nameplate
9 2601116658 1.18 1.43
Ball Bearing 7x19x6
13 2600905032 4.10 4.96
groove ball bearing 9x24x7
14 1610905017 10.73 12.98
Torx Oval-Head Screw 3x10
19 2603490017 1.70 2.06
Reference Plate
20 2601117956 2.24 2.71
Drilling Spindle
24 2606135099 9.53 11.53
Compression Spring
26 2604616013 1.94 2.35
groove ball bearing 17x35x10
27 1900905163 8.45 10.22
Shim 0,5 MM
28 2600100695 1.18 1.43
Spring retaining ring DIN 471 17x1 MM
29 2916650008 1.18 1.43
Flat Key
30 2602300032 2.71 3.28
Retaining Washer
31 2600101671 1.18 1.43
Shim
32 2600101056 1.18 1.43
Cylindrical Gear
33 2606317084 10.73 12.98
Cylindrical Gear
34 2606317098 9.53 11.53
Shim 0,3 MM
35 2600101047 1.18 1.43
No longer available, no replacement
36 2600190090
Catch Disk
37 2600190078 4.10 4.96
Shim washer 1,0 MM
38 2600000021 1.18 1.43
Shim washer 0,2 MM
38 2600000012 0.83 1.00
Shim washer 0,5 MM
38 2600000014 0.83 1.00
Thread-forming tap. Screw M4x8
39 2603410048 1.18 1.43
Ball 5,25 MM
40 2603230007 0.83 1.00
Ball DIN 5401-5 G28
40 1903230009 0.83 1.00
Ball DIN 5401-5,5MM-III-ST
40 1903230010 0.83 1.00
Changeover Lever
41 2602098014 0.83 1.00
Pressure Plate
42 2600114016 1.18 1.43
Gasket
44 2601073014 0.83 1.00
Air Guide Plate
45 2600148007 0.83 1.00
Torx Oval-Head Screw 4x25
46 2603490024 1.18 1.43
Housing Cover DARK BLUE
47 2605132053 4.70 5.69
Contact Spring
48 2601324046 1.18 1.43
Disc Spring
53 2600550008 1.18 1.43
Shim 0,3 MM
61 2600100607 1.18 1.43
Needle-Roller Bearing Ø6 MM
62 2600914010 2.24 2.71
No longer available, no replacement
63 2603435070
Headless Screw
64 2603435077 0.83 1.00
Holding-Down-Appliance
70 2601328068 0.83 1.00
Ratchet Cap
71 2600590006 1.18 1.43
Torx Oval-Head Screw 4x30
72 2603490025 0.83 1.00
Screw 4x16
73 2603490022 0.83 1.00
No longer available, no replacement
74 2601324045
Blade terminal
75 2604477005 0.83 1.00
Brush Plate
76 2604337096 11.88 14.37
Spring retaining ring DIN 472 35x1,5 MM
78 2916660014 1.18 1.43
Change-Over Switch
80 2602099016 1.18 1.43
Carrier Bracket
81 2602319024 0.83 1.00
End stop
82 2602319025 0.83 1.00
Retaining Washer
84 2601098067 1.18 1.43
Keyless Chuck HSB 4
85 2608572143 60.65 73.39
Holding Plate
88 2601328070 0.83 1.00
Auxiliary Handle Ø43 MM
653 2602025118 11.88 14.37
Depth-Gauge SW 6x210 MM
655 1613001009 2.71 3.28
Power supply cord EU 230V 4,15m 2 x 1,0mm H05 RN-
805 1607000386 15.71 19.01
Marking Plate
808 2601117595 1.70 2.06
Gear Housing
825 2605806894 29.75 36.00
Intermediate Flange
843 2605700942 26.84 32.48
Transmission
859 2606309934 40.61 49.14
Transmission
859 1600A00MM2 23.75 28.74
Bulb Shield
865 2605510901 7.58 9.17
Toothed rack
867 2606308923 2.71 3.28
No longer available, no replacement
876 2604321927
Speed governor 230-240V
879 2607230900 44.82 54.23
Cross Recessed-Head Screw M3x5
891 2603410046 1.70 2.06
