Here you will find all available parts and drawings of the 'Bosch 0601192803 ( GSB20-2RET )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

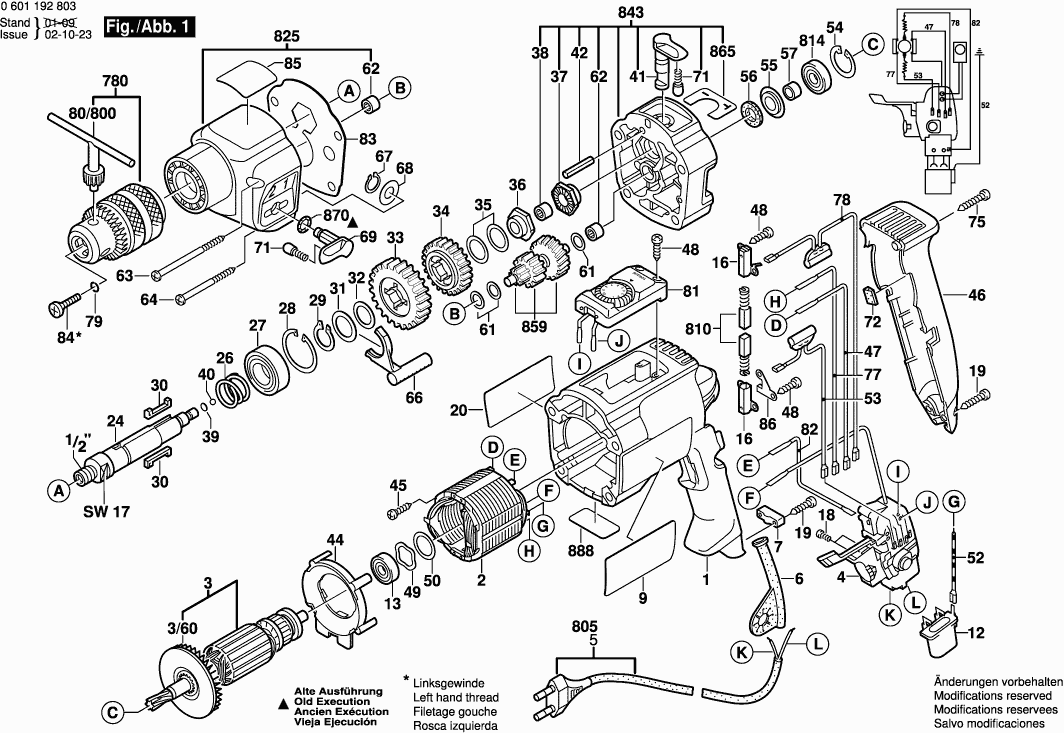

Technical drawing of model Bosch 0601192803 ( GSB20-2RET )
Spare parts list of model Bosch 0601192803 ( GSB20-2RET )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 2605104314 | 19.36 | 23.43 | |
| No longer available, no replacement | ||||
| 2 | 2604220436 | |||
| No longer available, no replacement | ||||
| 3 | 2604010865 | |||
| Fan | ||||
| 3/60 | 2606610029 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 4 | 2607200238 | |||
| Grommet | ||||
| 6 | 2600707059 | 3.44 | 4.16 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.49 | 1.80 | |
| Manufacturer's nameplate | ||||
| 9 | 2601118693 | 2.87 | 3.47 | |
| No longer available, no replacement | ||||
| 12 | 2607329114 | |||
| Ball Bearing | ||||
| 13 | 1900905018 | 16.79 | 20.32 | |
| Brush Holder | ||||
| 16 | 2604337016 | 1.00 | 1.21 | |
| Socket head cap screw | ||||
| 18 | 2603410001 | 1.49 | 1.80 | |
| Screw | ||||
| 19 | 2603490022 | 1.00 | 1.21 | |
| Reference Plate | ||||
| 20 | 2601118697 | 4.12 | 4.99 | |
| No longer available, no replacement | ||||
| 24 | 2606135032 | |||
| Compression Spring | ||||
| 26 | 2604616002 | 1.49 | 1.80 | |
| groove ball bearing | ||||
| 27 | 1900905163 | 10.90 | 13.19 | |
| Spring retaining ring | ||||
| 28 | 2916660014 | 1.49 | 1.80 | |
| Spring retaining ring | ||||
| 29 | 2916650008 | 1.49 | 1.80 | |
| Flat Key | ||||
| 30 | 2602300028 | 4.94 | 5.98 | |
| Retaining Washer | ||||
| 31 | 2600101671 | 1.49 | 1.80 | |
| Shim | ||||
| 32 | 2600101515 | 1.00 | 1.21 | |
| Cylindrical Gear | ||||
| 33 | 2606317045 | 10.90 | 13.19 | |
| Cylindrical Gear | ||||
| 34 | 2606317037 | 27.81 | 33.65 | |
| Shim | ||||
| 35 | 2600101616 | 2.86 | 3.46 | |
| Shim | ||||
| 35 | 2600101617 | 1.49 | 1.80 | |
| Catch Disk | ||||
| 36 | 2600190052 | 6.73 | 8.14 | |
| No longer available, no replacement | ||||
| 37 | 2600190057 | |||
| Needle-Roller Bearing | ||||
| 38 | 2600917003 | 2.86 | 3.46 | |
| Shim washer | ||||
| 39 | 2600000012 | 1.00 | 1.21 | |
| Shim washer | ||||
| 39 | 2600000014 | 1.00 | 1.21 | |
| Ball | ||||
| 40 | 1903230010 | 1.00 | 1.21 | |
| Rotary Knob | ||||
| 41 | 2602026017 | 7.46 | 9.03 | |
| Slotted Spring Pin | ||||
| 42 | 2917780105 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 44 | 2601328033 | |||
| Tapping Screw | ||||
| 45 | 2603435086 | 1.32 | 1.60 | |
| Housing Cover | ||||
| 46 | 2605132049 | 6.22 | 7.53 | |
| Connecting Cable | ||||
| 47 | 2604448145 | 1.49 | 1.80 | |
| Torx Oval-Head Screw | ||||
| 48 | 2603490017 | 2.08 | 2.52 | |
| Shim | ||||
| 49 | 2600150004 | 2.08 | 2.52 | |
| Shim washer | ||||
| 50 | 2600101027 | 1.49 | 1.80 | |
| Shim washer | ||||
| 50 | 2600101667 | 1.49 | 1.80 | |
| Earth Conductor | ||||
| 52 | 2604448103 | 1.00 | 1.21 | |
| Suppression Filter | ||||
| 53 | 2604465086 | 5.81 | 7.03 | |
| Spring retaining ring | ||||
| 54 | 2916660008 | 2.08 | 2.52 | |
| Cupped Washer | ||||
| 55 | 2600500002 | 1.49 | 1.80 | |
| Felt Washer | ||||
| 56 | 2600108077 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 57 | 2600400008 | |||
| Shim | ||||
| 61 | 2600100607 | 1.49 | 1.80 | |
| Needle-Roller Bearing | ||||
| 62 | 2600914010 | 2.86 | 3.46 | |
| No longer available, no replacement | ||||
| 63 | 2603435070 | |||
| No longer available, no replacement | ||||
| 64 | 2603435071 | |||
| Adjusting Slide | ||||
| 66 | 2602033006 | 2.86 | 3.46 | |
| Locking washer | ||||
| 67 | 2916080007 | 2.40 | 2.90 | |
| Shim washer | ||||
| 68 | 2600100618 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 69 | 2602026038 | |||
| Ratchet Cap | ||||
| 71 | 2600590006 | 1.49 | 1.80 | |
| Insert | ||||
| 72 | 2601010049 | 1.49 | 1.80 | |
| Torx Oval-Head Screw | ||||
| 75 | 2603490024 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 77 | 2604448137 | |||
| No longer available, no replacement | ||||
| 78 | 2604465087 | |||
| Retaining ring | ||||
| 79 | 2604601004 | 1.49 | 1.80 | |
| Chuck Wrench | ||||
| 80/800 | 2607950007 | 6.73 | 8.14 | |
| Torque Control | ||||
| 81 | 2607233006 | 31.42 | 38.02 | |
| Connecting Cable | ||||
| 82 | 2604448004 | 1.49 | 1.80 | |
| Gasket | ||||
| 83 | 2601073012 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 84 | 2603421213 | |||
| Sticker | ||||
| 85 | 2601110929 | 2.40 | 2.90 | |
| Plate | ||||
| 86 | 2600034003 | 3.44 | 4.16 | |
| Auxiliary Handle | ||||
| 753 | 1619PB4323 | 9.67 | 11.70 | |
| Hex Nut | ||||
| 753/20 | 2915011007 | 1.00 | 1.21 | |
| Wing Screw | ||||
| 753/30 | 1613480007 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 753/40 | 2607000122 | |||
| No longer available, no replacement | ||||
| 753/50 | 2608040014 | |||
| Wing Screw | ||||
| 753/60 | 1613480008 | 1.49 | 1.80 | |
| Depth-Gauge | ||||
| 754 | 2603001019 | 1.00 | 1.21 | |
| Key Chuck | ||||
| 780 | 1608571080 | 36.62 | 44.31 | |
| Power supply cord | ||||
| 805 | 1607000385 | 13.13 | 15.89 | |
| Carbon-Brush Set | ||||
| 810 | 2604321905 | 9.67 | 11.70 | |
| Ball Bearing | ||||
| 814 | 2600905095 | 11.37 | 13.76 | |
| Gear Housing | ||||
| 825 | 2605806990 | 19.36 | 23.43 | |
| Intermediate Flange | ||||
| 843 | 2605700936 | 58.03 | 70.22 | |
| No longer available, no replacement | ||||
| 859 | 2606100914 | |||
| Sticker | ||||
| 865 | 2601110076 | 1.49 | 1.80 | |
| Parts Set | ||||
| 870 | 2607010226 | 1.49 | 1.80 | |
| Nameplate | ||||
| 888 | 160111A3H3 | 2.40 | 2.90 | |
