Here you will find all available parts and drawings of the 'Bosch 0601198703 ( GSB20-2RE )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

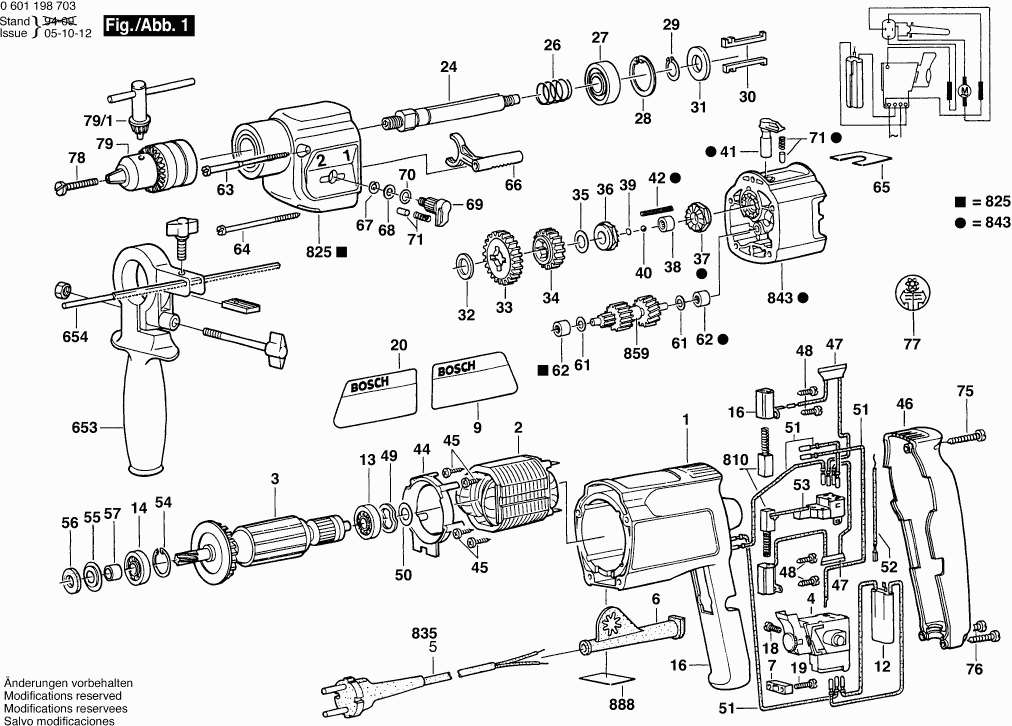

Technical drawing of model Bosch 0601198703 ( GSB20-2RE )

Spare parts list of model Bosch 0601198703 ( GSB20-2RE )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Motor Housing BLUE
1 2605104116 20.42 24.71
Field 220-230V
2 2604220429 20.42 24.71
Armature 230-240V
3 2604010858 44.82 54.23
Switch
4 2607200202 33.45 40.47
Grommet Ø6,9 MM
6 2600707059 2.24 2.71
Grommet Ø8,8 MM
6 2600707061 1.94 2.35
Cable Clip
7 2601035001 1.18 1.43
Sticker
9 2601110312 1.18 1.43
Suppression Filter
12 2607329096 5.83 7.05
Ball Bearing 7x22x7
13 1900905018 13.93 16.86
groove ball bearing 9x24x7
14 2600905021 6.54 7.91
Brush Holder
16 2604337003 1.70 2.06
Connecting Cable L=52MM WHITE
16 2604448016 1.18 1.43
Connecting Cable L=88 MM WHITE
16 2604448034 1.18 1.43
Socket head cap screw M3x6,5-4.8
18 2603410001 1.18 1.43
Screw 4x16
19 2603490022 0.83 1.00
Sticker
20 2601110093 1.18 1.43
No longer available, no replacement
24 2606135013
Compression Spring
26 2604616002 1.18 1.43
groove ball bearing 17x35x10
27 1900905163 8.45 10.22
Spring retaining ring DIN 472 35x1,5 MM
28 2916660014 1.18 1.43
Spring retaining ring DIN 471 17x1 MM
29 2916650008 1.18 1.43
Flat Key
30 2602300028 4.10 4.96
Retaining Washer
31 2600101671 1.18 1.43
Shim 1,0 MM
32 2600101515 0.83 1.00
Cylindrical Gear Z=48
33 2606317045 8.45 10.22
Cylindrical Gear Z=36
34 2606317037 23.75 28.74
Shim 0,5 MM
35 2600101616 2.24 2.71
Shim 0,3 MM
35 2600101617 1.18 1.43
Catch Disk
36 2600190052 5.33 6.45
Catch Disk
37 2600190051 8.45 10.22
Needle-Roller Bearing Ø8x8 MM
38 2600917003 2.24 2.71
Shim washer 0,2 MM
39 2600000012 0.83 1.00
Shim washer 0,5 MM
39 2600000014 0.83 1.00
Ball DIN 5401-5,5MM-III-ST
40 1903230010 0.83 1.00
Rotary Knob
41 2602026017 5.83 7.05
Slotted Spring Pin 4x30 MM DIN 7346
42 2917780105 0.83 1.00
No longer available, no replacement
44 2601328033
Cross Recessed-Head Screw DIN 7981-ST3,5x9,5-F
45 2603435015 1.70 2.06
Housing Cover BLUE
46 2605132040 6.54 7.91
Suppressor Box L=93/85 MM
47 2604465071 5.33 6.45
Connecting Cable L=88 MM WHITE
47 2604448034 1.18 1.43
Torx Oval-Head Screw 3x10
48 2603490017 1.70 2.06
Shim
49 2600150004 1.70 2.06
Shim 0,5 MM
50 2600101020 1.18 1.43
Shim 0,2 MM
50 2600101022 1.18 1.43
Shim 0,3 MM
50 2600101023 1.18 1.43
Cable L=130 MM WHITE
51 2604448005 1.18 1.43
Cable
52 2604448003 1.70 2.06
No longer available, no replacement
53 2607200198
Spring retaining ring DIN 472-24x1,2 MM
54 2916660008 1.70 2.06
Cupped Washer
55 2600500002 1.18 1.43
Felt Washer
56 2600108077 1.18 1.43
Receptacle
57 2600400008 1.18 1.43
Shim 0,3 MM
61 2600100607 1.18 1.43
Needle-Roller Bearing Ø6 MM
62 2600914010 2.24 2.71
Tapping Screw 79 MM
63 2603435012 1.18 1.43
No longer available, no replacement
64 2603435071
Sticker DRILL/IMPACT DRILL
65 2601110076 1.18 1.43
Adjusting Slide
66 2602033006 2.24 2.71
Locking Washer DIN 6799-4-FSt
67 2916080007 1.94 2.35
Shim washer
68 2600100618 0.83 1.00
No longer available, no replacement
69 2602026038
Parts Set
70 2607010226 1.18 1.43
Ratchet Cap
71 2600590006 1.18 1.43
Torx Oval-Head Screw 4x25
75 2603490024 1.18 1.43
Torx Oval-Head Screw 4x20
76 2603490023 0.83 1.00
Sticker YELLOW
77 2601110230 1.18 1.43
Countersunk-Head Screw M6x27 LEFTHAND THREADS
78 2603421226 1.18 1.43
Chuck Ø1,5-13 MM, 1/2"
79 1608571069 20.42 24.71
Chuck Wrench SG2
79/1 2607950007 5.33 6.45
Auxiliary Handle
653 1619PB4323 7.58 9.17
No longer available, no replacement
654 1613001005
Hex Nut DIN 934-M6-8-A
655 2915011007 0.83 1.00
Wing Screw M6x(15)55
656 1613480007 1.18 1.43
Carbon-Brush Set
810 2604321905 8.45 10.22
Gear Housing BLUE
825 2605806990 18.19 22.01
Power supply cord EU 2,6m 2 x 1,0 mm
835 1607000385 11.88 14.37
Intermediate Flange
843 2605700936 49.56 59.97
Toothed Shaft Z= 10/22/29
859 2606100903 20.42 24.71
Nameplate
888 160111A3H3 1.94 2.35
