Here you will find all available parts and drawings of the 'Bosch 0601194703 ( GSB20-2RE )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

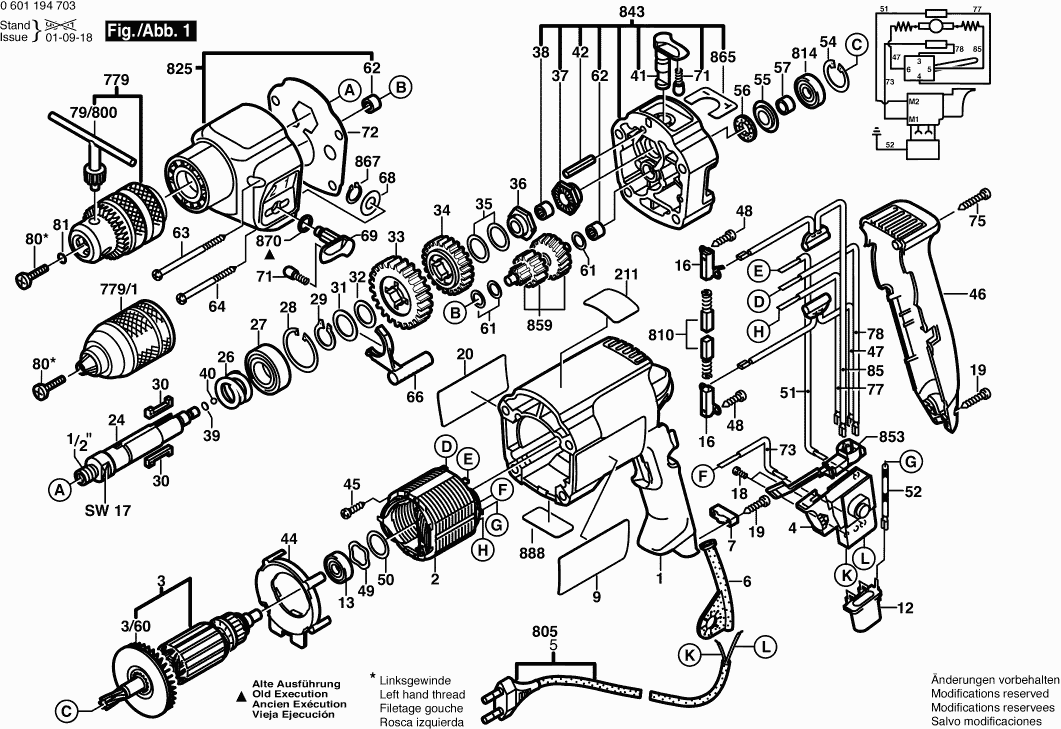

Technical drawing of model Bosch 0601194703 ( GSB20-2RE )

Spare parts list of model Bosch 0601194703 ( GSB20-2RE )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Motor Housing BLUE
1 2605104309 20.42 24.71
Field 220-240V
2 1604220254 18.19 22.01
No longer available, no replacement
3 2604010739
Fan
3/60 2606610029 1.94 2.35
No longer available, no replacement
4 2607200209
Grommet Ø6,9 MM
6 2600707059 2.24 2.71
Cable Clip
7 2601035001 1.18 1.43
Manufacturer's nameplate SUNNY SIDE
9 2601118694 2.71 3.28
No longer available, no replacement
12 2607329114
Ball Bearing 7x22x7
13 1900905018 13.93 16.86
Brush Holder
16 2604337003 1.70 2.06
Socket head cap screw M3x6,5-4.8
18 2603410001 1.18 1.43
Screw 4x16
19 2603490022 0.83 1.00
Reference Plate SHADOW SIDE
20 2601118697 4.10 4.96
No longer available, no replacement
24 2606135032
Compression Spring
26 2604616002 1.18 1.43
groove ball bearing 17x35x10
27 1900905163 8.45 10.22
Spring retaining ring DIN 472 35x1,5 MM
28 2916660014 1.18 1.43
Spring retaining ring DIN 471 17x1 MM
29 2916650008 1.18 1.43
Flat Key
30 2602300028 4.10 4.96
Retaining Washer
31 2600101671 1.18 1.43
Shim 1,0 MM
32 2600101515 0.83 1.00
Cylindrical Gear Z=48
33 2606317045 8.45 10.22
Cylindrical Gear Z=36
34 2606317037 23.75 28.74
Shim 0,5 MM
35 2600101616 2.24 2.71
Shim 0,3 MM
35 2600101617 1.18 1.43
Catch Disk
36 2600190052 5.33 6.45
No longer available, no replacement
37 2600190057
Needle-Roller Bearing Ø8x8 MM
38 2600917003 2.24 2.71
Shim washer 1,35 MM
39 2600000030 1.18 1.43
Shim washer 0,2 MM
39 2600000012 0.83 1.00
Shim washer 0,5 MM
39 2600000014 0.83 1.00
Ball DIN 5401-5,5MM-III-ST
40 1903230010 0.83 1.00
Rotary Knob
41 2602026017 5.83 7.05
Slotted Spring Pin 4x30 MM DIN 7346
42 2917780105 0.83 1.00
No longer available, no replacement
44 2601328033
Tapping Screw
45 2603435086 1.18 1.43
Housing Cover BLUE
46 2605132049 5.83 7.05
Suppression Filter L=126 MM WHITE
47 2604465097 4.70 5.69
Torx Oval-Head Screw 3x10
48 2603490017 1.70 2.06
Shim
49 2600150004 1.70 2.06
Shim washer 0,3 MM
50 2600101027 1.18 1.43
Shim washer 0,2 MM
50 2600101665 1.18 1.43
Shim washer 0,5 MM
50 2600101667 1.18 1.43
Cable L=130 MM WHITE
51 2604448005 1.18 1.43
Earth Conductor
52 2604448097 1.18 1.43
Spring retaining ring DIN 472-24x1,2 MM
54 2916660008 1.70 2.06
Cupped Washer
55 2600500002 1.18 1.43
Felt Washer
56 2600108077 1.18 1.43
Receptacle
57 2600400008 1.18 1.43
Shim 0,3 MM
61 2600100607 1.18 1.43
Needle-Roller Bearing Ø6 MM
62 2600914010 2.24 2.71
No longer available, no replacement
63 2603435070
No longer available, no replacement
64 2603435071
Adjusting Slide
66 2602033006 2.24 2.71
Shim washer
68 2600100618 0.83 1.00
No longer available, no replacement
69 2602026038
Ratchet Cap
71 2600590006 1.18 1.43
Gasket
72 2601073012 0.83 1.00
Connecting Cable L=110 MM WHITE
73 2604448146 1.18 1.43
Torx Oval-Head Screw 4x25
75 2603490024 1.18 1.43
Connecting Cable L=68 MM WHITE
77 2604448100 0.83 1.00
Connecting Cable
78 2604448239 2.24 2.71
Chuck Wrench SG2
79/800 2607950007 5.33 6.45
No longer available, no replacement
80 2603421209
Retaining ring
81 2604601004 1.18 1.43
Suppression Filter L=148 MM BLACK
85 2604465086 4.70 5.69
Auxiliary Handle
753 1619PB4323 7.58 9.17
Hex Nut DIN 934-M6-8-A
753/20 2915011007 0.83 1.00
Wing Screw M6x(15)55
753/30 1613480007 1.18 1.43
No longer available, no replacement
753/50 2608040014
Wing Screw M6x20 MM
753/60 1613480008 1.18 1.43
Diepteaanslag 210
754 2603001019 0.83 1.00
Key Chuck Ø1,5-13 MM
779 1608571080 23.75 28.74
Power supply cord EU 2,6m 2 x 1,0 mm
805 1607000385 11.88 14.37
Carbon-Brush Set
810 2604321905 8.45 10.22
groove ball bearing 9x24x7
814 2600905039 9.53 11.53
Gear Housing BLUE
825 2605806990 18.19 22.01
Intermediate Flange
843 2605700936 49.56 59.97
Change-Over Switch
853 2607200231 12.41 15.02
Toothed Shaft Z= 10/22/29
859 2606100903 20.42 24.71
Sticker DRILL/IMPACT DRILL
865 2601110076 1.18 1.43
Locking Washer DIN 6799-4-FSt
867 2916080007 1.94 2.35
Parts Set
870 2607010226 1.18 1.43
Nameplate
888 160111A3H3 1.94 2.35
