Here you will find all available parts and drawings of the 'Bosch 3601JG0300 ( GSB18V-85C )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

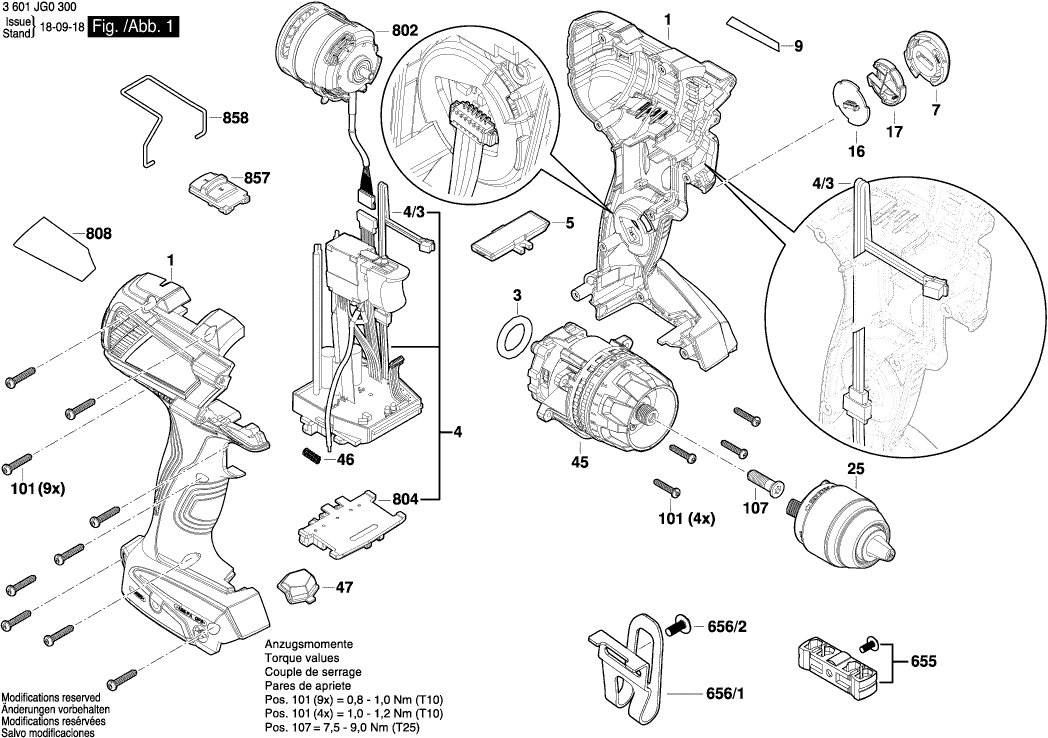

Technical drawing of model Bosch 3601JG0300 ( GSB18V-85C )
Spare parts list of model Bosch 3601JG0300 ( GSB18V-85C )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 16051082CJ | 15.71 | 19.01 | |
| O-Ring | ||||
| 3 | 2609170278 | 1.70 | 2.06 | |
| Electronics Module | ||||
| 4 | 16072335DB | 130.32 | 157.69 | |
| Printed-Board Assembly | ||||
| 4/3 | 1607503377 | 7.58 | 9.17 | |
| Adjusting lever | ||||
| 5 | 2609101551 | 0.83 | 1.00 | |
| Cover unit | ||||
| 7 | 1600A00RU9 | 2.24 | 2.71 | |
| Manufacturer's nameplate GSB 18V-85 C | ||||
| 9 | 2609138463 | 1.94 | 2.35 | |
| Printed-Board Assembly | ||||
| 16 | 1607503333 | 9.53 | 11.53 | |
| Cover Panel | ||||
| 17 | 1600A00M53 | 0.83 | 1.00 | |
| Keyless Chuck | ||||
| 25 | 1600A01YE8 | 29.75 | 36.00 | |
| Gear Box | ||||
| 45 | 2609199916 | 130.32 | 157.69 | |
| Compression Spring | ||||
| 46 | 1609280477 | 1.18 | 1.43 | |
| Lens | ||||
| 47 | 2609101490 | 1.18 | 1.43 | |
| Battery Pack GBA 18V 6.0 AH | ||||
| 91 | 2607337263 | 168.86 | 204.32 | |
| Battery Pack GBA 18V 4.0Ah ProCore SCM | ||||
| 91 | 1607A350AN | 113.29 | 137.08 | |
| Battery Pack BBS MR, 18V, 5,0 Ah 48 S | ||||
| 91 | 2607337069 | 101.94 | 123.35 | |
| Sticker | ||||
| 91/1/22 | 2601115537 | 1.18 | 1.43 | |
| Torx Oval-Head Screw | ||||
| 101 | 2609110353 | 1.70 | 2.06 | |
| Countersunk-Head Screw M6x23 LEFTHAND THREADS | ||||
| 107 | 2603421229 | 1.18 | 1.43 | |
| Auxiliary Handle | ||||
| 650 | 160202507X | 15.71 | 19.01 | |
| Charger GB 230/10,8-18V, 30 42 S | ||||
| 653 | 2607225923 | 113.29 | 137.08 | |
| Charger EU GAL 1880 CV 230/14,4-18V | ||||
| 653 | 2607225921 | 101.94 | 123.35 | |
| Bit holder | ||||
| 655 | 2609199748 | 1.70 | 2.06 | |
| Clip | ||||
| 656/1 | 2609111584 | 2.71 | 3.28 | |
| Screw | ||||
| 656/2 | 2609110834 | 1.18 | 1.43 | |
| Motor Spare Parts Set | ||||
| 802 | 1600A00XG0 | 81.47 | 98.58 | |
| Contact retainer 18V | ||||
| 804 | 1609280820 | 4.70 | 5.69 | |
| Type Label | ||||
| 808 | 2609138762 | 1.94 | 2.35 | |
| Switch Slide | ||||
| 857 | 2609101554 | 1.70 | 2.06 | |
| Switch Spring | ||||
| 858 | 2609112036 | 0.83 | 1.00 | |
