Here you will find all available parts and drawings of the 'Bosch 3601JH1100 ( GSB18V-21 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

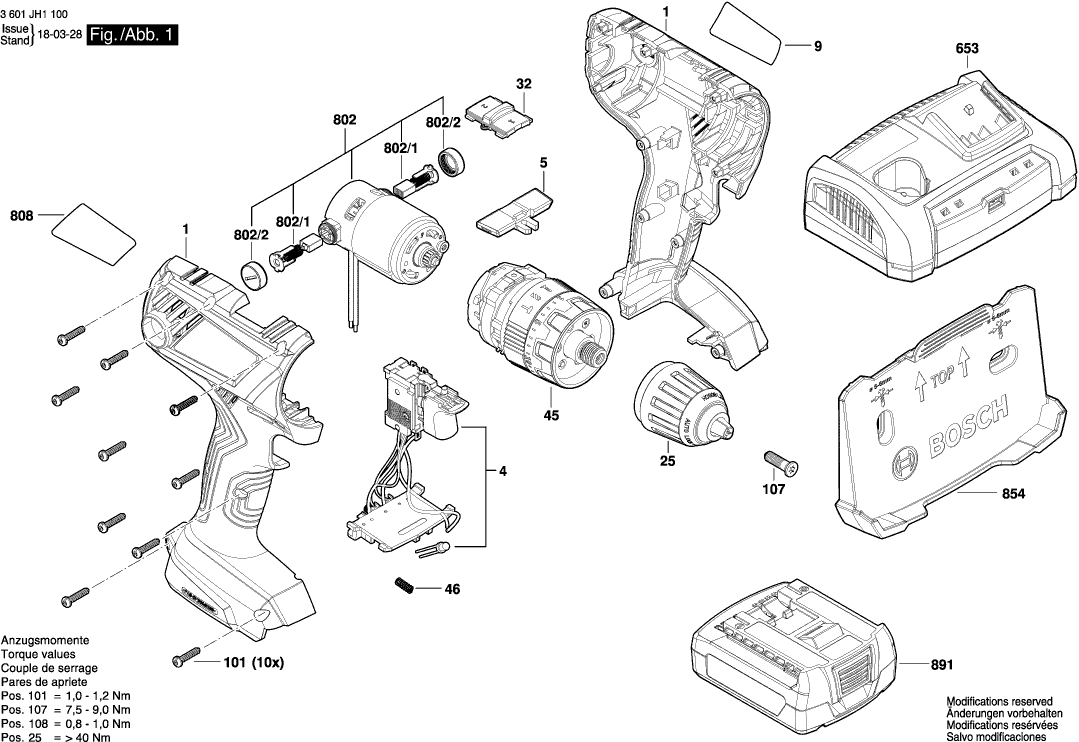

Technical drawing of model Bosch 3601JH1100 ( GSB18V-21 )
Spare parts list of model Bosch 3601JH1100 ( GSB18V-21 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 2609101741 | 11.88 | 14.37 | |
| Electronics Module | ||||
| 4 | 2607202511 | 36.85 | 44.59 | |
| Electronics Module | ||||
| 4 | 2607202346 | 31.49 | 38.10 | |
| Adjusting lever | ||||
| 5 | 2609101484 | 1.70 | 2.06 | |
| Manufacturer's nameplate GSB 18V-21 | ||||
| 9 | 160111C2CE | 1.94 | 2.35 | |
| Keyless Chuck | ||||
| 25 | 2609111940 | 26.84 | 32.48 | |
| Switchover Unit | ||||
| 32 | 2609199812 | 1.94 | 2.35 | |
| Gear Box | ||||
| 45 | 1600A00S4H | 40.61 | 49.14 | |
| Compression Spring | ||||
| 46 | 1609280477 | 1.18 | 1.43 | |
| Torx Flat-Head Screw 3x16 | ||||
| 101 | 2609110201 | 1.70 | 2.06 | |
| Countersunk-Head Screw M6x23 LEFTHAND THREADS | ||||
| 107 | 2603421229 | 1.18 | 1.43 | |
| Charger EU GAX 18V-30 230/10,8-18V 1h | ||||
| 653 | 2607225991 | 81.47 | 98.58 | |
| Charger GB GAX 18V-30 230/10,8-18V 1h | ||||
| 653 | 2607225993 | 81.47 | 98.58 | |
| No longer available, no replacement | ||||
| 802 | 160702266N | |||
| Carbon-Brush Set | ||||
| 802/1 | 1607000CZ1 | 4.70 | 5.69 | |
| Sealing cap | ||||
| 802/2 | 2609199049 | 4.70 | 5.69 | |
| Nameplate | ||||
| 808 | 160111C2FF | 1.94 | 2.35 | |
| Bracket | ||||
| 854 | 1609280A81 | 5.33 | 6.45 | |
| Battery Pack GBA 18V 2.0Ah | ||||
| 891 | 1607A350MA | 73.72 | 89.20 | |
