Here you will find all available parts and drawings of the 'Bosch 3601J94300 ( GSB18VE-2 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

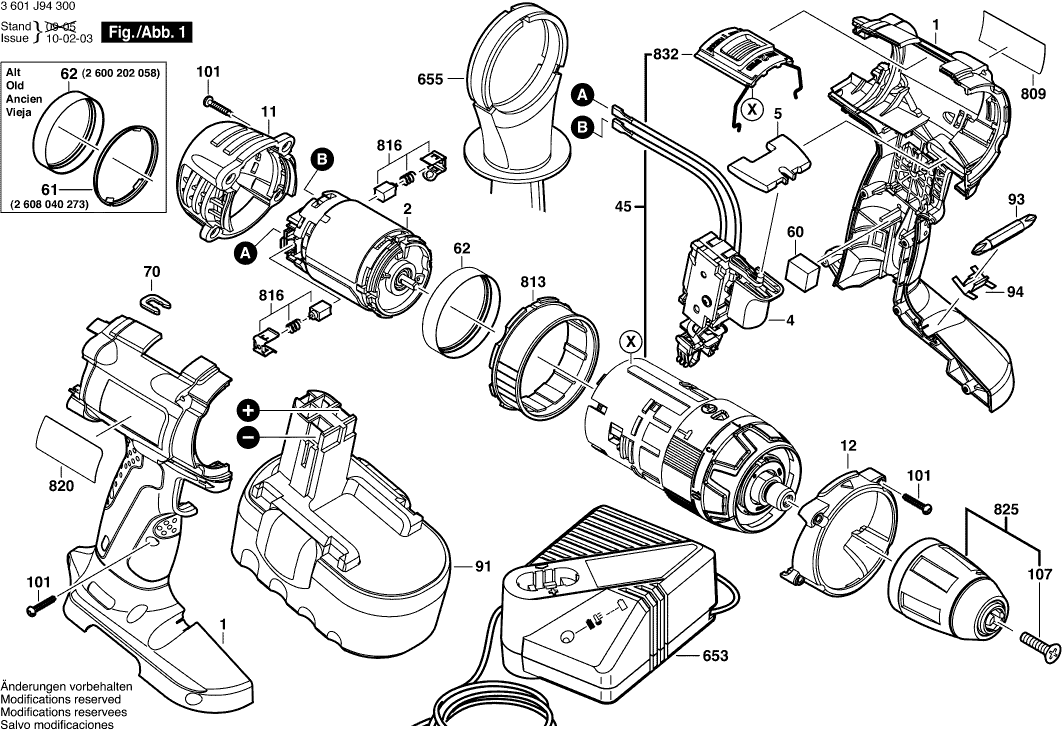

Technical drawing of model Bosch 3601J94300 ( GSB18VE-2 )
Spare parts list of model Bosch 3601J94300 ( GSB18VE-2 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section BLUE | ||||
| 1 | 2605105102 | 11.88 | 14.37 | |
| No longer available, no replacement | ||||
| 2 | 2607022320 | |||
| Electronics Module | ||||
| 4 | 2607230122 | 44.82 | 54.23 | |
| Adjusting lever RED | ||||
| 5 | 2601099155 | 0.83 | 1.00 | |
| End cap BLACK | ||||
| 11 | 2600508064 | 1.94 | 2.35 | |
| Front Cap | ||||
| 12 | 2600510011 | 1.94 | 2.35 | |
| Planetary Gear Train | ||||
| 45 | 2606200255 | 168.86 | 204.32 | |
| Damping Element | ||||
| 60 | 2601039020 | 0.83 | 1.00 | |
| Retaining snap ring | ||||
| 62 | 2600202067 | 5.33 | 6.45 | |
| Pickup Clip | ||||
| 70 | 2601250009 | 1.18 | 1.43 | |
| Slide-In Battery Pack 18V, 2,6Ah, NiMH, HD | ||||
| 91 | 2607335687 | 233.78 | 282.87 | |
| Slide-In Battery Pack 18V,3,0Ah, NiMh, HD | ||||
| 91 | 2607335695 | 233.78 | 282.87 | |
| Screwdriver Blade 6 MM | ||||
| 93 | 1609200147 | 2.71 | 3.28 | |
| Spring Element | ||||
| 94 | 2604690043 | 0.83 | 1.00 | |
| Torx Oval-Head Screw 3x18 | ||||
| 101 | 2603490018 | 0.83 | 1.00 | |
| Countersunk-Head Screw M6x23 LEFTHAND THREADS | ||||
| 107 | 2603421229 | 1.18 | 1.43 | |
| Fast Charger EU 230/7,2-24V, 30 MIN. | ||||
| 653 | 2607225027 | 113.29 | 137.08 | |
| Fast Charger GB 230/7,2-24V, 30 MIN. | ||||
| 653 | 2607225029 | 101.94 | 123.35 | |
| Fast Charger AUS 240/7,2-24V, 30 MIN. | ||||
| 653 | 2607225031 | 101.94 | 123.35 | |
| Fast Charger ROK 220/7,2-24V, 30 MIN. | ||||
| 653 | 2607225039 | 91.56 | 110.79 | |
| Auxiliary Handle | ||||
| 655 | 2602025158 | 10.73 | 12.98 | |
| Manufacturer's nameplate GSB 18 VE-2 | ||||
| 809 | 2601115010 | 1.94 | 2.35 | |
| Locating ring | ||||
| 813 | 2600510012 | 2.71 | 3.28 | |
| Carbon-Brush Set 10 x 2 607 034 904 | ||||
| 816 | 1607000488 | 73.72 | 89.20 | |
| Nameplate | ||||
| 820 | 2601115011 | 1.18 | 1.43 | |
| Keyless Chuck | ||||
| 825 | 2608572901 | 55.25 | 66.85 | |
| Adjusting lever | ||||
| 832 | 2601099213 | 6.54 | 7.91 | |
