Here you will find all available parts and drawings of the 'Bosch 3601JD9300 (GSB18VE-2-LI)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

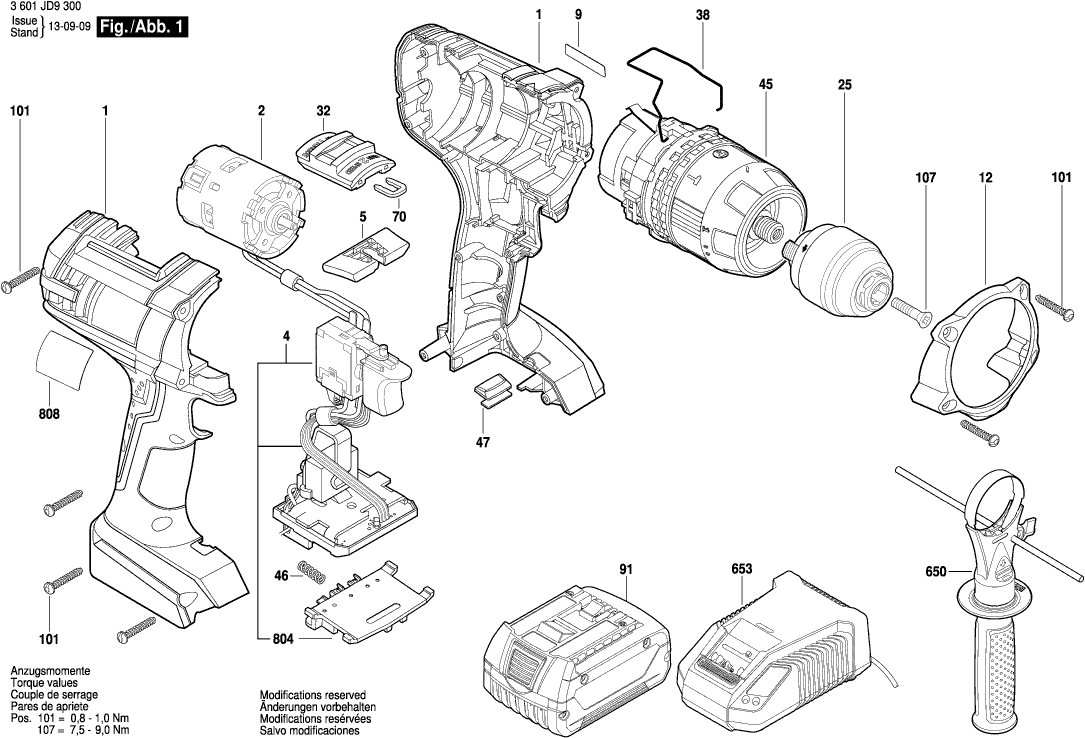

Technical drawing of model Bosch 3601JD9300 (GSB18VE-2-LI)
Spare parts list of model Bosch 3601JD9300 (GSB18VE-2-LI)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 1 | 2609100874 | |||
| DC motor | ||||
| 2 | 1607022609 | 71.68 | 86.73 | |
| No longer available, no replacement | ||||
| 4 | 1607233583 | |||
| Adjusting lever | ||||
| 5 | 2609100877 | 1.00 | 1.21 | |
| Manufacturer's nameplate GSB 18 VE-2-LI | ||||
| 9 | 2609134991 | 2.40 | 2.90 | |
| Front Cap | ||||
| 12 | 2609111024 | 6.73 | 8.14 | |
| Keyless Chuck | ||||
| 25 | 2609111104 | 55.56 | 67.23 | |
| Adjusting lever | ||||
| 32 | 2609100878 | 1.49 | 1.80 | |
| Switch Spring | ||||
| 38 | 2609111021 | 1.00 | 1.21 | |
| Gear Box | ||||
| 45 | 2609199675 | 136.48 | 165.14 | |
| Compression Spring | ||||
| 46 | 1609280477 | 1.49 | 1.80 | |
| Lens | ||||
| 47 | 2609101350 | 4.94 | 5.98 | |
| Clip | ||||
| 70 | 2609110537 | 1.49 | 1.80 | |
| Battery Pack | ||||
| 91 | 1607A350M0 | 110.30 | 133.46 | |
| Battery Pack | ||||
| 91 | 1617S020T1 | 80.26 | 97.11 | |
| Torx Oval-Head Screw | ||||
| 101 | 2609110353 | 2.08 | 2.52 | |
| Countersunk-Head Screw | ||||
| 107 | 2603421229 | 1.49 | 1.80 | |
| No information available, not orderable | ||||
| 650 | 2609199662 | |||
| Charger | ||||
| 653 | 2607225923 | 136.48 | 165.14 | |
| Contact retainer | ||||
| 804 | 1609280478 | 11.37 | 13.76 | |
| Nameplate | ||||
| 808 | 1600A00Z2L | 2.40 | 2.90 | |
