Here you will find all available parts and drawings of the 'Bosch 3601H62300 ( GSB18VE-2-LI )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

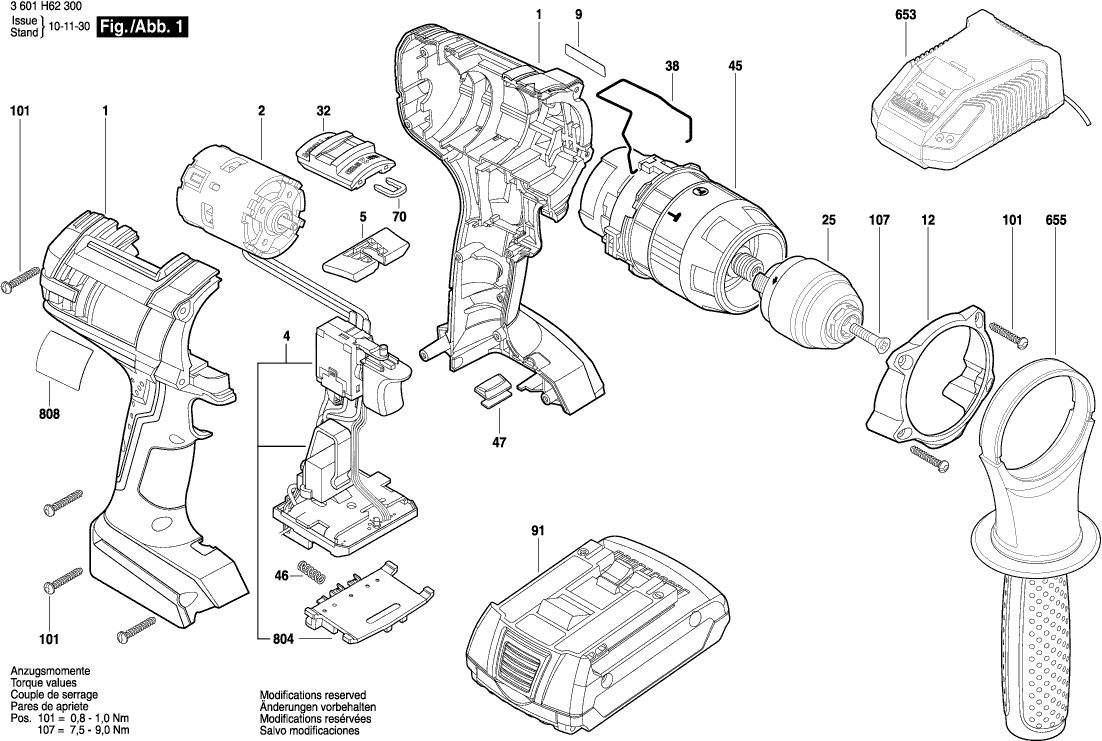

Technical drawing of model Bosch 3601H62300 ( GSB18VE-2-LI )
Spare parts list of model Bosch 3601H62300 ( GSB18VE-2-LI )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section | ||||
| 1 | 2609100874 | 26.84 | 32.48 | |
| DC motor 18V | ||||
| 2 | 1607022609 | 60.65 | 73.39 | |
| Electronics Module | ||||
| 4 | 1607233524 | 73.72 | 89.20 | |
| Adjusting lever | ||||
| 5 | 2609100877 | 0.83 | 1.00 | |
| Manufacturer's nameplate GSB 18 VE-2-LI | ||||
| 9 | 2609132863 | 1.94 | 2.35 | |
| Front Cap | ||||
| 12 | 2609111024 | 5.33 | 6.45 | |
| Keyless Chuck | ||||
| 25 | 2609111104 | 49.56 | 59.97 | |
| Adjusting lever | ||||
| 32 | 2609100878 | 1.18 | 1.43 | |
| Switch Spring | ||||
| 38 | 2609111021 | 0.83 | 1.00 | |
| Gear Box | ||||
| 45 | 2609199316 | 130.32 | 157.69 | |
| Compression Spring | ||||
| 46 | 1609280477 | 1.18 | 1.43 | |
| Lens | ||||
| 47 | 2609101350 | 4.10 | 4.96 | |
| Clip | ||||
| 70 | 2609110537 | 1.18 | 1.43 | |
| Battery Pack 18V 3.0Ah Li SCM | ||||
| 91 | 1607A350B2 | 91.56 | 110.79 | |
| Torx Oval-Head Screw | ||||
| 101 | 2609110353 | 1.70 | 2.06 | |
| Countersunk-Head Screw M6x23 LEFTHAND THREADS | ||||
| 107 | 2603421229 | 1.18 | 1.43 | |
| Charger GB 230/10,8-18V, 30 42 S | ||||
| 653 | 2607225923 | 113.29 | 137.08 | |
| Fast Charger 10,8V-18V EU | ||||
| 653 | 2607225423 | 63.33 | 76.63 | |
| Fast Charger GB 230/10,8-18V, 1h | ||||
| 653 | 2607225425 | 60.65 | 73.39 | |
| Fast Charger EU GAL 18V-20 220V-240V 12V-18V 2A | ||||
| 653 | 2607226281 | 55.25 | 66.85 | |
| Charger EU 230/14,4-18V, 30 40 S | ||||
| 653 | 2607225321 | 55.25 | 66.85 | |
| Auxiliary Handle | ||||
| 655 | 2602025158 | 10.73 | 12.98 | |
| Contact retainer | ||||
| 804 | 1609280478 | 9.53 | 11.53 | |
| Nameplate | ||||
| 808 | 2609135649 | 1.94 | 2.35 | |
