Here you will find all available parts and drawings of the 'Bosch 3601H67100 (GSB18V-LI)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

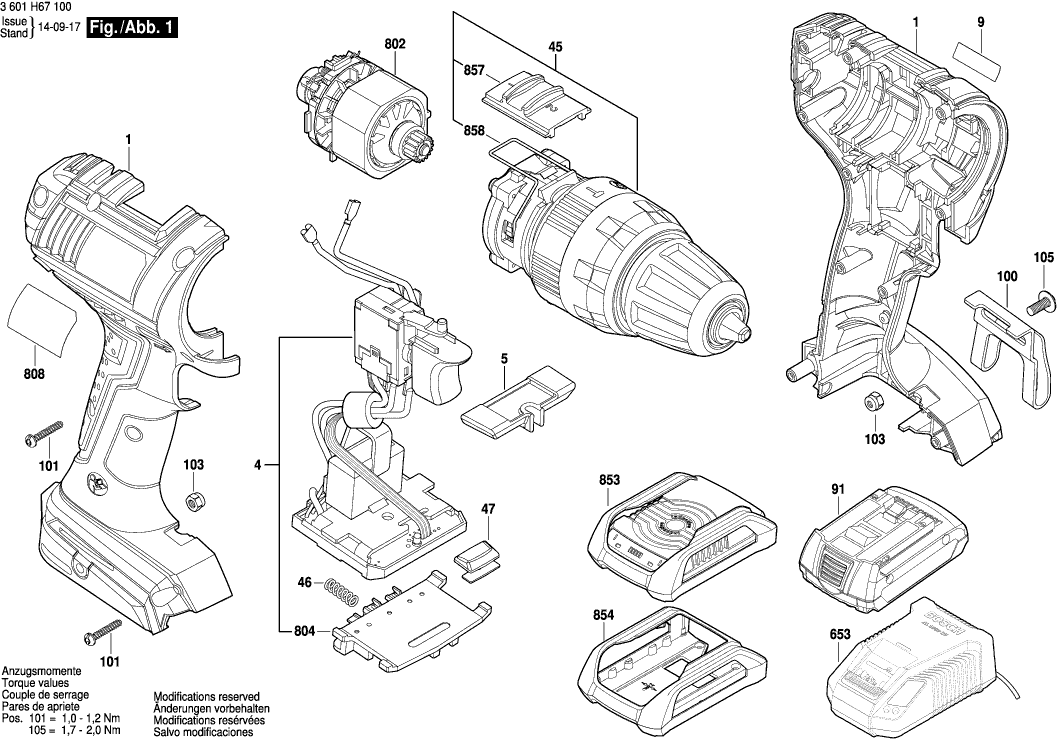

Technical drawing of model Bosch 3601H67100 (GSB18V-LI)
Spare parts list of model Bosch 3601H67100 (GSB18V-LI)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 2609100856 | 27.81 | 33.65 | |
| Adjusting lever | ||||
| 5 | 2609100859 | 1.49 | 1.80 | |
| Manufacturer's nameplate | ||||
| 9 | 2609132913 | 2.40 | 2.90 | |
| Manufacturer's nameplate | ||||
| 9 | 2609133065 | 2.40 | 2.90 | |
| Manufacturer's nameplate | ||||
| 9 | 2609136398 | 2.40 | 2.90 | |
| Gear Box | ||||
| 45 | 2609199295 | 80.26 | 97.11 | |
| Compression Spring | ||||
| 46 | 1609280477 | 1.49 | 1.80 | |
| Lens | ||||
| 47 | 2609100858 | 1.49 | 1.80 | |
| Battery Pack | ||||
| 91 | 1607A350F7 | 136.48 | 165.14 | |
| Battery Pack | ||||
| 91 | 1607A350B2 | 102.63 | 124.18 | |
| ACCUPAKKET | ||||
| 91 | 1607A350BG | 82.63 | 99.98 | |
| Battery Pack | ||||
| 91 | 1607A350MA | 82.63 | 99.98 | |
| Battery Pack | ||||
| 91 | 1607A350JR | 64.67 | 78.25 | |
| Battery Pack | ||||
| 91 | 1607A350BZ | 61.93 | 74.94 | |
| Clip | ||||
| 100 | 2609110956 | 7.46 | 9.03 | |
| Torx Oval-Head Screw | ||||
| 101 | 2609110353 | 2.08 | 2.52 | |
| Nut | ||||
| 103 | 2609110835 | 1.49 | 1.80 | |
| Screw | ||||
| 105 | 2609110834 | 1.49 | 1.80 | |
| Fast Charger | ||||
| 653 | 2607225427 | 136.48 | 165.14 | |
| Charger | ||||
| 653 | 2607225923 | 136.48 | 165.14 | |
| Charger | ||||
| 653 | 2607225933 | 136.48 | 165.14 | |
| Fast Charger | ||||
| 653 | 2607225333 | 126.98 | 153.65 | |
| Fast Charger 10,8V-18V EU | ||||
| 653 | 2607225423 | 75.38 | 91.21 | |
| Fast Charger | ||||
| 653 | 2607225425 | 71.68 | 86.73 | |
| Fast Charger | ||||
| 653 | 2607226281 | 64.67 | 78.25 | |
| Charger | ||||
| 653 | 2607225321 | 64.67 | 78.25 | |
| Fast Charger | ||||
| 653 | 2607226283 | 58.03 | 70.22 | |
| DC motor | ||||
| 802 | 2609199359 | 52.45 | 63.46 | |
| Contact retainer | ||||
| 804 | 1609280478 | 11.37 | 13.76 | |
| Nameplate | ||||
| 808 | 1600A00Z1J | 2.40 | 2.90 | |
| Wireless Charger | ||||
| 853 | 2607225847 | 98.18 | 118.80 | |
| Frame Module | ||||
| 854 | 6082710639 | 9.67 | 11.70 | |
| Switch Slide | ||||
| 857 | 2609100897 | 1.49 | 1.80 | |
| Switch Spring | ||||
| 858 | 2609111078 | 1.00 | 1.21 | |
