Here you will find all available parts and drawings of the 'Bosch 0601180050 (GSB18-2)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

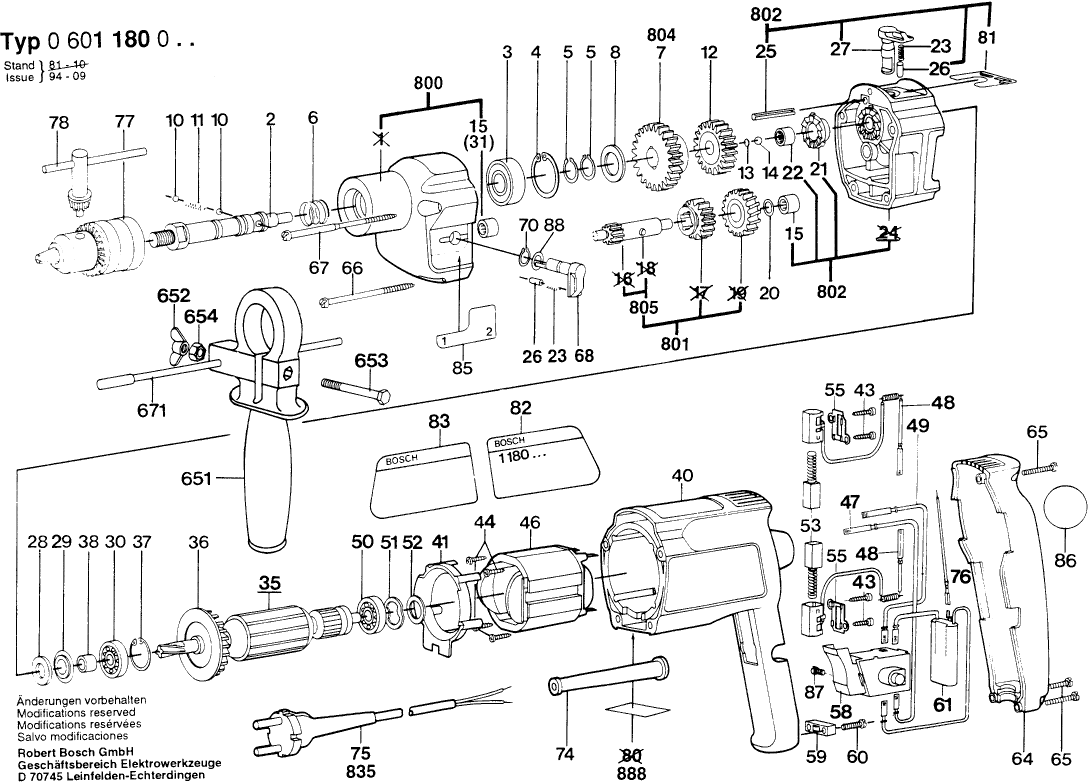

Technical drawing of model Bosch 0601180050 (GSB18-2)
Spare parts list of model Bosch 0601180050 (GSB18-2)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 2 | 2606135001 | |||
| groove ball bearing | ||||
| 3 | 2600905014 | 10.90 | 13.19 | |
| Retaining clip | ||||
| 4 | 2916660013 | 2.08 | 2.52 | |
| Retaining clip | ||||
| 5 | 2916650006 | 1.49 | 1.80 | |
| Compression Spring | ||||
| 6 | 2604617000 | 2.40 | 2.90 | |
| Toothed Gear | ||||
| 7 | 2606317043 | 31.42 | 38.02 | |
| Shim | ||||
| 8 | 2600101515 | 1.00 | 1.21 | |
| Ball | ||||
| 10 | 1903230007 | 1.49 | 1.80 | |
| Compression Spring | ||||
| 11 | 2604610007 | 1.49 | 1.80 | |
| Cylindrical Gear | ||||
| 12 | 2606317025 | 9.67 | 11.70 | |
| Shim washer | ||||
| 13 | 2600000012 | 1.00 | 1.21 | |
| Shim washer | ||||
| 13 | 2600000013 | 1.00 | 1.21 | |
| Shim washer | ||||
| 13 | 2600000014 | 1.00 | 1.21 | |
| Shim washer | ||||
| 13 | 2600000018 | 1.00 | 1.21 | |
| Ball | ||||
| 14 | 1903230010 | 1.00 | 1.21 | |
| Needle-Roller Bearing | ||||
| 15 | 2600914010 | 2.86 | 3.46 | |
| Shim | ||||
| 20 | 2600100607 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 21 | 2606490031 | |||
| Needle-Roller Bearing | ||||
| 22 | 2600917003 | 2.86 | 3.46 | |
| Ratchet Cap | ||||
| 23 | 2600590006 | 1.49 | 1.80 | |
| Slotted Spring Pin | ||||
| 25 | 2917780105 | 1.00 | 1.21 | |
| Ratchet Cap | ||||
| 26 | 2600590006 | 1.49 | 1.80 | |
| Rotary Knob | ||||
| 27 | 2602026017 | 7.46 | 9.03 | |
| Felt Washer | ||||
| 28 | 2600108077 | 1.49 | 1.80 | |
| Cupped Washer | ||||
| 29 | 2600500002 | 1.49 | 1.80 | |
| groove ball bearing | ||||
| 30 | 2600905021 | 8.35 | 10.10 | |
| Needle bearing | ||||
| 31 | 2600914017 | 10.90 | 13.19 | |
| Armature | ||||
| 35 | 2604010524 | 64.67 | 78.25 | |
| Fan | ||||
| 36 | 2606610049 | 2.08 | 2.52 | |
| Spring retaining ring | ||||
| 37 | 2916660008 | 2.08 | 2.52 | |
| No longer available, no replacement | ||||
| 38 | 2600400008 | |||
| No information available, not orderable | ||||
| 40 | 2605104157 | |||
| Cover Disc | ||||
| 41 | 2601328032 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 43 | 2603490017 | 2.08 | 2.52 | |
| Cross Recessed-Head Screw | ||||
| 44 | 2603435015 | 2.08 | 2.52 | |
| Field | ||||
| 46 | 2604220491 | 21.30 | 25.77 | |
| Cable | ||||
| 47 | 2604448005 | 1.49 | 1.80 | |
| Suppression Filter | ||||
| 48 | 2604465090 | 7.46 | 9.03 | |
| Brush Holder | ||||
| 49 | 2604337003 | 2.08 | 2.52 | |
| Connecting Cable | ||||
| 49 | 2604448100 | 1.00 | 1.21 | |
| Ball Bearing | ||||
| 50 | 1900905018 | 16.79 | 20.32 | |
| Shim | ||||
| 51 | 2600150004 | 2.08 | 2.52 | |
| Shim | ||||
| 52 | 2600101020 | 1.49 | 1.80 | |
| Shim | ||||
| 52 | 2600101022 | 1.49 | 1.80 | |
| Shim | ||||
| 52 | 2600101023 | 1.49 | 1.80 | |
| Carbon-Brush Set | ||||
| 53 | 2604321905 | 9.67 | 11.70 | |
| Connecting Cable | ||||
| 54 | 2604448146 | 1.49 | 1.80 | |
| Switch | ||||
| 58 | 2607200260 | 9.67 | 11.70 | |
| Cable Clip | ||||
| 59 | 2601035001 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 60 | 2910611019 | 2.86 | 3.46 | |
| Suppression Capacitor | ||||
| 61 | 2607329121 | 5.81 | 7.03 | |
| Housing Cover | ||||
| 64 | 2605132046 | 4.94 | 5.98 | |
| Torx Oval-Head Screw | ||||
| 65 | 2603490023 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 66 | 2603435071 | |||
| Tapping Screw | ||||
| 67 | 2603435012 | 1.49 | 1.80 | |
| Rotary Knob | ||||
| 68 | 2602026018 | 2.86 | 3.46 | |
| Spring retaining ring | ||||
| 70 | 2916650001 | 2.40 | 2.90 | |
| Grommet | ||||
| 74 | 2600707059 | 3.44 | 4.16 | |
| Grommet | ||||
| 74 | 2600707061 | 2.86 | 3.46 | |
| Power supply cord | ||||
| 75 | 2604460280 | 13.13 | 15.89 | |
| Cable | ||||
| 76 | 2604448003 | 2.08 | 2.52 | |
| No longer available, no replacement | ||||
| 77 | 1608571055 | |||
| Chuck Wrench | ||||
| 78 | 2607950007 | 6.73 | 8.14 | |
| Sticker | ||||
| 81 | 2601110076 | 1.49 | 1.80 | |
| Sticker | ||||
| 82 | 2601110889 | 2.08 | 2.52 | |
| Sticker | ||||
| 83 | 2601110890 | 1.00 | 1.21 | |
| Sticker | ||||
| 85 | 2601110072 | 1.49 | 1.80 | |
| Socket head cap screw | ||||
| 87 | 2603410001 | 1.49 | 1.80 | |
| Shim | ||||
| 88 | 2600100575 | 2.08 | 2.52 | |
| Shim | ||||
| 88 | 2600100576 | 2.08 | 2.52 | |
| Shim | ||||
| 88 | 2600100577 | 1.49 | 1.80 | |
| Torx Oval-Head Screw | ||||
| 90 | 2603490024 | 1.49 | 1.80 | |
| Shrinkable Tube | ||||
| 203 | 2600409014 | 1.49 | 1.80 | |
| Auxiliary Handle | ||||
| 651 | 1619PB4323 | 9.67 | 11.70 | |
| No longer available, no replacement | ||||
| 652 | 2915191006 | |||
| No longer available, no replacement | ||||
| 653 | 2911011220 | |||
| No longer available, no replacement | ||||
| 654 | 2601098001 | |||
| No longer available, no replacement | ||||
| 671 | 1613001005 | |||
| Gear Housing | ||||
| 800 | 2605806959 | 18.94 | 22.92 | |
| No longer available, no replacement | ||||
| 801 | 2606309902 | |||
| Flanged Bearing | ||||
| 802 | 2605700928 | 39.14 | 47.36 | |
| No longer available, no replacement | ||||
| 804 | 2606317014 | |||
| No longer available, no replacement | ||||
| 805 | 2606309004 | |||
| Nameplate | ||||
| 888 | 160111A3H3 | 2.40 | 2.90 | |
