Here you will find all available parts and drawings of the 'Bosch 060117A737 (GSB18-2RE)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

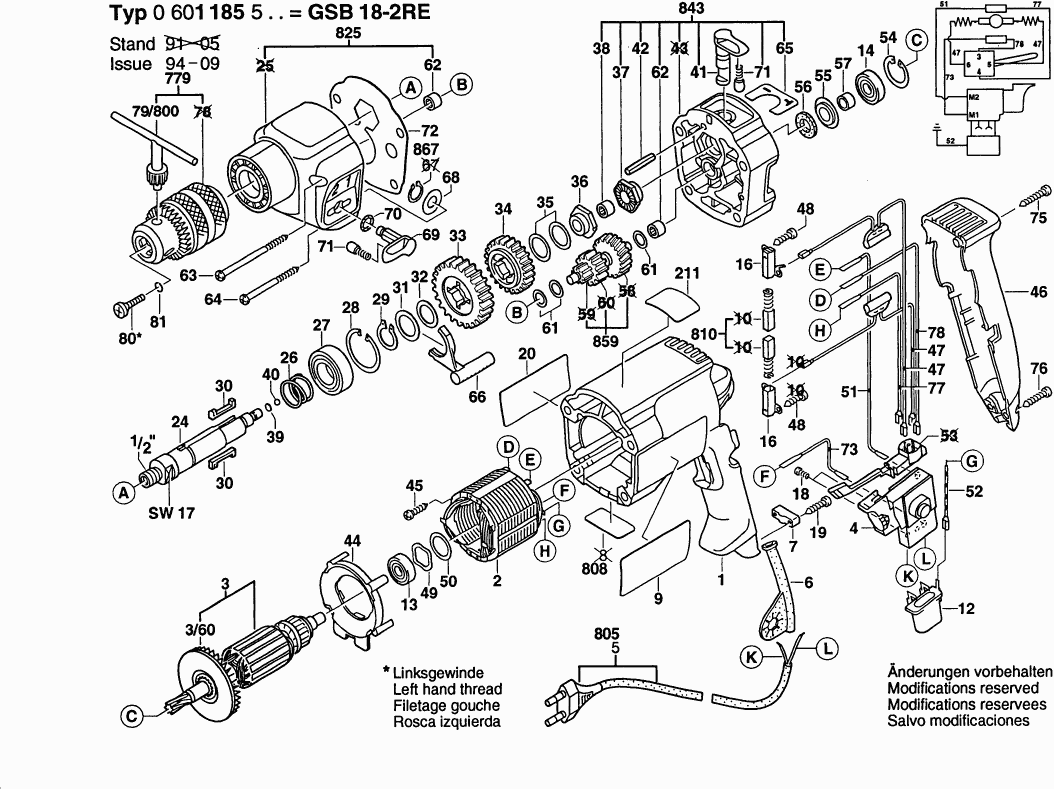

Technical drawing of model Bosch 060117A737 (GSB18-2RE)
Spare parts list of model Bosch 060117A737 (GSB18-2RE)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section | ||||
| 1 | 2605104760 | 39.14 | 47.36 | |
| Field | ||||
| 2 | 2604220689 | 18.94 | 22.92 | |
| Armature | ||||
| 3 | 2604011166 | 47.53 | 57.51 | |
| Fan | ||||
| 3/60 | 2606610029 | 2.40 | 2.90 | |
| Switch | ||||
| 4 | 2607200556 | 27.81 | 33.65 | |
| Power supply cord | ||||
| 5 | 2604460199 | 12.82 | 15.51 | |
| Grommet | ||||
| 6 | 2600703019 | 2.40 | 2.90 | |
| Manufacturer's nameplate | ||||
| 9 | 2601116359 | 2.40 | 2.90 | |
| Needle bearing | ||||
| 14 | 2600914019 | 4.94 | 5.98 | |
| Brush Plate | ||||
| 16 | 2604337061 | 13.13 | 15.89 | |
| Reference Plate | ||||
| 20 | 2601116360 | 3.44 | 4.16 | |
| Change-Over Switch | ||||
| 22 | 2602098008 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 24 | 2910611002 | 1.00 | 1.21 | |
| O-Ring | ||||
| 25 | 1900210000 | 1.49 | 1.80 | |
| Damping Element | ||||
| 27 | 2603239024 | 1.00 | 1.21 | |
| Oval-Head Screw | ||||
| 28 | 2603429006 | 1.49 | 1.80 | |
| Handle Cover | ||||
| 29 | 2608040177 | 4.94 | 5.98 | |
| Drilling Spindle | ||||
| 30 | 2606135116 | 16.79 | 20.32 | |
| Locking washer | ||||
| 31 | 2600118006 | 2.08 | 2.52 | |
| Locking washer | ||||
| 31 | 2600118002 | 1.49 | 1.80 | |
| Locking washer | ||||
| 31 | 2600118001 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 32 | 2604616006 | 1.49 | 1.80 | |
| groove ball bearing | ||||
| 33 | 1900905163 | 10.90 | 13.19 | |
| Cylindrical Gear | ||||
| 34 | 2606317082 | 12.82 | 15.51 | |
| Cylindrical Gear | ||||
| 35 | 2606317083 | 10.90 | 13.19 | |
| Shim | ||||
| 36 | 2600100695 | 1.49 | 1.80 | |
| Shim | ||||
| 37 | 2600101047 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 38 | 2601329072 | |||
| Retaining Washer | ||||
| 39 | 2600101084 | 1.49 | 1.80 | |
| Flat Key | ||||
| 40 | 2602300034 | 2.40 | 2.90 | |
| Guiding Plate | ||||
| 41 | 2601098031 | 1.49 | 1.80 | |
| Catch Disk | ||||
| 42 | 2600190070 | 5.81 | 7.03 | |
| Ball | ||||
| 44 | 1903230010 | 1.00 | 1.21 | |
| Indexing Disk | ||||
| 45 | 2601990041 | 1.49 | 1.80 | |
| Pressure Plate | ||||
| 46 | 2601074003 | 1.00 | 1.21 | |
| Shim | ||||
| 47 | 1600100632 | 1.00 | 1.21 | |
| Eccentric | ||||
| 48 | 2602210043 | 2.86 | 3.46 | |
| Shim | ||||
| 52 | 2600100607 | 1.49 | 1.80 | |
| Bearing Sleeve | ||||
| 54 | 2600400027 | 4.18 | 5.06 | |
| Shim | ||||
| 55 | 2600100637 | 1.49 | 1.80 | |
| Fork Lever | ||||
| 56 | 2601990009 | 1.00 | 1.21 | |
| Rotary Knob | ||||
| 57 | 2602026119 | 4.94 | 5.98 | |
| Ratchet Cap | ||||
| 58 | 2600590006 | 1.49 | 1.80 | |
| Retaining snap ring | ||||
| 61 | 2600202008 | 4.18 | 5.06 | |
| Driver Pin | ||||
| 62 | 2601335001 | 2.08 | 2.52 | |
| Locking washer | ||||
| 63 | 2916080907 | 2.08 | 2.52 | |
| Shim washer | ||||
| 64 | 2600100618 | 1.00 | 1.21 | |
| Roller Body | ||||
| 65 | 2609007376 | 1.00 | 1.21 | |
| Bearing Bracket | ||||
| 66 | 2605807085 | 14.94 | 18.08 | |
| Catch Disk | ||||
| 67 | 2600190071 | 6.73 | 8.14 | |
| Needle-Roller Bearing | ||||
| 68 | 2600914010 | 2.86 | 3.46 | |
| Felt Strip | ||||
| 76 | 2601005011 | 2.08 | 2.52 | |
| Felt Strip | ||||
| 77 | 2601005021 | 1.00 | 1.21 | |
| Keyless Chuck | ||||
| 80 | 2608572142 | 58.03 | 70.22 | |
| Pvc-Insulated Cable | ||||
| 90 | 2604448228 | 2.08 | 2.52 | |
| Pvc-Insulated Cable | ||||
| 91 | 1614431025 | 2.40 | 2.90 | |
| Plain Washer | ||||
| 96 | 2600100066 | 1.00 | 1.21 | |
| Auxiliary Handle | ||||
| 653 | 2602025118 | 13.13 | 15.89 | |
| Auxiliary Handle | ||||
| 653/120 | 1612025019 | 6.73 | 8.14 | |
| Clamping Band | ||||
| 653/124 | 1611316006 | 2.40 | 2.90 | |
| T-Head Bolt | ||||
| 653/125 | 1613490002 | 4.18 | 5.06 | |
| Support clamp | ||||
| 653/802 | 2608040176 | 6.73 | 8.14 | |
| Depth-Gauge | ||||
| 655 | 1613001009 | 3.44 | 4.16 | |
| No information available, not orderable | ||||
| 808 | 2601117737 | |||
| Carbon-Brush Set | ||||
| 816/04 | 2609160125 | 6.73 | 8.14 | |
| Tapping Screw | ||||
| 819 | 2910611006 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 823 | 2910611020 | 1.49 | 1.80 | |
| Toothed Shaft | ||||
| 849 | 2606309937 | 18.94 | 22.92 | |
| Carrier | ||||
| 850 | 2606440900 | 34.82 | 42.13 | |
| Bearing Bracket | ||||
| 866 | 2605807934 | 23.90 | 28.92 | |
| Fastening parts kit | ||||
| 890 | 2607001305 | 4.18 | 5.06 | |
| Cross Recessed-Head Screw | ||||
| 891 | 2603410046 | 2.08 | 2.52 | |
