Here you will find all available parts and drawings of the 'Bosch 3601B18123 ( GSB1600 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

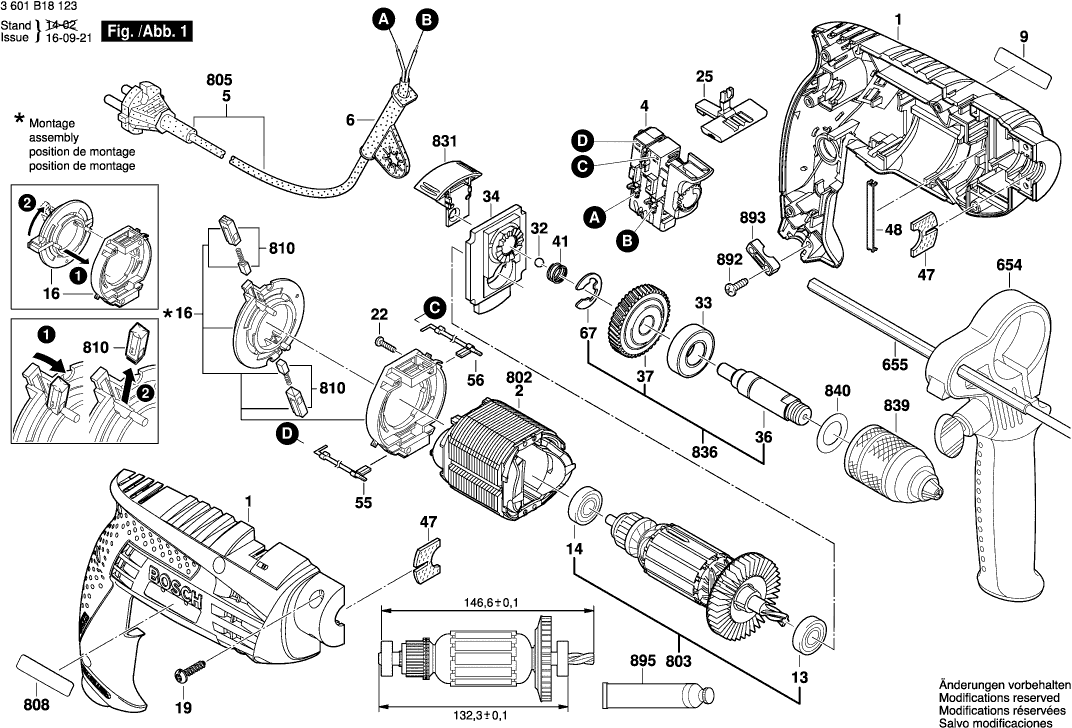

Technical drawing of model Bosch 3601B18123 ( GSB1600 )
Spare parts list of model Bosch 3601B18123 ( GSB1600 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 2609100579 | 18.19 | 22.01 | |
| Switch | ||||
| 4 | 2607200625 | 11.88 | 14.37 | |
| Grommet Ø11,6-Ø12,5x84 MM | ||||
| 6 | 2600707060 | 1.94 | 2.35 | |
| Manufacturer's nameplate | ||||
| 9 | 160111C1W8 | 1.94 | 2.35 | |
| Ball Bearing 8x22x7 | ||||
| 13 | 2609110153 | 4.70 | 5.69 | |
| Ball Bearing | ||||
| 14 | 2609110491 | 4.10 | 4.96 | |
| Brush Plate | ||||
| 16 | 2604337059 | 8.45 | 10.22 | |
| Screw 4x16 | ||||
| 19 | 2603490022 | 0.83 | 1.00 | |
| Tapping Screw DIN 7981-ST2,2x9,5-C-H | ||||
| 22 | 2910611002 | 0.83 | 1.00 | |
| Lever | ||||
| 25 | 2609100580 | 1.94 | 2.35 | |
| Ball DIN 5401-5,5MM-III-ST | ||||
| 32 | 1903230010 | 0.83 | 1.00 | |
| groove ball bearing 15x32x9 | ||||
| 33 | 1900905122 | 7.58 | 9.17 | |
| Bearing Bracket | ||||
| 34 | 2609199115 | 12.41 | 15.02 | |
| Drilling Spindle | ||||
| 36 | 2609110449 | 9.53 | 11.53 | |
| Conversion Gear | ||||
| 37 | 2606320092 | 7.58 | 9.17 | |
| Compression Spring | ||||
| 41 | 2604616006 | 1.18 | 1.43 | |
| Felt Strip | ||||
| 47 | 2609170056 | 0.83 | 1.00 | |
| Spring Clip | ||||
| 48 | 2609110627 | 0.83 | 1.00 | |
| Connecting Cable WHITE | ||||
| 55 | 2609120427 | 1.18 | 1.43 | |
| Connecting Cable RED | ||||
| 56 | 2609120428 | 1.18 | 1.43 | |
| Spring retaining ring | ||||
| 67 | 2609110481 | 1.18 | 1.43 | |
| Auxiliary Handle | ||||
| 654 | 2602025094 | 5.83 | 7.05 | |
| Depth-Gauge | ||||
| 655 | 2609005615 | 3.31 | 4.01 | |
| Field 230V | ||||
| 802 | 2604220647 | 15.71 | 19.01 | |
| Armature 220-240V | ||||
| 803 | 2609120235 | 33.45 | 40.47 | |
| Power supply cord EU 230V 4,15m 2 x 1,0mm H05 RN- | ||||
| 805 | 1607000386 | 15.71 | 19.01 | |
| Nameplate | ||||
| 808 | 1618B0031P | 1.94 | 2.35 | |
| Carbon-Brush Set | ||||
| 810 | 2607014013 | 7.58 | 9.17 | |
| Change-Over Switch | ||||
| 831 | 2609160127 | 2.24 | 2.71 | |
| Drilling Spindle | ||||
| 836 | 2609160124 | 15.71 | 19.01 | |
| No information available, not orderable | ||||
| 839 | 2608572105 | |||
| Plain Washer | ||||
| 840 | 2600100105 | 0.83 | 1.00 | |
| Screw 4x16 | ||||
| 892 | 2603490022 | 0.83 | 1.00 | |
| Cable Clip | ||||
| 893 | 2601035001 | 1.18 | 1.43 | |
| Grease Tube Albida | ||||
| 895 | 3605430003 | 23.75 | 28.74 | |
