Here you will find all available parts and drawings of the 'Bosch 3601B18170 (GSB1600RE)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

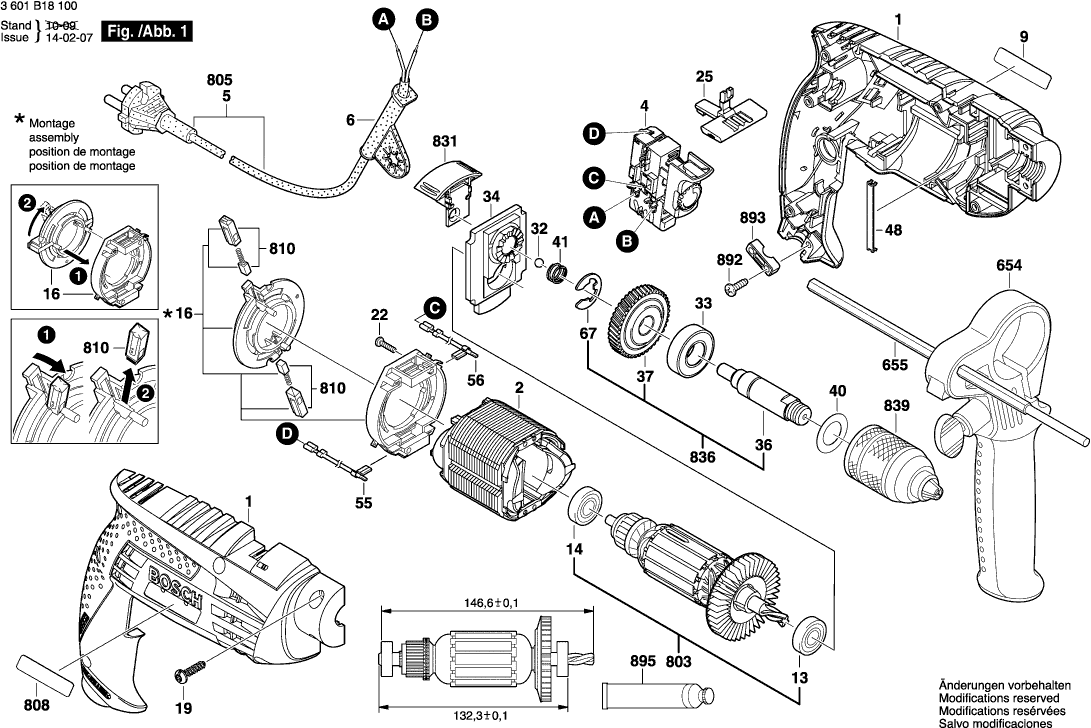

Technical drawing of model Bosch 3601B18170 (GSB1600RE)
Spare parts list of model Bosch 3601B18170 (GSB1600RE)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 2609100579 | 21.30 | 25.77 | |
| Field | ||||
| 2 | 2604220647 | 18.94 | 22.92 | |
| Switch | ||||
| 4 | 1607200270 | 16.79 | 20.32 | |
| Power supply cord GB 230V 4,15m 2 x 1,0mm H05RN-F | ||||
| 5 | 1604460244 | 15.61 | 18.89 | |
| Grommet | ||||
| 6 | 2600707059 | 3.44 | 4.16 | |
| Manufacturer's nameplate | ||||
| 9 | 2609131774 | 2.40 | 2.90 | |
| Ball Bearing | ||||
| 13 | 2609110153 | 5.81 | 7.03 | |
| Ball Bearing | ||||
| 14 | 2609110491 | 4.94 | 5.98 | |
| Brush Plate | ||||
| 16 | 2604337059 | 10.90 | 13.19 | |
| Tapping Screw | ||||
| 22 | 2910611002 | 1.00 | 1.21 | |
| Lever | ||||
| 25 | 2609100580 | 2.40 | 2.90 | |
| Ball | ||||
| 32 | 1903230010 | 1.00 | 1.21 | |
| groove ball bearing | ||||
| 33 | 2600905068 | 13.13 | 15.89 | |
| Bearing Bracket | ||||
| 34 | 2609199115 | 14.94 | 18.08 | |
| Drilling Spindle | ||||
| 36 | 2609110449 | 10.68 | 12.92 | |
| Conversion Gear | ||||
| 37 | 2606320092 | 9.67 | 11.70 | |
| Plain Washer | ||||
| 40 | 2600100105 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 41 | 2604616006 | 1.49 | 1.80 | |
| Spring Clip | ||||
| 48 | 2609110627 | 1.00 | 1.21 | |
| Connecting Cable | ||||
| 55 | 2609120221 | 2.40 | 2.90 | |
| Connecting Cable | ||||
| 56 | 2609120222 | 1.49 | 1.80 | |
| Spring retaining ring | ||||
| 67 | 2609110481 | 1.49 | 1.80 | |
| Auxiliary Handle | ||||
| 654 | 2602025094 | 7.46 | 9.03 | |
| No longer available, no replacement | ||||
| 655 | 2609005615 | |||
| Armature | ||||
| 803 | 2609120235 | 39.14 | 47.36 | |
| Nameplate | ||||
| 808 | 2609135665 | 2.18 | 2.64 | |
| Carbon-Brush Set | ||||
| 810 | 2607014013 | 8.48 | 10.26 | |
| Change-Over Switch | ||||
| 831 | 2609160127 | 2.86 | 3.46 | |
| Drilling Spindle | ||||
| 836 | 2609160124 | 17.60 | 21.30 | |
| Keyless Chuck | ||||
| 839 | 2608572184 | 88.83 | 107.48 | |
| Screw | ||||
| 892 | 2603490022 | 1.00 | 1.21 | |
| Cable Clip | ||||
| 893 | 2601035001 | 1.49 | 1.80 | |
| Grease Tube | ||||
| 895 | 3605430003 | 27.81 | 33.65 | |
