Here you will find all available parts and drawings of the 'Bosch 0601140003 (GSB16)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

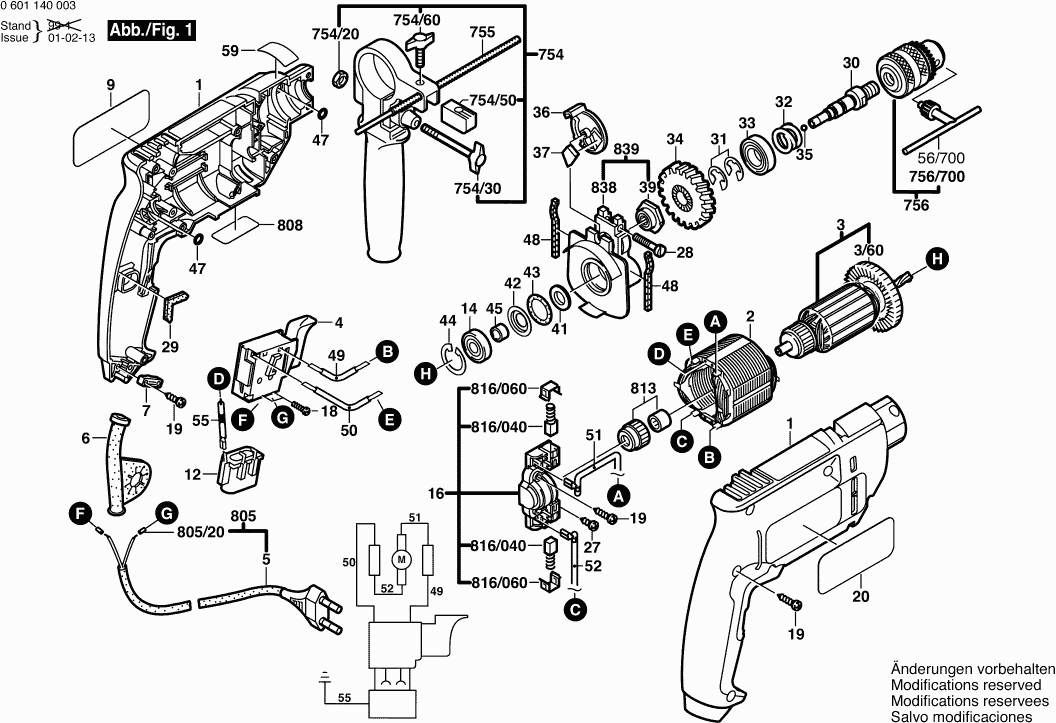

Technical drawing of model Bosch 0601140003 (GSB16)
Spare parts list of model Bosch 0601140003 (GSB16)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section | ||||
| 1 | 2605104436 | 30.08 | 36.40 | |
| Field | ||||
| 2 | 2604220430 | 27.81 | 33.65 | |
| Armature | ||||
| 3 | 2604011050 | 43.21 | 52.28 | |
| Fan | ||||
| 3/60 | 2606610029 | 2.40 | 2.90 | |
| Switch | ||||
| 4 | 2607200260 | 9.67 | 11.70 | |
| Grommet | ||||
| 6 | 2600707059 | 3.44 | 4.16 | |
| Grommet | ||||
| 6 | 2600707061 | 2.86 | 3.46 | |
| Grommet | ||||
| 6 | 2600707060 | 2.40 | 2.90 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.49 | 1.80 | |
| Manufacturer's nameplate | ||||
| 9 | 2601118432 | 1.73 | 2.09 | |
| No longer available, no replacement | ||||
| 12 | 2607329114 | |||
| groove ball bearing | ||||
| 14 | 2600905039 | 11.37 | 13.76 | |
| No longer available, no replacement | ||||
| 16 | 2605807060 | |||
| Socket head cap screw | ||||
| 18 | 2603410001 | 1.49 | 1.80 | |
| Screw | ||||
| 19 | 2603490022 | 1.00 | 1.21 | |
| Reference Plate | ||||
| 20 | 2601118434 | 1.73 | 2.09 | |
| Torx Oval-Head Screw | ||||
| 27 | 2603490017 | 2.08 | 2.52 | |
| Socket head cap screw | ||||
| 28 | 2603429005 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 29 | 2601022000 | |||
| Drilling Spindle | ||||
| 30 | 2606135034 | 12.82 | 15.51 | |
| Locking washer | ||||
| 31 | 2600118006 | 2.08 | 2.52 | |
| Locking washer | ||||
| 31 | 2600118002 | 1.49 | 1.80 | |
| Locking washer | ||||
| 31 | 2600118001 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 32 | 2604617000 | 2.40 | 2.90 | |
| groove ball bearing | ||||
| 33 | 1900905122 | 9.67 | 11.70 | |
| Cylindrical Gear | ||||
| 34 | 2606320050 | 15.26 | 18.46 | |
| Ball | ||||
| 35 | 1903230010 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 36 | 2601990001 | |||
| Pressure Plate | ||||
| 37 | 2601074003 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 39 | 2606490056 | |||
| Felt Washer | ||||
| 41 | 2600108014 | 1.49 | 1.80 | |
| Cupped Washer | ||||
| 42 | 2600500014 | 1.49 | 1.80 | |
| O-Ring | ||||
| 43 | 1900210117 | 3.44 | 4.16 | |
| Spring retaining ring | ||||
| 44 | 2916660008 | 2.08 | 2.52 | |
| No longer available, no replacement | ||||
| 45 | 2600400008 | |||
| O-Ring | ||||
| 47 | 1900210000 | 1.49 | 1.80 | |
| Felt Strip | ||||
| 48 | 2601005011 | 2.08 | 2.52 | |
| Connecting Cable | ||||
| 49 | 2604448136 | 1.32 | 1.60 | |
| Connecting Cable | ||||
| 50 | 2604448129 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 51 | 2604448123 | |||
| No longer available, no replacement | ||||
| 52 | 2604448130 | |||
| Earth Conductor | ||||
| 55 | 2604448103 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 59 | 2601110580 | |||
| Auxiliary Handle | ||||
| 754 | 1619PB4323 | 9.67 | 11.70 | |
| Hex Nut | ||||
| 754/20 | 2915011007 | 1.00 | 1.21 | |
| Wing Screw | ||||
| 754/30 | 1613480007 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 754/50 | 2608040014 | |||
| Wing Screw | ||||
| 754/60 | 1613480008 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 755 | 1613001005 | |||
| Key Chuck | ||||
| 756 | 1608571080 | 36.62 | 44.31 | |
| Chuck Wrench | ||||
| 756/700 | 2607950007 | 6.73 | 8.14 | |
| Power supply cord | ||||
| 805 | 1607000385 | 13.13 | 15.89 | |
| Nameplate | ||||
| 808 | 160111A3H3 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 813 | 2600917902 | |||
| No longer available, no replacement | ||||
| 816/040 | 2604321913 | |||
| Ratchet Cap | ||||
| 816/060 | 2601322017 | 1.49 | 1.80 | |
| Bearing Bracket | ||||
| 838 | 2605807915 | 18.94 | 22.92 | |
