Here you will find all available parts and drawings of the 'Bosch 3601A48600 ( GSB16RE )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

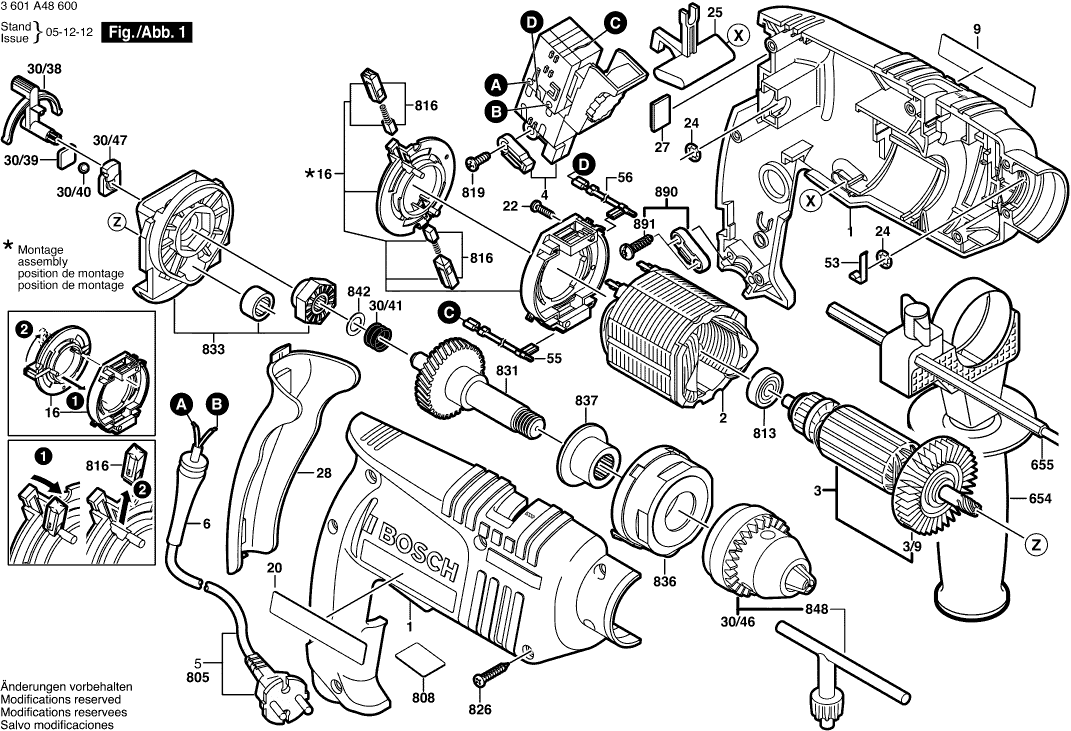

Technical drawing of model Bosch 3601A48600 ( GSB16RE )
Spare parts list of model Bosch 3601A48600 ( GSB16RE )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section BLUE | ||||
| 1 | 2605104711 | 26.84 | 32.48 | |
| Field 230-240V | ||||
| 2 | 2604220689 | 15.71 | 19.01 | |
| No longer available, no replacement | ||||
| 3 | 2604011254 | |||
| Fan | ||||
| 3/9 | 2606610093 | 2.24 | 2.71 | |
| Switch | ||||
| 4 | 2607200556 | 23.75 | 28.74 | |
| Power supply cord EU 230V 4,15m 2 x 1,0mm H05 RN- | ||||
| 5 | 1607000386 | 15.71 | 19.01 | |
| No longer available, no replacement | ||||
| 6 | 2600707066 | |||
| Manufacturer's nameplate GSB 16 RE | ||||
| 9 | 2601116655 | 2.71 | 3.28 | |
| No longer available, no replacement | ||||
| 16 | 2604337115 | |||
| Reference Plate SHADOW SIDE | ||||
| 20 | 2601117427 | 4.10 | 4.96 | |
| Tapping Screw DIN 7981-ST2,2x9,5-C-H | ||||
| 22 | 2910611002 | 0.83 | 1.00 | |
| O-Ring 5,0x1,5 MM | ||||
| 24 | 1900210000 | 1.18 | 1.43 | |
| Change-Over Switch RED | ||||
| 25 | 2602098008 | 0.83 | 1.00 | |
| Damping Element | ||||
| 27 | 2603239024 | 0.83 | 1.00 | |
| Handle Cover BLACK | ||||
| 28 | 2608040177 | 4.10 | 4.96 | |
| Indexing Disk | ||||
| 30/38 | 2601990027 | 1.18 | 1.43 | |
| Pressure Plate | ||||
| 30/39 | 2601074004 | 0.83 | 1.00 | |
| Ball DIN 5401-5 G28 | ||||
| 30/40 | 1903230009 | 0.83 | 1.00 | |
| Compression Spring | ||||
| 30/41 | 2604616006 | 1.18 | 1.43 | |
| Key Chuck | ||||
| 30/46 | 2608571065 | 33.45 | 40.47 | |
| Frame | ||||
| 30/47 | 2608040120 | 1.94 | 2.35 | |
| Contact Strap | ||||
| 53 | 2601329043 | 1.94 | 2.35 | |
| Pvc-Insulated Cable L=95 MM | ||||
| 55 | 1614431025 | 1.94 | 2.35 | |
| Pvc-Insulated Cable L=120 MM BLUE | ||||
| 56 | 2604448228 | 1.70 | 2.06 | |
| Auxiliary Handle Ø43 MM | ||||
| 654 | 2602025118 | 11.88 | 14.37 | |
| Depth-Gauge SW 6x210 MM | ||||
| 655 | 1613001009 | 2.71 | 3.28 | |
| Marking Plate | ||||
| 808 | 2601115234 | 2.71 | 3.28 | |
| Ball Bearing 7x19x6 | ||||
| 813 | 2600905032 | 4.10 | 4.96 | |
| No longer available, no replacement | ||||
| 816 | 2604321946 | |||
| Tapping Screw DIN 7981-ST2,9x13-C-H | ||||
| 819 | 2910611006 | 1.18 | 1.43 | |
| Tapping Screw DIN 7981-ST3,9x19-C-H | ||||
| 826 | 2910611020 | 1.18 | 1.43 | |
| Drilling Spindle | ||||
| 831 | 2606135932 | 20.42 | 24.71 | |
| Bearing Bracket | ||||
| 833 | 2605807937 | 15.71 | 19.01 | |
| Gear Cover | ||||
| 836 | 2605808084 | 2.71 | 3.28 | |
| Flanged Bearing | ||||
| 837 | 2605805009 | 10.73 | 12.98 | |
| Shim 0,3 MM | ||||
| 842 | 2600101047 | 1.18 | 1.43 | |
| Chuck Wrench SG2 | ||||
| 848 | 2607950007 | 5.33 | 6.45 | |
| Fastening parts kit | ||||
| 890 | 2607001305 | 3.31 | 4.01 | |
| Cross Recessed-Head Screw M3x5 | ||||
| 891 | 2603410046 | 1.70 | 2.06 | |
