Here you will find all available parts and drawings of the 'Bosch 0601148703 ( GSB16RE )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

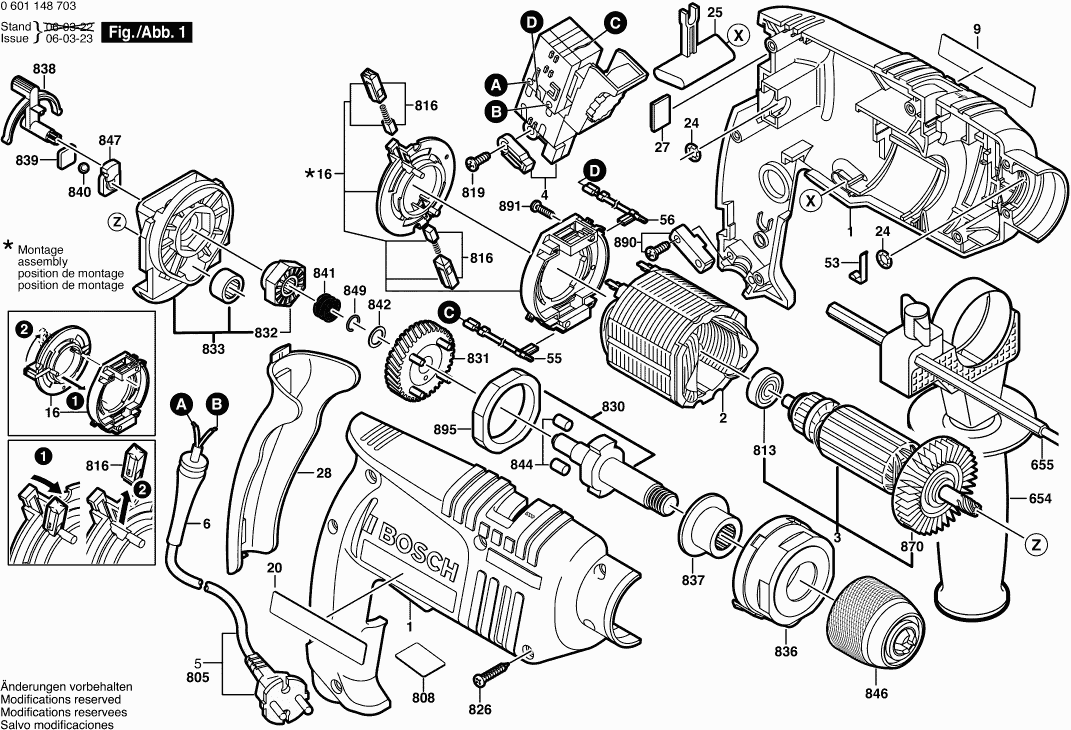

Technical drawing of model Bosch 0601148703 ( GSB16RE )
Spare parts list of model Bosch 0601148703 ( GSB16RE )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section BLUE | ||||
| 1 | 2605104711 | 26.84 | 32.48 | |
| Field 230-240V | ||||
| 2 | 2604220688 | 23.75 | 28.74 | |
| No longer available, no replacement | ||||
| 3 | 2604011254 | |||
| Switch | ||||
| 4 | 2607200556 | 23.75 | 28.74 | |
| Grommet Ø6,4-Ø7,2x76 MM | ||||
| 6 | 2600703017 | 1.94 | 2.35 | |
| Manufacturer's nameplate GSB 16 RE | ||||
| 9 | 2601116655 | 2.71 | 3.28 | |
| No longer available, no replacement | ||||
| 16 | 2604337115 | |||
| Reference Plate SHADOW SIDE | ||||
| 20 | 2601117427 | 4.10 | 4.96 | |
| O-Ring 5,0x1,5 MM | ||||
| 24 | 1900210000 | 1.18 | 1.43 | |
| Change-Over Switch RED | ||||
| 25 | 2602098008 | 0.83 | 1.00 | |
| Damping Element | ||||
| 27 | 2603239024 | 0.83 | 1.00 | |
| Handle Cover BLACK | ||||
| 28 | 2608040177 | 4.10 | 4.96 | |
| Contact Strap | ||||
| 53 | 2601329043 | 1.94 | 2.35 | |
| Pvc-Insulated Cable L=95 MM | ||||
| 55 | 1614431025 | 1.94 | 2.35 | |
| Pvc-Insulated Cable L=120 MM BLUE | ||||
| 56 | 2604448228 | 1.70 | 2.06 | |
| Auxiliary Handle Ø43 MM | ||||
| 654 | 2602025118 | 11.88 | 14.37 | |
| Depth-Gauge SW 6x210 MM | ||||
| 655 | 1613001009 | 2.71 | 3.28 | |
| Power supply cord EU 2,6m 2 x 1,0 mm | ||||
| 805 | 1607000385 | 11.88 | 14.37 | |
| Marking Plate | ||||
| 808 | 2601117447 | 2.71 | 3.28 | |
| Ball Bearing 7x19x6 | ||||
| 813 | 2600905032 | 4.10 | 4.96 | |
| No longer available, no replacement | ||||
| 816 | 2604321946 | |||
| Tapping Screw DIN 7981-ST2,9x13-C-H | ||||
| 819 | 2910611006 | 1.18 | 1.43 | |
| Tapping Screw DIN 7981-ST3,9x19-C-H | ||||
| 826 | 2910611020 | 1.18 | 1.43 | |
| Drilling Spindle 1/2" | ||||
| 830 | 2606135931 | 13.93 | 16.86 | |
| Carrier 1,0 M | ||||
| 831 | 2606320083 | 11.88 | 14.37 | |
| Catch Disk | ||||
| 832 | 2600190078 | 4.10 | 4.96 | |
| Bearing Bracket | ||||
| 833 | 2605807937 | 15.71 | 19.01 | |
| Gear Cover | ||||
| 836 | 2605808084 | 2.71 | 3.28 | |
| Flanged Bearing | ||||
| 837 | 2605805009 | 10.73 | 12.98 | |
| Indexing Disk | ||||
| 838 | 2601990027 | 1.18 | 1.43 | |
| Pressure Plate | ||||
| 839 | 2601074004 | 0.83 | 1.00 | |
| Ball DIN 5401-5 G28 | ||||
| 840 | 1903230009 | 0.83 | 1.00 | |
| Compression Spring | ||||
| 841 | 2604616006 | 1.18 | 1.43 | |
| Shim 0,3 MM | ||||
| 842 | 2600101047 | 1.18 | 1.43 | |
| Roller Body | ||||
| 844 | 2602329038 | 1.18 | 1.43 | |
| Keyless Chuck | ||||
| 846 | 1600A028TE | 46.67 | 56.47 | |
| Frame | ||||
| 847 | 2608040120 | 1.94 | 2.35 | |
| Fan | ||||
| 849 | 2606610093 | 2.24 | 2.71 | |
| Retaining ring DIN 7993-A8 | ||||
| 849 | 2916540005 | 0.83 | 1.00 | |
| Fan | ||||
| 870 | 2606610093 | 2.24 | 2.71 | |
| Fastening parts kit | ||||
| 890 | 2607001305 | 3.31 | 4.01 | |
| Cross Recessed-Head Screw M3x5 | ||||
| 891 | 2603410046 | 1.70 | 2.06 | |
| Retaining snap ring | ||||
| 895 | 2600290044 | 2.24 | 2.71 | |
