Here you will find all available parts and drawings of the 'Bosch 0601140603 ( GSB16RE )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

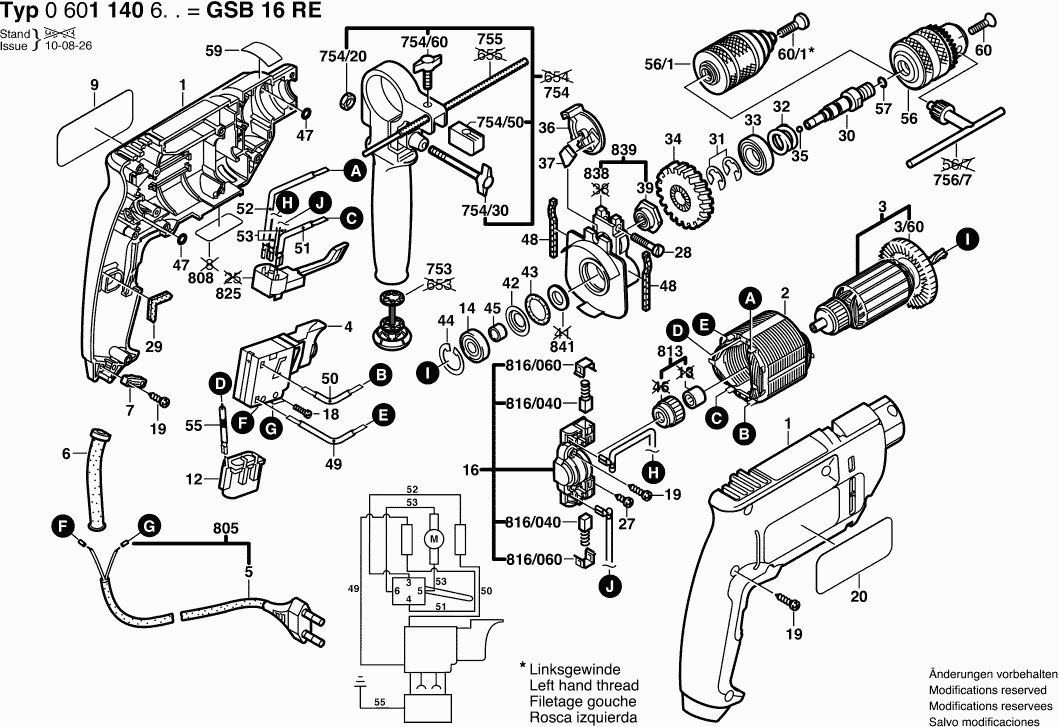

Technical drawing of model Bosch 0601140603 ( GSB16RE )

Spare parts list of model Bosch 0601140603 ( GSB16RE )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Housing Section BLUE
1 2605104436 26.84 32.48
Field 240V
2 2604220430 23.75 28.74
Armature 230-240V
3 2604011077 44.82 54.23
Fan
3/60 2606610029 1.94 2.35
No longer available, no replacement
4 2607200209
Grommet Ø6,9 MM
6 2600707059 2.24 2.71
Cable Clip
7 2601035001 1.18 1.43
Manufacturer's nameplate SUNNY SIDE
9 2601118433 1.70 2.06
No longer available, no replacement
12 2607329114
groove ball bearing 9x24x7
14 2600905039 9.53 11.53
No longer available, no replacement
16 2605807060
Socket head cap screw M3x6,5-4.8
18 2603410001 1.18 1.43
Screw 4x16
19 2603490022 0.83 1.00
Reference Plate SHADOW SIDE
20 2601118434 1.70 2.06
Torx Oval-Head Screw 3x10
27 2603490017 1.70 2.06
Socket head cap screw DIN 84-BM4x30-8.8
28 2910021134 1.18 1.43
No longer available, no replacement
29 2601022000
No longer available, no replacement
30 2606135033
Locking Washer 0,3 MM
31 2600118006 1.70 2.06
Locking Washer 1,2 MM
31 2600118007 1.18 1.43
Locking Washer 0,8 MM
31 2600118002 1.18 1.43
Locking Washer 0,6 MM
31 2600118001 0.83 1.00
Compression Spring
32 2604617000 1.94 2.35
groove ball bearing 15x32x9
33 1900905122 7.58 9.17
Cylindrical Gear Z=42
34 2606320050 13.93 16.86
Ball DIN 5401-5,5MM-III-ST
35 1903230010 0.83 1.00
No longer available, no replacement
36 2601990001
Pressure Plate
37 2601074003 0.83 1.00
No longer available, no replacement
39 2606490056
Cupped Washer
42 2600500014 1.18 1.43
O-Ring 18x3 MM
43 1900210117 2.71 3.28
Spring retaining ring DIN 472-24x1,2 MM
44 2916660008 1.70 2.06
Receptacle
45 2600400008 1.18 1.43
O-Ring 5,0x1,5 MM
47 1900210000 1.18 1.43
Felt Strip
48 2601005011 1.70 2.06
No longer available, no replacement
49 2604448060
No longer available, no replacement
50 2604448045
Connecting Cable L=88 MM WHITE
51 2604448034 1.18 1.43
Connecting Cable L=103 MM BLUE
52 2604448132 0.83 1.00
Connecting Cable L=73 MM WHITE
53 2604448115 0.83 1.00
Earth Conductor
55 2604448103 0.83 1.00
Keyless Chuck Ø 1,5-13 MM, 1/2"
56 2608572106 81.47 98.58
Chuck Ø1,5-13 MM, 1/2"
56 1608571069 20.42 24.71
Retaining ring
57 2604601004 1.18 1.43
No longer available, no replacement
59 2601110580
No longer available, no replacement
60 2603421215
No longer available, no replacement
60/1 2603421213
No longer available, no replacement
753 2607000122
Auxiliary Handle
754 1619PB4323 7.58 9.17
Hex Nut DIN 934-M6-8-A
754/20 2915011007 0.83 1.00
Wing Screw M6x(15)55
754/30 1613480007 1.18 1.43
No longer available, no replacement
754/50 2608040014
Wing Screw M6x20 MM
754/60 1613480008 1.18 1.43
No longer available, no replacement
755 1613001005
Chuck Wrench SG2
756/7 2607950007 5.33 6.45
Power supply cord EU 2,6m 2 x 1,0 mm
805 1607000385 11.88 14.37
Nameplate
808 2601119001 2.71 3.28
No longer available, no replacement
813 2600917902
No longer available, no replacement
816/040 2604321913
Ratchet Cap
816/060 2601322013 1.18 1.43
Ratchet Cap
816/060 2601329051 1.18 1.43
Change-Over Switch
825 2607200231 12.41 15.02
No longer available, no replacement
838 2605807029
Bearing Bracket
839 2605807915 15.71 19.01
Felt Washer
841 2600108000 1.18 1.43
