Here you will find all available parts and drawings of the 'Bosch 3601JF1280 ( GSB14,4VE-EC )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

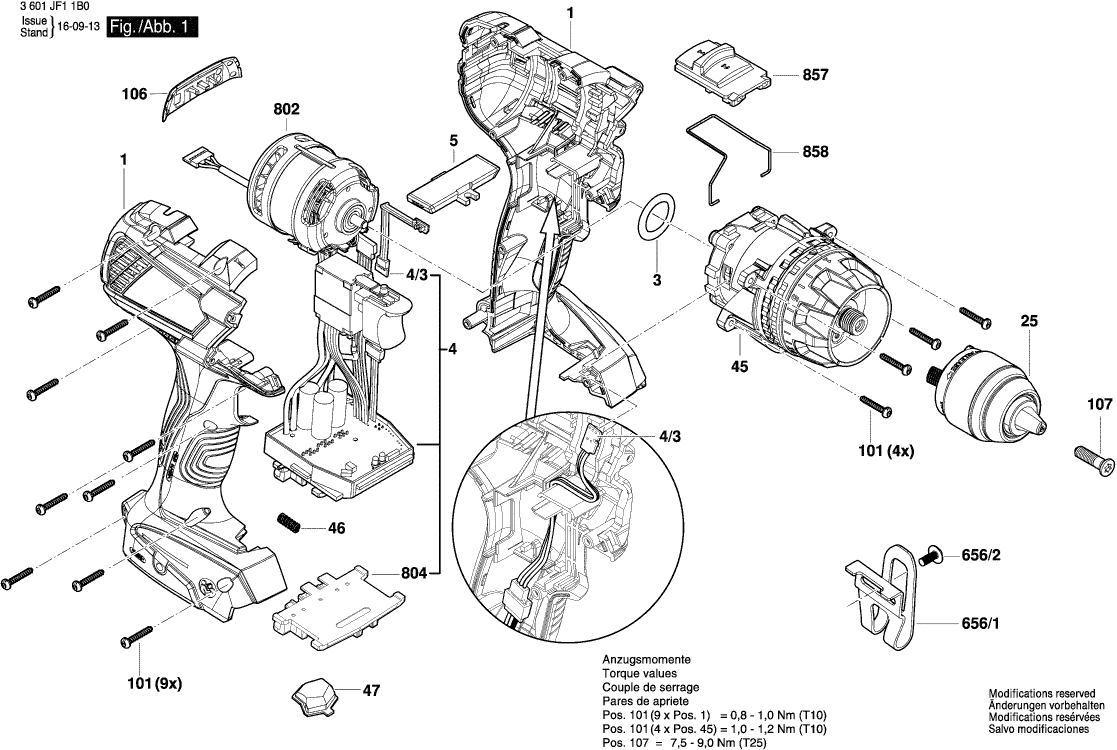

Technical drawing of model Bosch 3601JF1280 ( GSB14,4VE-EC )

Spare parts list of model Bosch 3601JF1280 ( GSB14,4VE-EC )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Housing
1 2609101604 23.75 28.74
O-Ring
3 2609170278 1.70 2.06
Electronics Module
4 16072335AA 113.29 137.08
Printed-Board Assembly
4/3 1607503182 5.33 6.45
Adjusting lever
5 2609101551 0.83 1.00
Keyless Chuck
25 1600A01YE8 29.75 36.00
Gear Box
45 2609199916 130.32 157.69
Compression Spring
46 1609280477 1.18 1.43
Lens
47 2609101490 1.18 1.43
Battery Pack BBS-MR XL-PACK 14,4V, LI, 4,0 Ah
91 2607336813 91.56 110.79
Sticker
91/1/22 2601115537 1.18 1.43
Torx Oval-Head Screw
101 2609110353 1.70 2.06
Color clip
106 2609101581 1.18 1.43
Countersunk-Head Screw M6x23 LEFTHAND THREADS
107 2603421229 1.18 1.43
Auxiliary Handle
650 160202507X 15.71 19.01
Charger CN GAL 1880 CV 220V/14,4-18V
653 2607225937 113.29 137.08
Clip
656/1 2609111584 2.71 3.28
Screw
656/2 2609110834 1.18 1.43
Motor Spare Parts Set
802 2609199942 91.56 110.79
Contact retainer 14,4 V
804 1609280821 4.70 5.69
Switch Slide
857 2609101554 1.70 2.06
Switch Spring
858 2609112036 0.83 1.00
