Here you will find all available parts and drawings of the 'Bosch 3601H59T00 ( GSB14,4VE-2LI )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

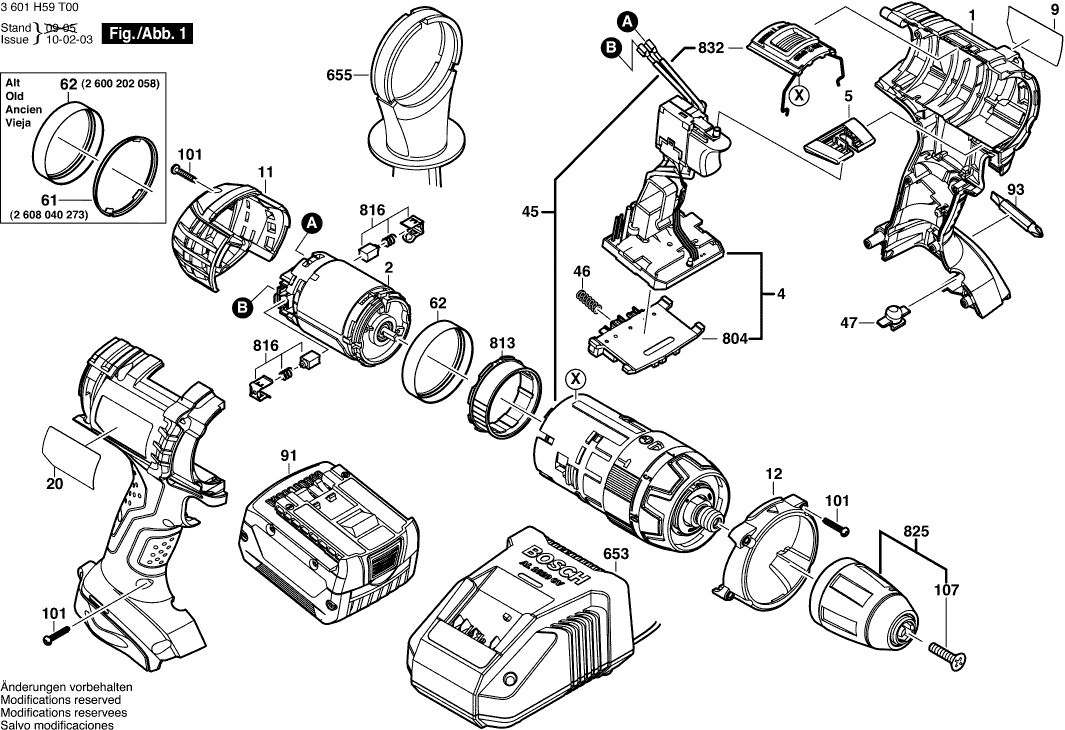

Technical drawing of model Bosch 3601H59T00 ( GSB14,4VE-2LI )
Spare parts list of model Bosch 3601H59T00 ( GSB14,4VE-2LI )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section BLUE | ||||
| 1 | 2605105140 | 20.42 | 24.71 | |
| No longer available, no replacement | ||||
| 2 | 2607022319 | |||
| No longer available, no replacement | ||||
| 4 | 1607233331 | |||
| Adjusting lever RED | ||||
| 5 | 2601099196 | 0.83 | 1.00 | |
| Manufacturer's nameplate GSB 14,4 VE-2LI | ||||
| 9 | 2601115642 | 0.83 | 1.00 | |
| End cap BLACK | ||||
| 11 | 2600508066 | 3.31 | 4.01 | |
| Front Cap | ||||
| 12 | 2600510011 | 1.94 | 2.35 | |
| Nameplate | ||||
| 20 | 2601115643 | 1.94 | 2.35 | |
| Planetary Gear Train | ||||
| 45 | 2606200257 | 187.62 | 227.02 | |
| Compression Spring | ||||
| 46 | 1609280477 | 1.18 | 1.43 | |
| Lens | ||||
| 47 | 2605190895 | 0.83 | 1.00 | |
| Retaining snap ring | ||||
| 62 | 2600202067 | 5.33 | 6.45 | |
| Battery Pack BBS-MR XL-PACK 14,4V, LI, 4,0 Ah | ||||
| 91 | 2607336813 | 91.56 | 110.79 | |
| Screwdriver Blade 6 MM | ||||
| 93 | 1609200147 | 2.71 | 3.28 | |
| Torx Oval-Head Screw 3x18 | ||||
| 101 | 2603490018 | 0.83 | 1.00 | |
| Countersunk-Head Screw M6x23 LEFTHAND THREADS | ||||
| 107 | 2603421229 | 1.18 | 1.43 | |
| Fast Charger AUS 240/10,8-18V, 30 MIN | ||||
| 653 | 2607225325 | 113.29 | 137.08 | |
| Charger GB 230/10,8-18V, 30 42 S | ||||
| 653 | 2607225923 | 113.29 | 137.08 | |
| Charger ROK GAL 1880 CV 220V/14,4-18V | ||||
| 653 | 2607225933 | 113.29 | 137.08 | |
| Fast Charger | ||||
| 653 | 2607225333 | 106.68 | 129.08 | |
| Charger EU 230/14,4-18V, 30 40 S | ||||
| 653 | 2607225321 | 55.25 | 66.85 | |
| Auxiliary Handle | ||||
| 655 | 2602025158 | 10.73 | 12.98 | |
| Contact retainer | ||||
| 804 | 1609280474 | 11.88 | 14.37 | |
| Locating ring | ||||
| 813 | 2600510012 | 2.71 | 3.28 | |
| Carbon-Brush Set 10 x 2 607 034 904 | ||||
| 816 | 1607000488 | 73.72 | 89.20 | |
| Keyless Chuck | ||||
| 825 | 2608572901 | 55.25 | 66.85 | |
| Adjusting lever | ||||
| 832 | 2601099213 | 6.54 | 7.91 | |
