Here you will find all available parts and drawings of the 'Bosch 0601184351 (GSB13RE)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

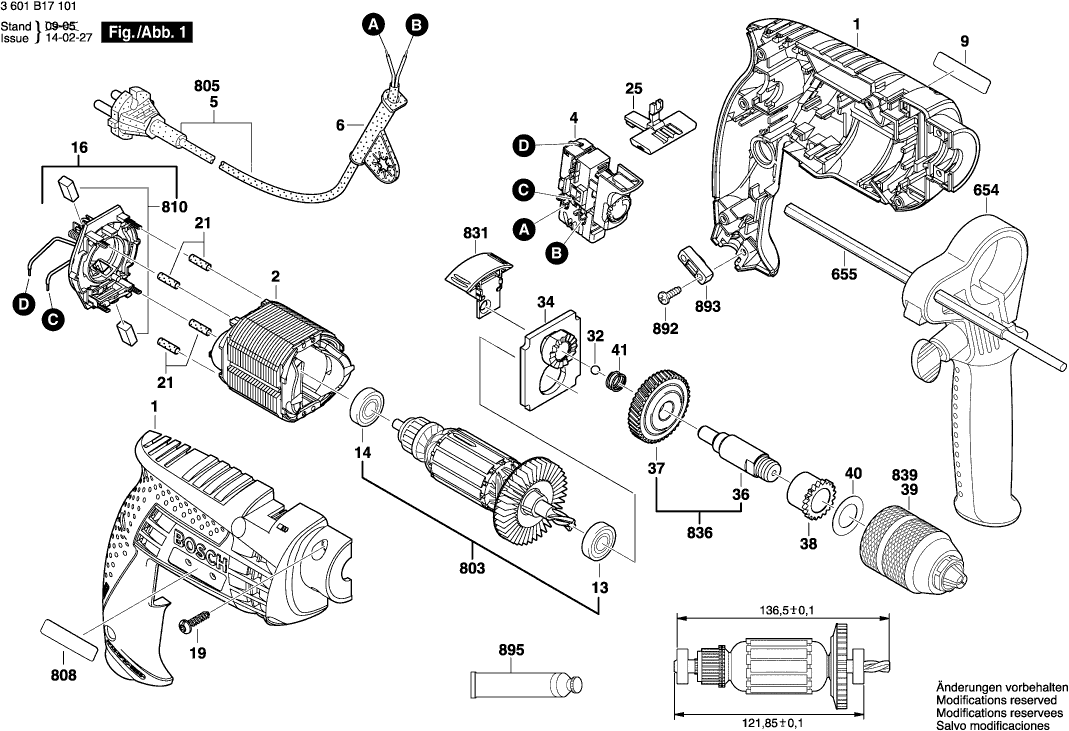

Technical drawing of model Bosch 0601184351 (GSB13RE)
Spare parts list of model Bosch 0601184351 (GSB13RE)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 2605104653 | 13.02 | 15.75 | |
| Field | ||||
| 2 | 1604220254 | 21.30 | 25.77 | |
| Armature With Fan | ||||
| 3 | 2604011222 | 45.52 | 55.08 | |
| Fan | ||||
| 3/50 | 2606610029 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 4 | 2607200209 | |||
| Power supply cord | ||||
| 5 | 1604460312 | 9.67 | 11.70 | |
| Grommet | ||||
| 6 | 2600707059 | 3.44 | 4.16 | |
| Grommet | ||||
| 6 | 2600707060 | 2.40 | 2.90 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.49 | 1.80 | |
| Manufacturer's nameplate | ||||
| 9 | 1619P00811 | 2.18 | 2.64 | |
| No longer available, no replacement | ||||
| 12 | 2607329114 | |||
| Ball Bearing | ||||
| 13 | 1900905018 | 16.79 | 20.32 | |
| groove ball bearing | ||||
| 14 | 1619P02417 | 5.96 | 7.21 | |
| Socket head cap screw | ||||
| 18 | 2603410001 | 1.49 | 1.80 | |
| Screw | ||||
| 19 | 1619P00029 | 1.00 | 1.21 | |
| Reference Plate | ||||
| 20 | 2601117095 | 3.04 | 3.68 | |
| Drilling Spindle | ||||
| 24 | 2606135086 | 14.82 | 17.93 | |
| Gear Housing | ||||
| 25 | 2605806422 | 14.82 | 17.93 | |
| Compression Spring | ||||
| 26 | 2604616006 | 1.49 | 1.80 | |
| Sintered-Metal Bushing | ||||
| 27 | 2600301031 | 3.71 | 4.49 | |
| Spring retaining ring | ||||
| 28 | 2916650008 | 1.49 | 1.80 | |
| Shim | ||||
| 29 | 2600101047 | 1.49 | 1.80 | |
| No information available, not orderable | ||||
| 30 | 2602300034 | |||
| Retaining Washer | ||||
| 31 | 2600101084 | 1.49 | 1.80 | |
| Shim | ||||
| 32 | 2600101515 | 1.00 | 1.21 | |
| Cylindrical Gear | ||||
| 33 | 2606317083 | 10.90 | 13.19 | |
| No information available, not orderable | ||||
| 34 | 2606317082 | |||
| Guiding Plate | ||||
| 35 | 2601098031 | 1.49 | 1.80 | |
| Catch Disk | ||||
| 36 | 2600190070 | 5.81 | 7.03 | |
| Catch Disk | ||||
| 37 | 2600190071 | 6.73 | 8.14 | |
| Thread-forming tap. Screw | ||||
| 38 | 2603410048 | 1.49 | 1.80 | |
| Shim washer | ||||
| 39 | 2600000012 | 1.00 | 1.21 | |
| Shim washer | ||||
| 39 | 2600000014 | 1.00 | 1.21 | |
| Ball | ||||
| 40 | 1903230010 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 41 | 2602026072 | |||
| Slotted Spring Pin | ||||
| 42 | 2917780101 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 44 | 2601328033 | |||
| Torx Oval-Head Screw | ||||
| 45 | 1619P00220 | 1.00 | 1.21 | |
| Housing Cover | ||||
| 46 | 2605132051 | 6.53 | 7.90 | |
| Brush Holder | ||||
| 47/40 | 2604337003 | 2.08 | 2.52 | |
| Torx Oval-Head Screw | ||||
| 48 | 1619P00220 | 1.00 | 1.21 | |
| Shim | ||||
| 49 | 2600150004 | 2.08 | 2.52 | |
| Shim washer | ||||
| 50 | 2600101665 | 1.49 | 1.80 | |
| Shim washer | ||||
| 50 | 2600101667 | 1.49 | 1.80 | |
| Shim washer | ||||
| 50 | 2600101027 | 1.49 | 1.80 | |
| Cable | ||||
| 51 | 2604448005 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 52 | 2607200216 | |||
| Connecting Cable | ||||
| 53 | 2604448100 | 1.00 | 1.21 | |
| Connecting Cable | ||||
| 54 | 2604448146 | 1.49 | 1.80 | |
| No information available, not orderable | ||||
| 55 | 2604448254 | |||
| Needle-Roller Bearing | ||||
| 56 | 2600914010 | 2.86 | 3.46 | |
| Bearing Sleeve | ||||
| 57 | 2600400027 | 4.18 | 5.06 | |
| Shim | ||||
| 61 | 2600100607 | 1.49 | 1.80 | |
| Cupped Washer | ||||
| 62 | 2600500002 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 63 | 2603435070 | |||
| No longer available, no replacement | ||||
| 64 | 2603435071 | |||
| Adjusting Slide | ||||
| 66 | 2602033011 | 3.04 | 3.68 | |
| No information available, not orderable | ||||
| 68 | 2600100618 | |||
| No longer available, no replacement | ||||
| 69 | 2602026038 | |||
| Ratchet Cap | ||||
| 71 | 2600590006 | 1.49 | 1.80 | |
| Earth Conductor | ||||
| 72 | 2604448097 | 1.49 | 1.80 | |
| Suppression Filter | ||||
| 73 | 2604465097 | 5.81 | 7.03 | |
| Screw | ||||
| 75 | 1619P00106 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 76 | 1619P00105 | 1.49 | 1.80 | |
| Suppression Filter | ||||
| 77 | 2604465086 | 5.81 | 7.03 | |
| Countersunk-Head Screw | ||||
| 79 | 2603421226 | 1.49 | 1.80 | |
| Gasket | ||||
| 80 | 2601073012 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 753 | 1612025031 | |||
| Hex Nut | ||||
| 753/20 | 2915011007 | 1.00 | 1.21 | |
| Wing Screw | ||||
| 753/30 | 1613480007 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 753/50 | 2608040014 | |||
| Wing Screw | ||||
| 753/60 | 1613480008 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 754 | 1613001005 | |||
| Keyless Chuck | ||||
| 780/1 | 2608572106 | 98.18 | 118.80 | |
| Carbon-Brush Set | ||||
| 810 | 2604321905 | 9.67 | 11.70 | |
| No information available, not orderable | ||||
| 843 | 2605700941 | |||
| No longer available, no replacement | ||||
| 859 | 2606309931 | |||
| Locking washer | ||||
| 867 | 2916080007 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 870 | 2607010226 | |||
