Here you will find all available parts and drawings of the 'Bosch 0601131608 ( GSB13RE )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

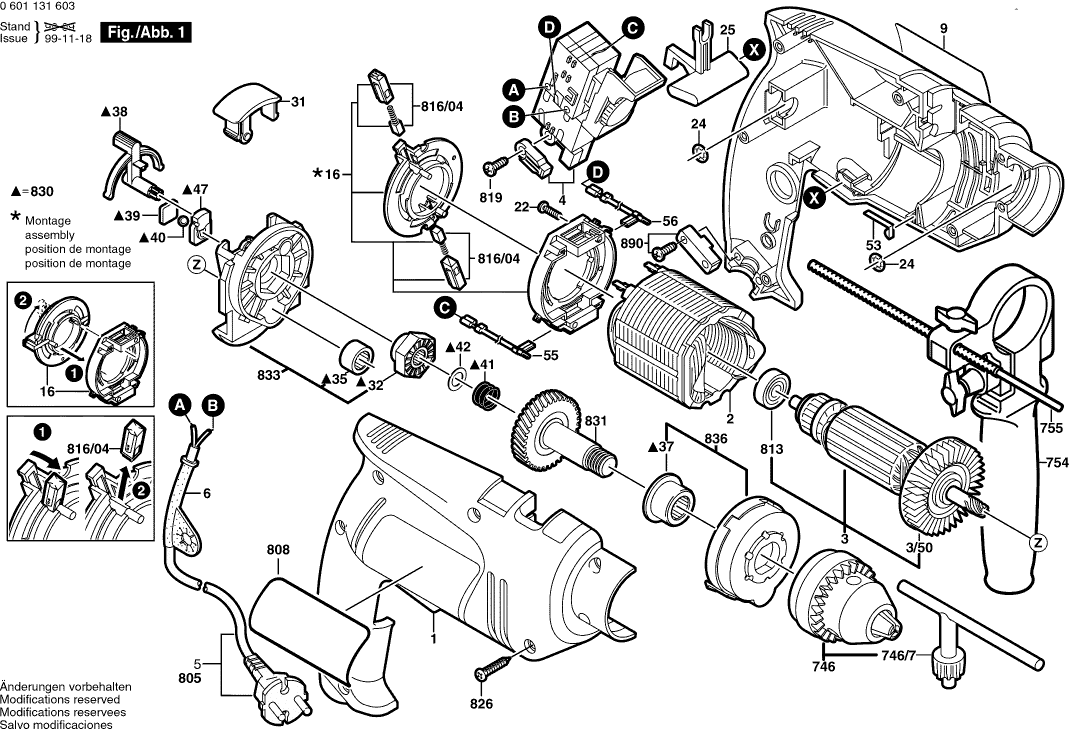

Technical drawing of model Bosch 0601131608 ( GSB13RE )
Spare parts list of model Bosch 0601131608 ( GSB13RE )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section | ||||
| 1 | 2605104733 | 20.42 | 24.71 | |
| No longer available, no replacement | ||||
| 2 | 2604220601 | |||
| Armature 220-230V | ||||
| 3 | 2604011259 | 40.61 | 49.14 | |
| Fan | ||||
| 3/50 | 2606610097 | 2.71 | 3.28 | |
| Switch | ||||
| 4 | 2607200556 | 23.75 | 28.74 | |
| No longer available, no replacement | ||||
| 6 | 2600707066 | |||
| Manufacturer's nameplate | ||||
| 9 | 2601116652 | 2.71 | 3.28 | |
| Brush Plate | ||||
| 16 | 2604337104 | 9.53 | 11.53 | |
| Tapping Screw DIN 7981-ST2,2x9,5-C-H | ||||
| 22 | 2910611002 | 0.83 | 1.00 | |
| O-Ring 5,0x1,5 MM | ||||
| 24 | 1900210000 | 1.18 | 1.43 | |
| Change-Over Switch RED | ||||
| 25 | 2602098008 | 0.83 | 1.00 | |
| Locking Piece | ||||
| 31 | 2605510189 | 2.71 | 3.28 | |
| Catch Disk | ||||
| 32 | 2600190078 | 4.10 | 4.96 | |
| Needle bearing | ||||
| 35 | 2600914019 | 4.10 | 4.96 | |
| Flanged Bearing | ||||
| 37 | 2605805009 | 10.73 | 12.98 | |
| No longer available, no replacement | ||||
| 38 | 2601990010 | |||
| Pressure Plate | ||||
| 39 | 2601074004 | 0.83 | 1.00 | |
| Ball DIN 5401-5 G28 | ||||
| 40 | 1903230009 | 0.83 | 1.00 | |
| Compression Spring | ||||
| 41 | 2604616006 | 1.18 | 1.43 | |
| Shim 0,3 MM | ||||
| 42 | 2600101047 | 1.18 | 1.43 | |
| Frame | ||||
| 47 | 2608040120 | 1.94 | 2.35 | |
| Contact Strap | ||||
| 53 | 2601329043 | 1.94 | 2.35 | |
| Pvc-Insulated Cable L=95 MM | ||||
| 55 | 1614431025 | 1.94 | 2.35 | |
| Pvc-Insulated Cable L=120 MM BLUE | ||||
| 56 | 2604448228 | 1.70 | 2.06 | |
| Tandkransboorhouder 1-13 1/2 | ||||
| 746 | 2608571056 | 0.83 | 1.00 | |
| Chuck Wrench SG2 | ||||
| 746/7 | 2607950007 | 5.33 | 6.45 | |
| Auxiliary Handle | ||||
| 754 | 1619PB4323 | 7.58 | 9.17 | |
| Depth-Gauge SW 6x210 MM | ||||
| 755 | 1613001009 | 2.71 | 3.28 | |
| Power supply cord EU 2,6m 2 x 1,0 mm | ||||
| 805 | 1607000385 | 11.88 | 14.37 | |
| Nameplate | ||||
| 808 | 2601117524 | 2.71 | 3.28 | |
| Ball Bearing 7x19x6 | ||||
| 813 | 2600905032 | 4.10 | 4.96 | |
| No longer available, no replacement | ||||
| 816/04 | 2607014017 | |||
| Torx Oval-Head Screw 3x10 | ||||
| 819 | 2603490017 | 1.70 | 2.06 | |
| Screw 4x16 | ||||
| 826 | 2603490022 | 0.83 | 1.00 | |
| Gear Unit | ||||
| 830 | 2606200094 | 36.85 | 44.59 | |
| Drilling Spindle | ||||
| 831 | 2606135933 | 18.19 | 22.01 | |
| Bearing Bracket | ||||
| 833 | 2605807933 | 15.71 | 19.01 | |
| Gear Cover | ||||
| 836 | 2605808925 | 15.71 | 19.01 | |
| Fastening parts kit | ||||
| 890 | 2607001305 | 3.31 | 4.01 | |
