Here you will find all available parts and drawings of the 'Bosch 0601930561 (GSB12VES)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

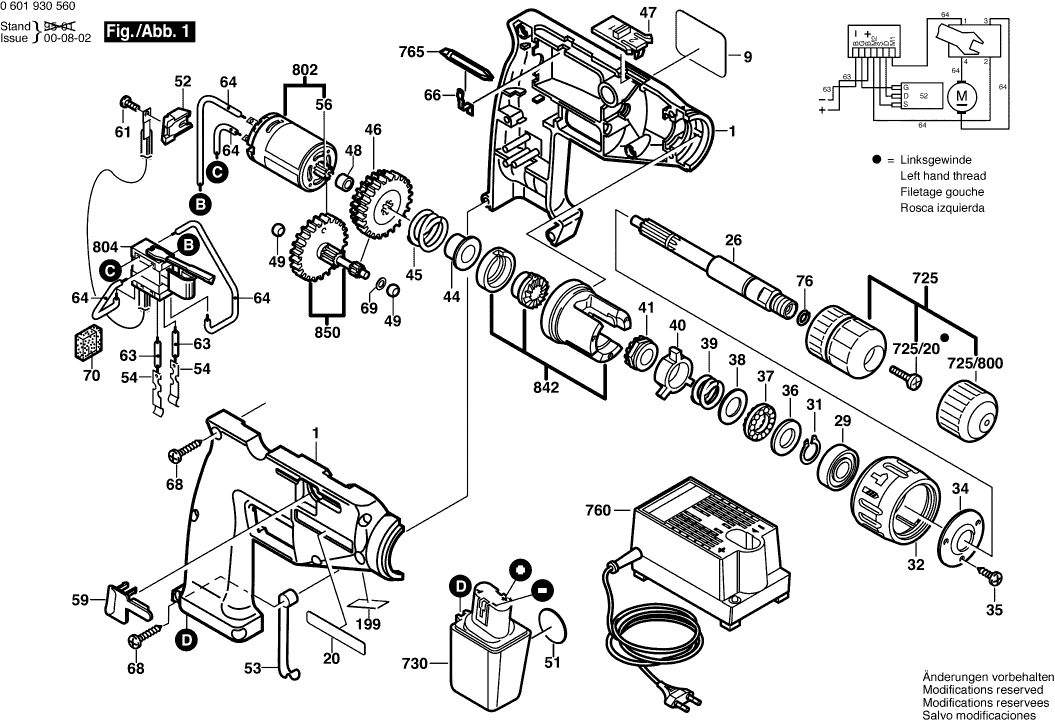

Technical drawing of model Bosch 0601930561 (GSB12VES)
Spare parts list of model Bosch 0601930561 (GSB12VES)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section | ||||
| 1 | 2605104355 | 18.94 | 22.92 | |
| Manufacturer's nameplate | ||||
| 9 | 2601118315 | 2.86 | 3.46 | |
| Sticker | ||||
| 20 | 2601110606 | 1.49 | 1.80 | |
| Drilling Spindle | ||||
| 26 | 2606135031 | 27.81 | 33.65 | |
| groove ball bearing | ||||
| 29 | 1900905122 | 9.67 | 11.70 | |
| Retaining clip | ||||
| 31 | 2916650006 | 1.49 | 1.80 | |
| Setting Ring | ||||
| 32 | 2600451001 | 13.13 | 15.89 | |
| Retaining Washer | ||||
| 34 | 2600190048 | 1.49 | 1.80 | |
| Thread-forming tap. Screw | ||||
| 35 | 2603490003 | 1.49 | 1.80 | |
| Bearing Ring | ||||
| 36 | 2600190049 | 10.90 | 13.19 | |
| Ball Cage | ||||
| 37 | 2600923001 | 3.44 | 4.16 | |
| Shim | ||||
| 38 | 2600101668 | 2.86 | 3.46 | |
| Compression Spring | ||||
| 39 | 2604617000 | 2.40 | 2.90 | |
| Backup ring | ||||
| 40 | 2600290021 | 5.81 | 7.03 | |
| Screen Disc | ||||
| 41 | 2606490049 | 12.82 | 15.51 | |
| Striker | ||||
| 44 | 2600322045 | 4.18 | 5.06 | |
| Compression Spring | ||||
| 45 | 2604618000 | 2.40 | 2.90 | |
| Cylindrical Gear | ||||
| 46 | 1609340007 | 13.13 | 15.89 | |
| Adjusting Slide | ||||
| 47 | 2601099027 | 1.49 | 1.80 | |
| Sintered-Metal Bushing | ||||
| 48 | 2600301011 | 1.49 | 1.80 | |
| Sintered-Metal Bushing | ||||
| 49 | 2600302002 | 1.49 | 1.80 | |
| Sticker | ||||
| 51 | 2601118299 | 1.49 | 1.80 | |
| Heat Sink | ||||
| 52 | 2605715000 | 4.18 | 5.06 | |
| No longer available, no replacement | ||||
| 53 | 2601251003 | |||
| Contact Spring | ||||
| 54 | 2601324012 | 1.49 | 1.80 | |
| Pinion | ||||
| 56 | 2606316120 | 7.46 | 9.03 | |
| Filler Piece | ||||
| 59 | 2605510027 | 1.49 | 1.80 | |
| Oval-Head Screw | ||||
| 61 | 2910641050 | 1.00 | 1.21 | |
| Connecting Cable | ||||
| 63 | 2604413005 | 1.49 | 1.80 | |
| Connecting Cable | ||||
| 64 | 2604413004 | 1.49 | 1.80 | |
| Holding Spring | ||||
| 66 | 2601250002 | 1.49 | 1.80 | |
| Screw | ||||
| 68 | 2603490022 | 1.00 | 1.21 | |
| Shim | ||||
| 69 | 2600100636 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 70 | 2601010038 | |||
| Retaining ring | ||||
| 76 | 2604601004 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 725 | 2608572023 | |||
| Countersunk-Head Screw | ||||
| 725/20 | 2603421211 | 2.08 | 2.52 | |
| Protective Flap | ||||
| 725/800 | 2600591006 | 12.82 | 15.51 | |
| No longer available, no replacement | ||||
| 730 | 2607335021 | |||
| Fast Charger | ||||
| 760 | 2607224705 | 155.51 | 188.17 | |
| Fast Charger | ||||
| 760 | 2607224443 | 98.18 | 118.80 | |
| Screwdriver Blade | ||||
| 765 | 1609200147 | 3.44 | 4.16 | |
| DC motor | ||||
| 802 | 2607022921 | 34.82 | 42.13 | |
| On-Off Switch | ||||
| 804 | 2607200302 | 47.53 | 57.51 | |
| Locating Washer | ||||
| 842 | 2606490915 | 31.42 | 38.02 | |
| Toothed Shaft | ||||
| 850 | 2606308914 | 18.94 | 22.92 | |
| No information available, not orderable | ||||
| 899 | 0601930570 | |||
