Here you will find all available parts and drawings of the 'Bosch 0601930566 ( GSB12VE )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

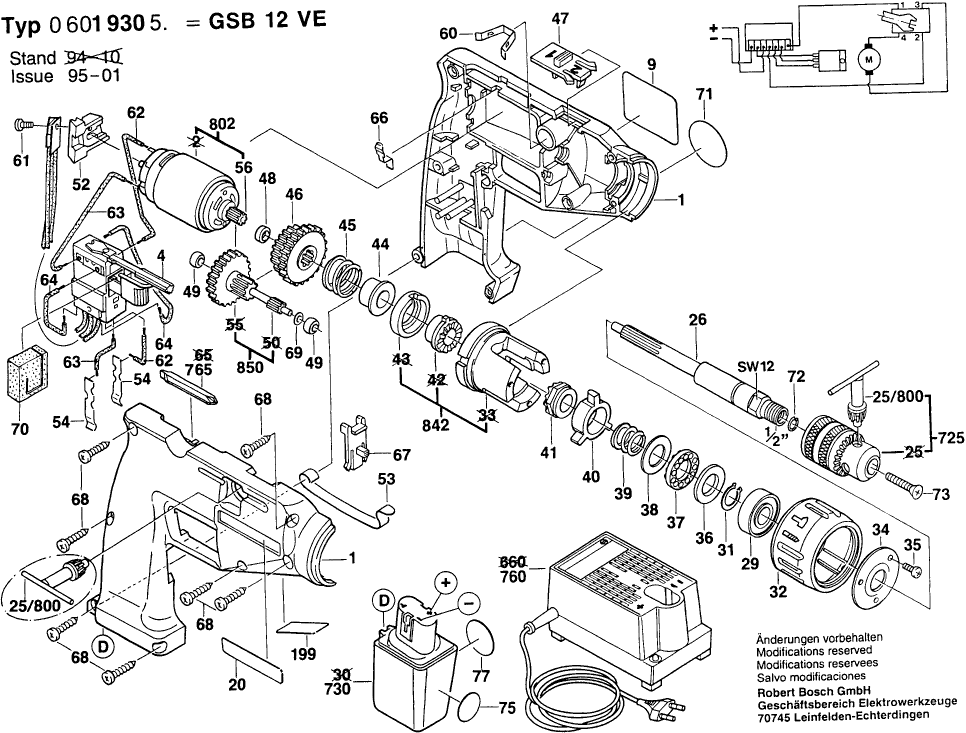

Technical drawing of model Bosch 0601930566 ( GSB12VE )
Spare parts list of model Bosch 0601930566 ( GSB12VE )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section BLUE | ||||
| 1 | 2605104355 | 15.71 | 19.01 | |
| On-Off Switch | ||||
| 4 | 2607200302 | 40.61 | 49.14 | |
| Sticker SUNNY SIDE | ||||
| 9 | 2601118092 | 1.70 | 2.06 | |
| Sticker SHADOW SIDE | ||||
| 20 | 2601110606 | 1.18 | 1.43 | |
| Drilling Spindle 1/2",SW 11,1/4" | ||||
| 26 | 2606135031 | 23.75 | 28.74 | |
| groove ball bearing 15x32x9 | ||||
| 29 | 1900905122 | 7.58 | 9.17 | |
| Retaining clip DIN 471-15x1-FSt | ||||
| 31 | 2916650006 | 1.18 | 1.43 | |
| Setting Ring | ||||
| 32 | 2600451001 | 11.88 | 14.37 | |
| Retaining Washer | ||||
| 34 | 2600190048 | 1.18 | 1.43 | |
| Thread-forming tap. Screw DIN 7500 C M 3x8 MM | ||||
| 35 | 2603490003 | 1.18 | 1.43 | |
| Bearing Ring | ||||
| 36 | 2600190049 | 8.45 | 10.22 | |
| Ball Cage | ||||
| 37 | 2600923001 | 2.71 | 3.28 | |
| Shim 1,5 MM | ||||
| 38 | 2600101668 | 2.24 | 2.71 | |
| Compression Spring | ||||
| 39 | 2604617000 | 1.94 | 2.35 | |
| Backup ring | ||||
| 40 | 2600290021 | 4.70 | 5.69 | |
| Screen Disc | ||||
| 41 | 2606490049 | 10.73 | 12.98 | |
| Striker | ||||
| 44 | 2600322045 | 3.31 | 4.01 | |
| Compression Spring | ||||
| 45 | 2604618000 | 1.94 | 2.35 | |
| Cylindrical Gear Z=58/67 | ||||
| 46 | 1609340007 | 11.88 | 14.37 | |
| Adjusting Slide BLACK | ||||
| 47 | 2601099027 | 1.18 | 1.43 | |
| Sintered-Metal Bushing | ||||
| 48 | 2600301011 | 1.18 | 1.43 | |
| Sintered-Metal Bushing | ||||
| 49 | 2600302002 | 1.18 | 1.43 | |
| Heat Sink | ||||
| 52 | 2605715000 | 3.31 | 4.01 | |
| No longer available, no replacement | ||||
| 53 | 2601251003 | |||
| Contact Spring | ||||
| 54 | 2601324012 | 1.18 | 1.43 | |
| Pinion Z=14 | ||||
| 56 | 2606316120 | 5.83 | 7.05 | |
| No longer available, no replacement | ||||
| 60 | 2601250003 | |||
| Oval-Head Screw DIN 7985-M3x8-4.8 | ||||
| 61 | 2910641050 | 0.83 | 1.00 | |
| Connecting Cable L=52 MM WHITE | ||||
| 63 | 2604413005 | 1.18 | 1.43 | |
| Connecting Cable L=79 MM WHITE | ||||
| 64 | 2604413004 | 1.18 | 1.43 | |
| Holding Spring | ||||
| 66 | 2601250002 | 1.18 | 1.43 | |
| Locking Lever 36,5 MM | ||||
| 67 | 2601099026 | 1.18 | 1.43 | |
| Screw 4x16 | ||||
| 68 | 2603490022 | 0.83 | 1.00 | |
| Shim 0,3 MM THICK | ||||
| 69 | 2600100636 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 70 | 2601010038 | |||
| Sticker YELLOW | ||||
| 71 | 2601110230 | 1.18 | 1.43 | |
| Retaining ring | ||||
| 72 | 2604601004 | 1.18 | 1.43 | |
| Countersunk-Head Screw M6x23 LEFTHAND THREADS | ||||
| 73 | 2603421229 | 1.18 | 1.43 | |
| Reference Plate | ||||
| 75 | 2601118023 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 199 | 1601110265 | |||
| Keyless Chuck Ø 2-13 MM,1/2" | ||||
| 725 | 2608572088 | 44.82 | 54.23 | |
| No longer available, no replacement | ||||
| 730 | 2607335021 | |||
| Fast Charger EU 230/7,2-24V, 1h | ||||
| 760 | 2607224425 | 130.32 | 157.69 | |
| Fast Charger EU 230/7,2-14,4V, 30 MIN. | ||||
| 760 | 2607224701 | 101.94 | 123.35 | |
| Screwdriver Blade 6 MM | ||||
| 765 | 1609200147 | 2.71 | 3.28 | |
| DC motor 9,6-12V | ||||
| 802 | 2607022921 | 29.75 | 36.00 | |
| Locating Washer | ||||
| 842 | 2606490915 | 26.84 | 32.48 | |
| Toothed Shaft Z= 10/19/63 | ||||
| 850 | 2606308914 | 15.71 | 19.01 | |
| No information available, not orderable | ||||
| 899 | 0601930520 | |||
