Here you will find all available parts and drawings of the 'Bosch 3601F4C003 ( GSA900E )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

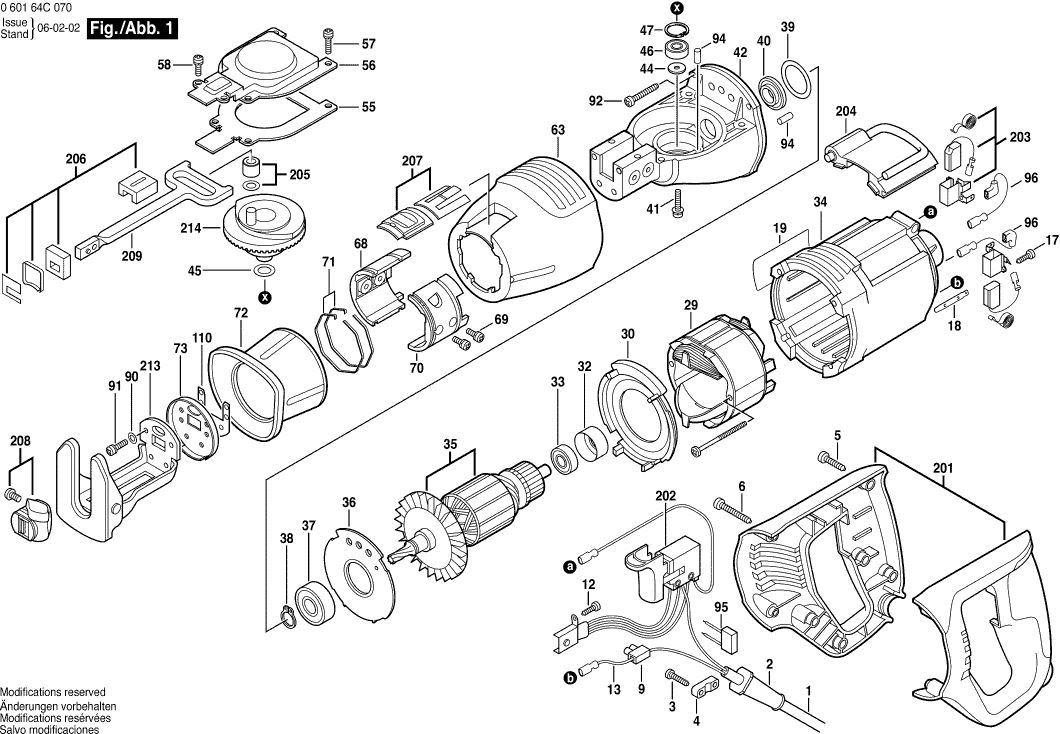

Technical drawing of model Bosch 3601F4C003 ( GSA900E )
Spare parts list of model Bosch 3601F4C003 ( GSA900E )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Power supply cord | ||||
| 1 | 2610927651 | 26.84 | 32.48 | |
| Grommet | ||||
| 2 | 2610938453 | 1.00 | 1.21 | |
| Screw | ||||
| 3 | 2610923220 | 1.00 | 1.21 | |
| Clamp | ||||
| 4 | 2610921077 | 0.83 | 1.00 | |
| Screw | ||||
| 5 | 2610923221 | 0.83 | 1.00 | |
| Screw | ||||
| 6 | 2610923222 | 1.00 | 1.21 | |
| connecting terminal | ||||
| 9 | 2610353428 | 1.00 | 1.21 | |
| Screw | ||||
| 12 | 2610998574 | 1.00 | 1.21 | |
| Cable | ||||
| 13 | 2610921102 | 1.00 | 1.21 | |
| Screw | ||||
| 17 | 2610923223 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 18 | 2610921103 | |||
| Nameplate | ||||
| 19 | 2610927650 | 4.58 | 5.54 | |
| No longer available, no replacement | ||||
| 29 | 2610927561 | |||
| No information available, not orderable | ||||
| 30 | 2610938454 | |||
| Rubber Bushing | ||||
| 32 | 2610921082 | 1.00 | 1.21 | |
| Ball Bearing | ||||
| 33 | 2610921079 | 5.27 | 6.38 | |
| Motor Housing | ||||
| 34 | 2610938457 | 26.84 | 32.48 | |
| Armature 220-230V | ||||
| 35 | 2610927562 | 73.72 | 89.20 | |
| Bearing Plate | ||||
| 36 | 2610938458 | 4.70 | 5.69 | |
| Ball Bearing | ||||
| 37 | 2610921080 | 7.32 | 8.86 | |
| Retaining snap ring | ||||
| 38 | 2610380120 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 39 | 2610921084 | |||
| Seal | ||||
| 40 | 2610921085 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 41 | 2610938459 | |||
| Gear Housing | ||||
| 42 | 2610938460 | 33.45 | 40.47 | |
| Washer | ||||
| 44 | 2610938462 | 1.00 | 1.21 | |
| Shim | ||||
| 45 | 2610938463 | 1.00 | 1.21 | |
| Ball Bearing | ||||
| 46 | 2610938464 | 7.58 | 9.17 | |
| Retaining snap ring | ||||
| 47 | 2610938465 | 1.00 | 1.21 | |
| Base Plate | ||||
| 55 | 2610921088 | 3.04 | 3.68 | |
| No longer available, no replacement | ||||
| 56 | 2610921089 | |||
| Screw | ||||
| 57 | 2610923217 | 1.00 | 1.21 | |
| Screw | ||||
| 58 | 2610923218 | 1.00 | 1.21 | |
| Cover | ||||
| 63 | 2610921091 | 15.71 | 19.01 | |
| Collar | ||||
| 68 | 2610921093 | 1.00 | 1.21 | |
| Screw | ||||
| 69 | 2610923216 | 1.00 | 1.21 | |
| Collar | ||||
| 70 | 2610921094 | 1.00 | 1.21 | |
| Locating ring | ||||
| 71 | 2610921095 | 1.00 | 1.21 | |
| Collar | ||||
| 72 | 2610921096 | 13.93 | 16.86 | |
| End Plate | ||||
| 73 | 2610921097 | 1.00 | 1.21 | |
| Washer | ||||
| 90 | 2610921101 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 91 | 2610923219 | |||
| Screw | ||||
| 92 | 2610923222 | 1.00 | 1.21 | |
| Rubber Plug | ||||
| 94 | 2610923225 | 1.00 | 1.21 | |
| Suppression Filter | ||||
| 95 | 2610927566 | 4.70 | 5.69 | |
| No information available, not orderable | ||||
| 96 | 2610927567 | |||
| Shim Plate | ||||
| 110 | 2610941383 | 1.00 | 1.21 | |
| Handle | ||||
| 201 | 2610921083 | 22.88 | 27.68 | |
| No longer available, no replacement | ||||
| 202 | 2610927563 | |||
| Carbon-Brush Set | ||||
| 203 | 2610921078 | 9.53 | 11.53 | |
| Hook | ||||
| 204 | 2610921104 | 5.27 | 6.38 | |
| No longer available, no replacement | ||||
| 205 | 2610921086 | |||
| No longer available, no replacement | ||||
| 206 | 2610921090 | |||
| Locking Lever | ||||
| 207 | 2610921092 | 2.18 | 2.64 | |
| No longer available, no replacement | ||||
| 208 | 2610921098 | |||
| No longer available, no replacement | ||||
| 209 | 2610921099 | |||
| No longer available, no replacement | ||||
| 213 | 2610933676 | |||
| Bevel Gear Set | ||||
| 214 | 2610941222 | 55.56 | 67.23 | |
