Here you will find all available parts and drawings of the 'Bosch 0601641708 (GSA800PE)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

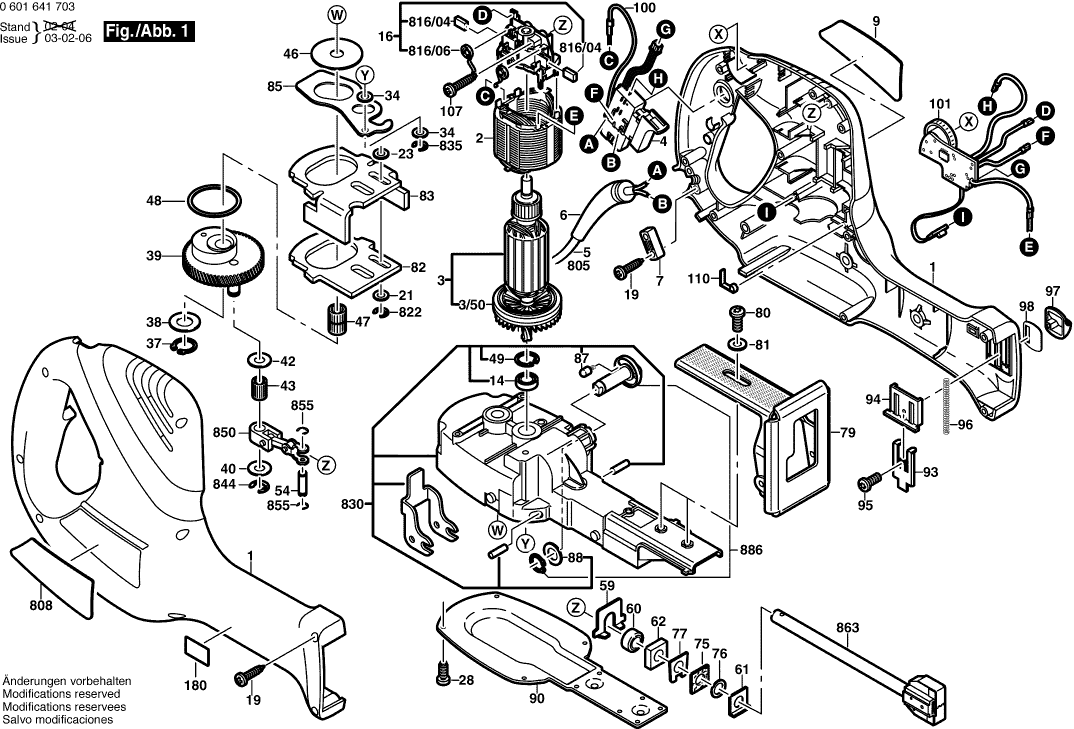

Technical drawing of model Bosch 0601641708 (GSA800PE)

Spare parts list of model Bosch 0601641708 (GSA800PE)

Pos.DescriptionPrice excl. VATPrice incl. VAT
Prices shown include VAT

No information available, not orderable
12605104602

No information available, not orderable
22604220692

No longer available, no replacement
32604011188

Fan
3/5026066100894.945.98

No information available, not orderable
42607200529

Grommet
626007030172.402.90

Cable Clip
726010350011.491.80

No information available, not orderable
92601119606

Ball Bearing
14260090509511.3713.76

Brush Plate
16260580708227.8133.65

Screw
1926034900221.001.21

No information available, not orderable
212600100525

No information available, not orderable
232600100103

Thread-forming tap. Screw
2826034100491.491.80

Shim
3426001000401.491.80

Spring retaining ring
3729166509031.491.80

Shim
3826001050011.001.21

No information available, not orderable
392606320061

No longer available, no replacement
402600100647

Shim
4226001010481.491.80

No information available, not orderable
432600913003

No information available, not orderable
462600105003

No information available, not orderable
472600913008

No information available, not orderable
482600105004

Spring retaining ring
4929166600082.082.52

Pivot Pin
5426031050651.491.80

Guiding Plate
5926013340101.001.21

Sintered-Metal Bushing
6026003020172.402.90

Sealing disk
6126013340111.001.21

Felt Disc
6226001080781.001.21

Rubber Gasket
7526010150821.491.80

Scraper
7626001010381.001.21

Guiding Plate
7726013340121.001.21

No longer available, no replacement
792608000222

Oval-Head Screw
8026034140071.001.21

No information available, not orderable
813600100002

No information available, not orderable
822608012008

No information available, not orderable
832608012009

No information available, not orderable
852601923011

Ratchet Cap
8726005900061.491.80

Shim
8826001005752.082.52

Shim
8826001005771.491.80

No information available, not orderable
902605500142

Guide Plate
9326080050691.491.80

No longer available, no replacement
942608005061

Torx Oval-Head Screw
9526034900172.082.52

Sealing disk
9626046100641.001.21

Push-Button
9726020260772.082.52

Slide Plate
9826010980691.321.60

No information available, not orderable
1002604448217

Speed governor
101260723005830.0836.40

Torx Oval-Head Screw
10726034900241.491.80

Contact Spring
11026013290572.402.90

Power supply cord
805160700038618.9422.92

No information available, not orderable
8082601117078

No longer available, no replacement
816/042604320914

Spiral Spring
816/0616046520131.491.80

Locking washer
82229160809091.001.21

Gear Housing
830260580689952.4563.46

No longer available, no replacement
8352916080008

Locking washer
84429160809102.082.52

No information available, not orderable
8502602130902

Locking washer
85529160800072.402.90

Lifting Rod
863260078090758.0370.22

No longer available, no replacement
8862602026903
