Here you will find all available parts and drawings of the 'Bosch 3601F45F00 ( GSA18VE )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

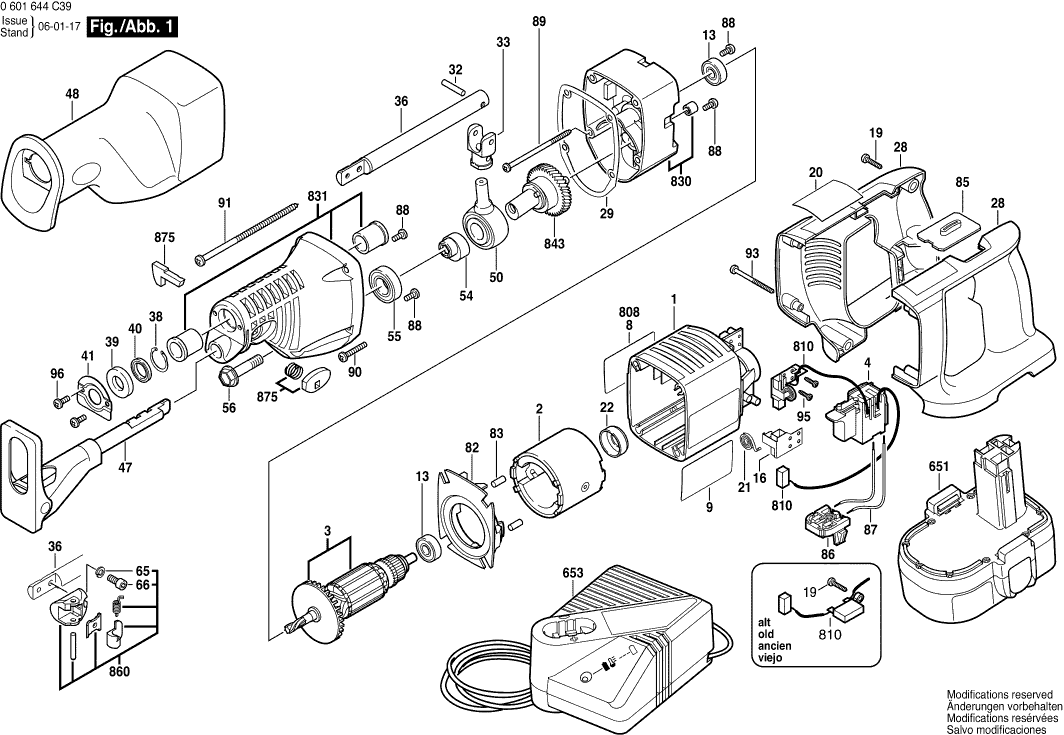

Technical drawing of model Bosch 3601F45F00 ( GSA18VE )
Spare parts list of model Bosch 3601F45F00 ( GSA18VE )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 2610995800 | 13.93 | 16.86 | |
| Pole housing 14;4-24V | ||||
| 2 | 2610942109 | 18.19 | 22.01 | |
| Armature | ||||
| 3 | 2610909089 | 55.25 | 66.85 | |
| On-Off Switch | ||||
| 4 | 2610995801 | 23.75 | 28.74 | |
| Nameplate | ||||
| 8 | 2610929209 | 2.71 | 3.28 | |
| Adhesive Label | ||||
| 9 | 2610929210 | 2.24 | 2.71 | |
| Ball Bearing | ||||
| 13 | 1619P01511 | 5.33 | 6.45 | |
| Brush Holder | ||||
| 16 | 2610995803 | 2.71 | 3.28 | |
| Screw ST3,9x19 | ||||
| 19 | 2610315386 | 1.18 | 1.43 | |
| Reference Plate | ||||
| 20 | 2610907680 | 2.71 | 3.28 | |
| Spiral Spring | ||||
| 21 | 1619P14306 | 2.71 | 3.28 | |
| Plain Washer | ||||
| 22 | 2610990845 | 1.18 | 1.43 | |
| Handle | ||||
| 28 | 2610917458 | 11.88 | 14.37 | |
| Sealing disk | ||||
| 29 | 2610995849 | 3.31 | 4.01 | |
| Straight Pin DIN 6325-4M6x24 | ||||
| 32 | 2917530101 | 2.24 | 2.71 | |
| Fork | ||||
| 33 | 2610995810 | 55.25 | 66.85 | |
| Connecting Rod | ||||
| 36 | 2610912954 | 33.45 | 40.47 | |
| Retaining snap ring | ||||
| 38 | 2610027867 | 3.31 | 4.01 | |
| Felt Washer SP 14,0 | ||||
| 39 | 2610030004 | 1.70 | 2.06 | |
| Shaft Seal | ||||
| 40 | 2610995815 | 7.58 | 9.17 | |
| Bearing cover | ||||
| 41 | 2610995816 | 6.54 | 7.91 | |
| Base Plate | ||||
| 47 | 2610995821 | 20.42 | 24.71 | |
| Insulating Cap | ||||
| 48 | 2610995826 | 36.85 | 44.59 | |
| Wobble Plate | ||||
| 50 | 2610995840 | 73.72 | 89.20 | |
| Sleeve | ||||
| 54 | 2610995827 | 6.54 | 7.91 | |
| groove ball bearing | ||||
| 55 | 2610015361 | 12.41 | 15.02 | |
| Bolt | ||||
| 56 | 2610995829 | 7.58 | 9.17 | |
| Spring Lock Washer DIN 127-B 5 | ||||
| 65 | 2916683006 | 1.18 | 1.43 | |
| Hex Socket Head Cap Screw M 5x10 | ||||
| 66 | 2910131152 | 1.70 | 2.06 | |
| Baffle | ||||
| 82 | 2610995833 | 5.83 | 7.05 | |
| Rubber Buffer | ||||
| 83 | 3602391503 | 1.70 | 2.06 | |
| Selective Switch | ||||
| 85 | 2610995835 | 5.83 | 7.05 | |
| Contact retainer | ||||
| 86 | 1609280362 | 29.75 | 36.00 | |
| Cable | ||||
| 87 | 2610907407 | 3.31 | 4.01 | |
| Screw | ||||
| 88 | 2610907504 | 1.70 | 2.06 | |
| Tapping Screw | ||||
| 89 | 2610991306 | 1.18 | 1.43 | |
| Tapping Screw | ||||
| 90 | 2610908547 | 1.94 | 2.35 | |
| Tapping Screw | ||||
| 91 | 2610995848 | 1.70 | 2.06 | |
| Screw | ||||
| 93 | 1619P01446 | 0.83 | 1.00 | |
| Tapping Screw | ||||
| 95 | 2610914920 | 0.83 | 1.00 | |
| Screw | ||||
| 96 | 1619P01491 | 0.83 | 1.00 | |
| Slide-In Battery Pack 18V, 2,6Ah, NiMH, HD | ||||
| 651 | 2607335687 | 233.78 | 282.87 | |
| Fast Charger EU 230/7,2-24V, 30 MIN. | ||||
| 653 | 2607225027 | 113.29 | 137.08 | |
| Fast Charger GB 230/7,2-24V, 30 MIN. | ||||
| 653 | 2607225029 | 101.94 | 123.35 | |
| Carbon-Brush Set | ||||
| 810 | 2610918932 | 11.88 | 14.37 | |
| Pivot Plate | ||||
| 830 | 2610995813 | 73.72 | 89.20 | |
| Front Housing | ||||
| 831 | 2610995814 | 73.72 | 89.20 | |
| Helical Gear | ||||
| 843 | 2610995817 | 130.32 | 157.69 | |
| Blade Holder | ||||
| 860 | 2610995820 | 13.93 | 16.86 | |
| Sealing plate | ||||
| 875 | 2610995825 | 6.54 | 7.91 | |
