Here you will find all available parts and drawings of the 'Bosch 3601FA5000 ( GSA18V-LIC )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

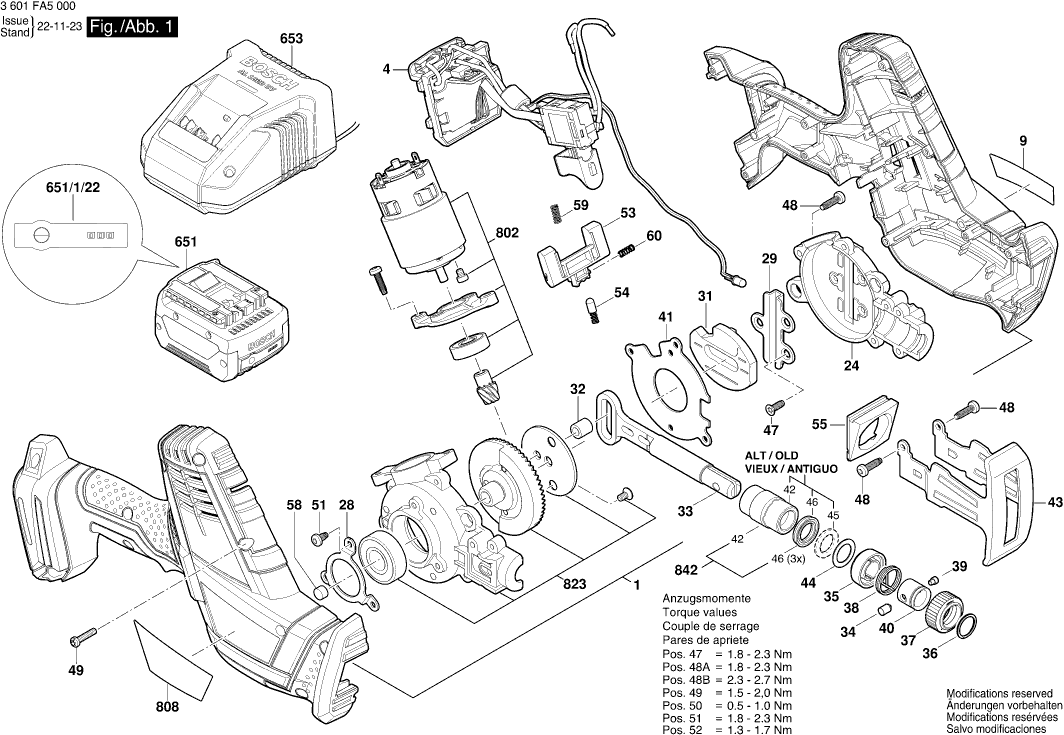

Technical drawing of model Bosch 3601FA5000 ( GSA18V-LIC )
Spare parts list of model Bosch 3601FA5000 ( GSA18V-LIC )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Set | ||||
| 1 | 1619P11962 | 13.93 | 16.86 | |
| Electronic Module | ||||
| 4 | 1619P11964 | 67.25 | 81.37 | |
| Manufacturer's nameplate GSA 18 V-LI C | ||||
| 9 | 1619P11966 | 1.94 | 2.35 | |
| Gear Cover | ||||
| 24 | 1619P11970 | 9.53 | 11.53 | |
| Retaining Plate | ||||
| 28 | 1619P11974 | 1.70 | 2.06 | |
| Guide Plate | ||||
| 29 | 1619P11975 | 2.71 | 3.28 | |
| Counter Weight | ||||
| 31 | 1619P11978 | 5.33 | 6.45 | |
| Bushing | ||||
| 32 | 1619P11981 | 1.94 | 2.35 | |
| Spindle | ||||
| 33 | 1619P11982 | 15.71 | 19.01 | |
| Detent Pin | ||||
| 34 | 1619P08603 | 1.94 | 2.35 | |
| Spring Retainer | ||||
| 35 | 1619P08611 | 1.18 | 1.43 | |
| Retaining ring | ||||
| 36 | 1619P08612 | 1.18 | 1.43 | |
| Clamp ring | ||||
| 37 | 1619P08613 | 7.58 | 9.17 | |
| Torsion Spring | ||||
| 38 | 1619P08614 | 0.83 | 1.00 | |
| Retaining Pin | ||||
| 39 | 1619P13440 | 1.94 | 2.35 | |
| Control Sleeve | ||||
| 40 | 1619P08616 | 5.33 | 6.45 | |
| Plate | ||||
| 41 | 1619P11983 | 2.24 | 2.71 | |
| Supporting foot | ||||
| 43 | 1600A00Y06 | 5.33 | 6.45 | |
| Protective Washer | ||||
| 44 | 2610908804 | 1.94 | 2.35 | |
| Thread-Forming Screw | ||||
| 47 | 1619P07062 | 0.83 | 1.00 | |
| Thread-forming tap. Screw | ||||
| 48 | 1619P08621 | 0.83 | 1.00 | |
| Screw ST3,9x19 | ||||
| 49 | 2610315386 | 1.18 | 1.43 | |
| Thread-forming tap. Screw | ||||
| 51 | 2914492405 | 0.83 | 1.00 | |
| Locking Level | ||||
| 53 | 1619P11991 | 1.18 | 1.43 | |
| Ratchet Cap | ||||
| 54 | 1619P11992 | 1.18 | 1.43 | |
| Protective Cover | ||||
| 55 | 1619P11993 | 1.18 | 1.43 | |
| Felt Seal | ||||
| 58 | 1619P08627 | 0.83 | 1.00 | |
| Compression Spring | ||||
| 59 | 2604690055 | 0.83 | 1.00 | |
| Compression Spring | ||||
| 60 | 1619P13420 | 0.83 | 1.00 | |
| Battery Pack GBA 18V 4.0Ah ProCore SCM | ||||
| 651 | 1607A350AN | 113.29 | 137.08 | |
| Battery Pack BBS MR, 18V, 5,0 Ah 48 S | ||||
| 651 | 2607337069 | 101.94 | 123.35 | |
| Battery Pack BBS MR 18V, 4,0Ah, 47 S | ||||
| 651 | 2607336815 | 91.56 | 110.79 | |
| Battery Pack GBA 18V 4.0Ah | ||||
| 651 | 1607A350M0 | 91.56 | 110.79 | |
| Sticker | ||||
| 651/1/22 | 2601115537 | 1.18 | 1.43 | |
| Fast Charger EU GAL 18V-40, 230V/10,8V – 18V | ||||
| 652 | 2607226251 | 67.25 | 81.37 | |
| Fast Charger CN GAL 18V-40 | ||||
| 652 | 2607226267 | 60.65 | 73.39 | |
| Charger GB 230/10,8-18V, 30 42 S | ||||
| 653 | 2607225923 | 113.29 | 137.08 | |
| Charger EU GAL 1880 CV 230/14,4-18V | ||||
| 653 | 2607225921 | 101.94 | 123.35 | |
| Fast Charger EU GAL 18V-40, 230V/10,8V – 18V | ||||
| 653 | 2607226251 | 67.25 | 81.37 | |
| Fast Charger CN GAL 18V-40 | ||||
| 653 | 2607226267 | 60.65 | 73.39 | |
| Charger EU 230/14,4-18V, 30 40 S | ||||
| 653 | 2607225321 | 55.25 | 66.85 | |
| Motor assembly | ||||
| 802 | 1619P12758 | 60.65 | 73.39 | |
| Nameplate | ||||
| 808 | 1619P32377 | 1.94 | 2.35 | |
| Nameplate | ||||
| 808 | 1619P31807 | 1.60 | 1.94 | |
| Gear Box | ||||
| 823 | 1619P12760 | 44.82 | 54.23 | |
| Seal Parts Set | ||||
| 842 | 1619P13781 | 6.54 | 7.91 | |
